Industrial / ECO43A 4 pole

ECO43 A

4 pole generator

The ECO43 range has many product features designed into the alternator.
Self-regulation is obtained through a digital electronic regulator that is fed by an auxiliary winding.
We guarantee an almost constant supply from the generator – under any possible operating condition.
A rotating inductor is fitted with a damper cage.
The windings have a 2/3 pitch in order to reduce the harmonic content of voltage.
The entire series is manufactured according to, and complies with, the most common specifications such as CEI 2-3, IEC 34-1, EN 60034-1, VDE 0530, BS 4999-5000, CAN/ CSA-C22.2 No14-95- No100-95.



General Characteristics

ECO43A 4 pole
Power range (kVA)820 - 1700
Winding codeT0405P3
Pole4
RegulatorDER-1/A
Overspeed (RPM)2250
Protection classIP23
Altitude (m)0-1000
ModelsPower range (kVA)
3 phase
ECO43 1S4 A820 - 985
ECO43 2S4 A930 - 1116
ECO43 1M4 A1025 - 1250
ECO43 2M4 A1150 - 1400
ECO43 2L4 A1300 - 1560
ECO43 VL4 A1400 - 1700


Technical documents

DDS - Dynamic Data Support

Create your own and personalized technical datasheet according to your specifications.

Get it here

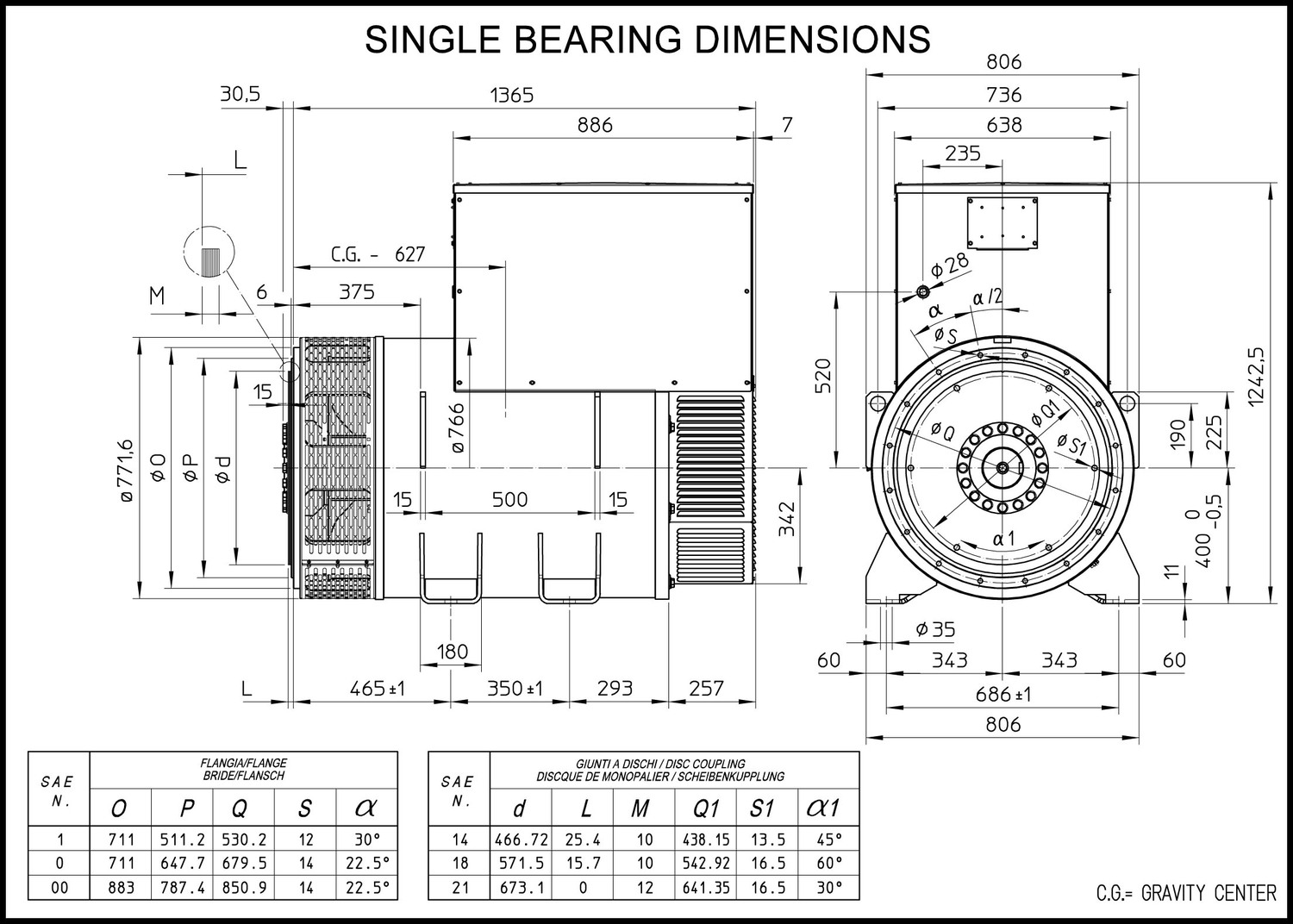

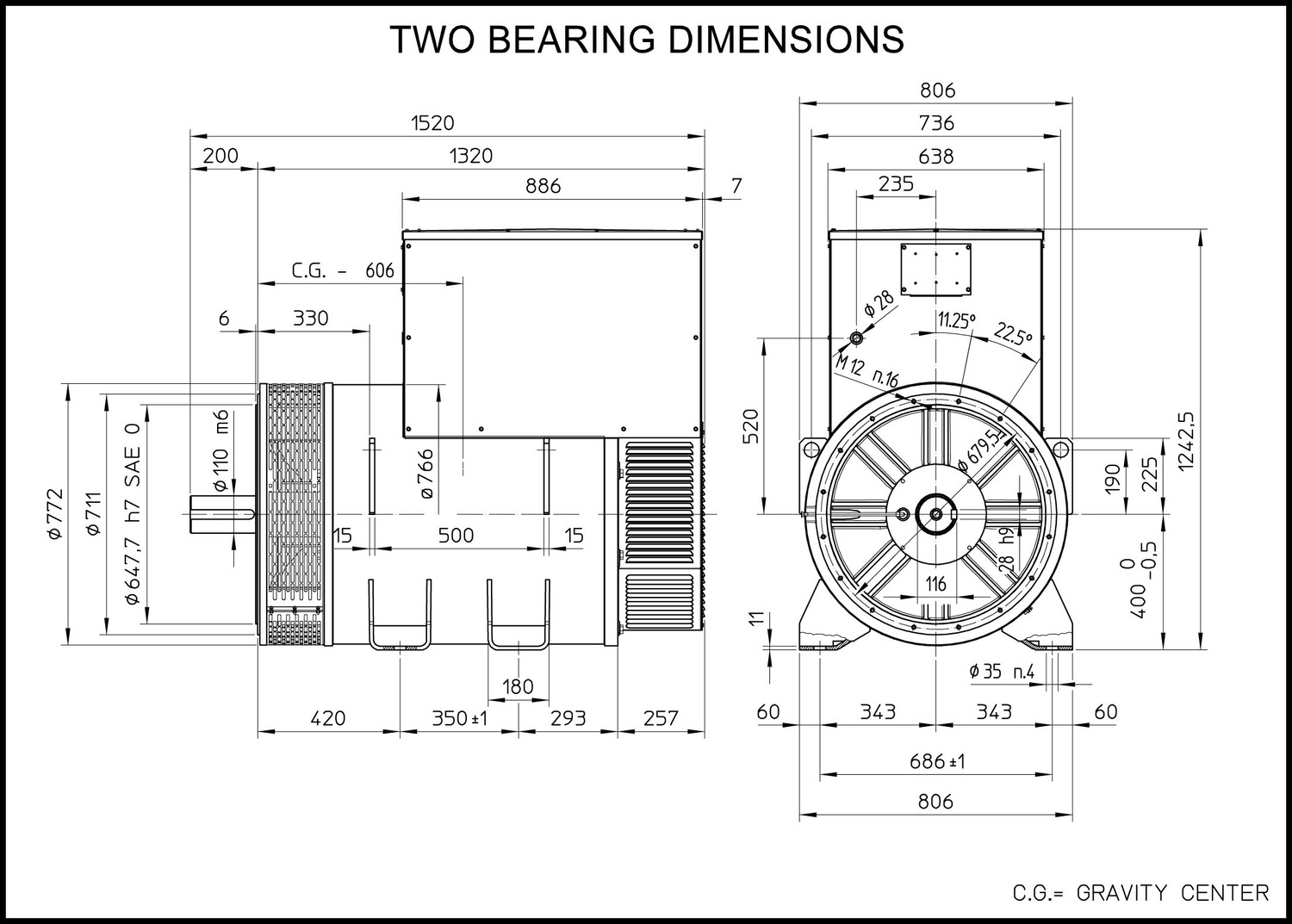

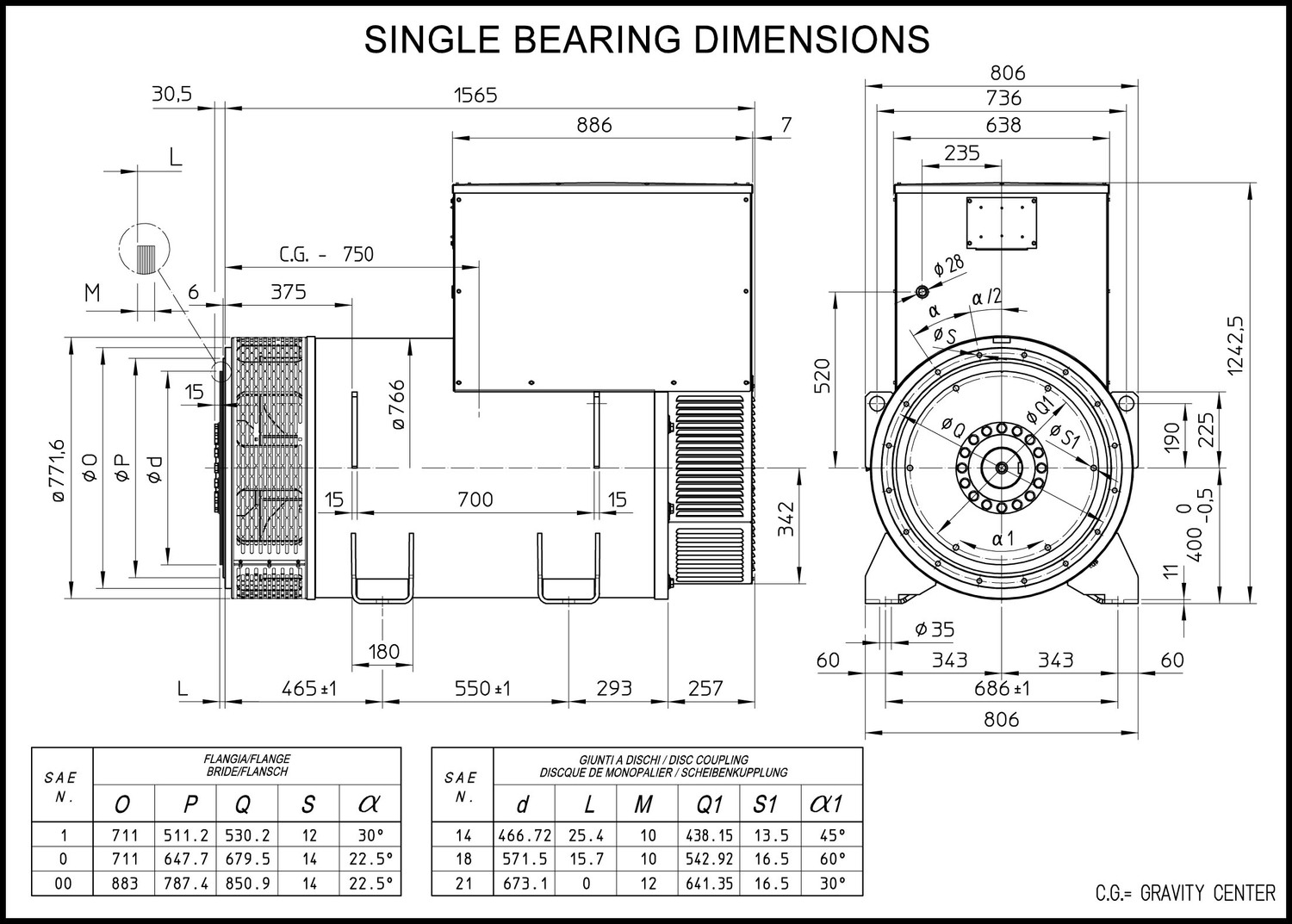

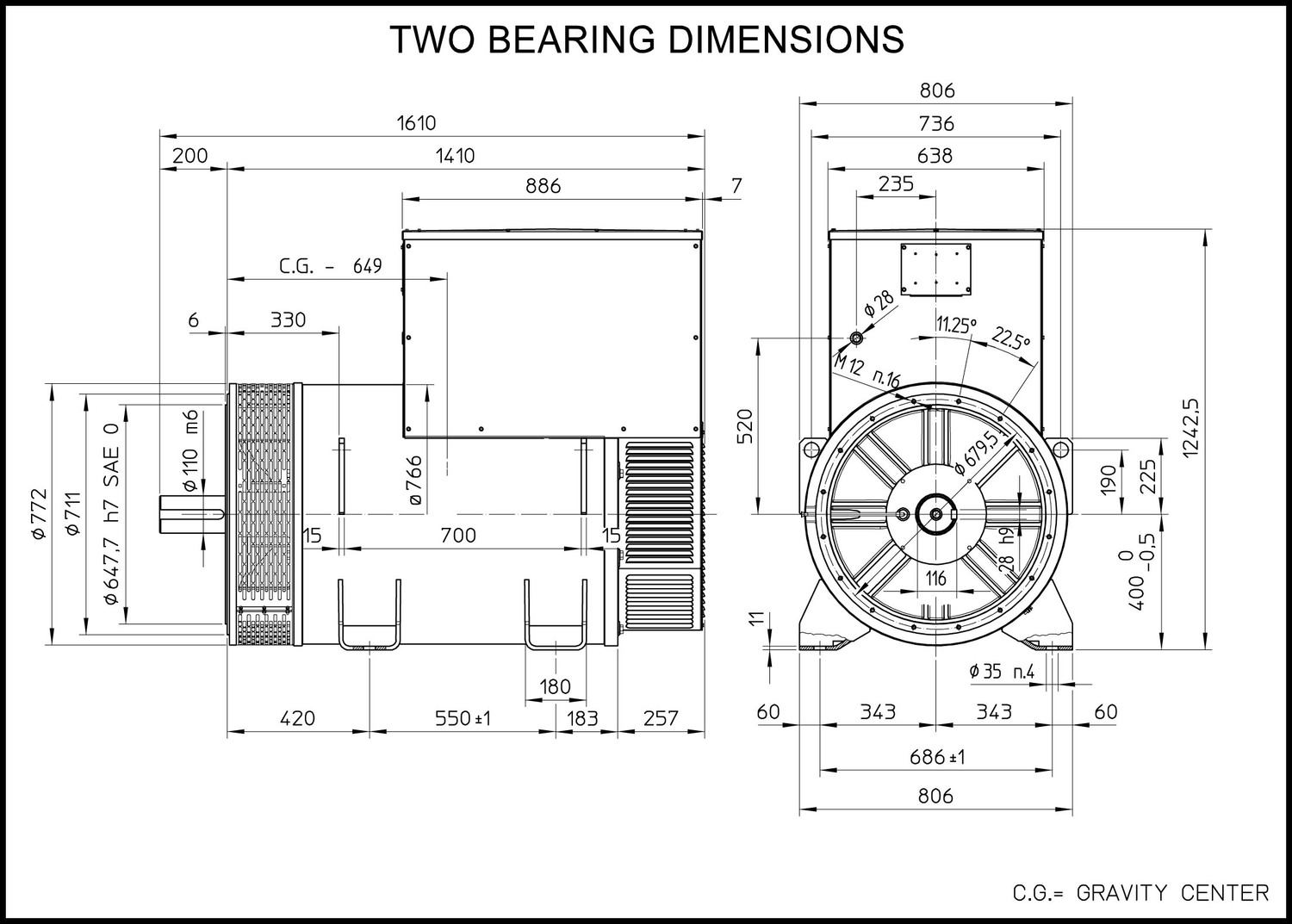

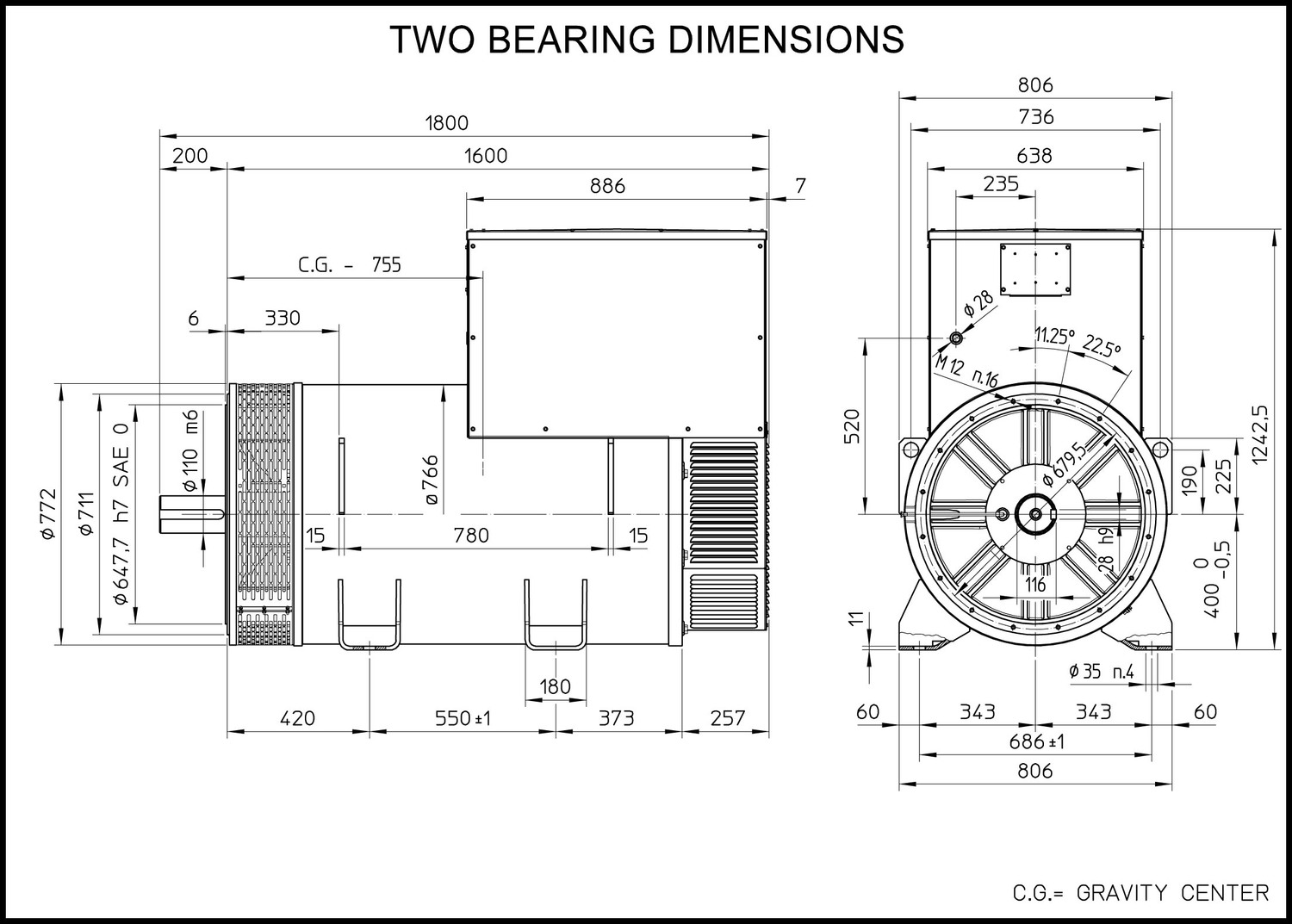

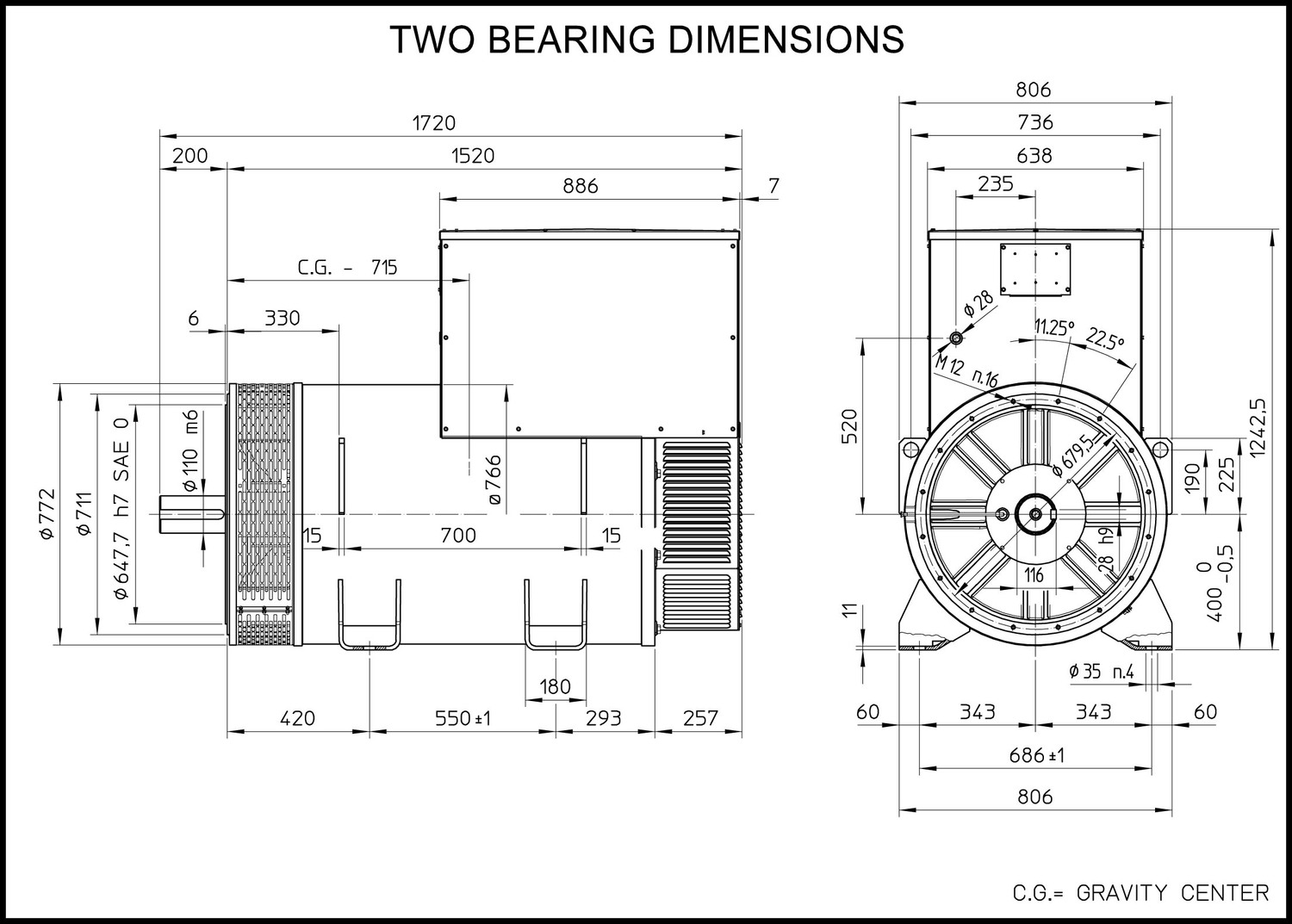

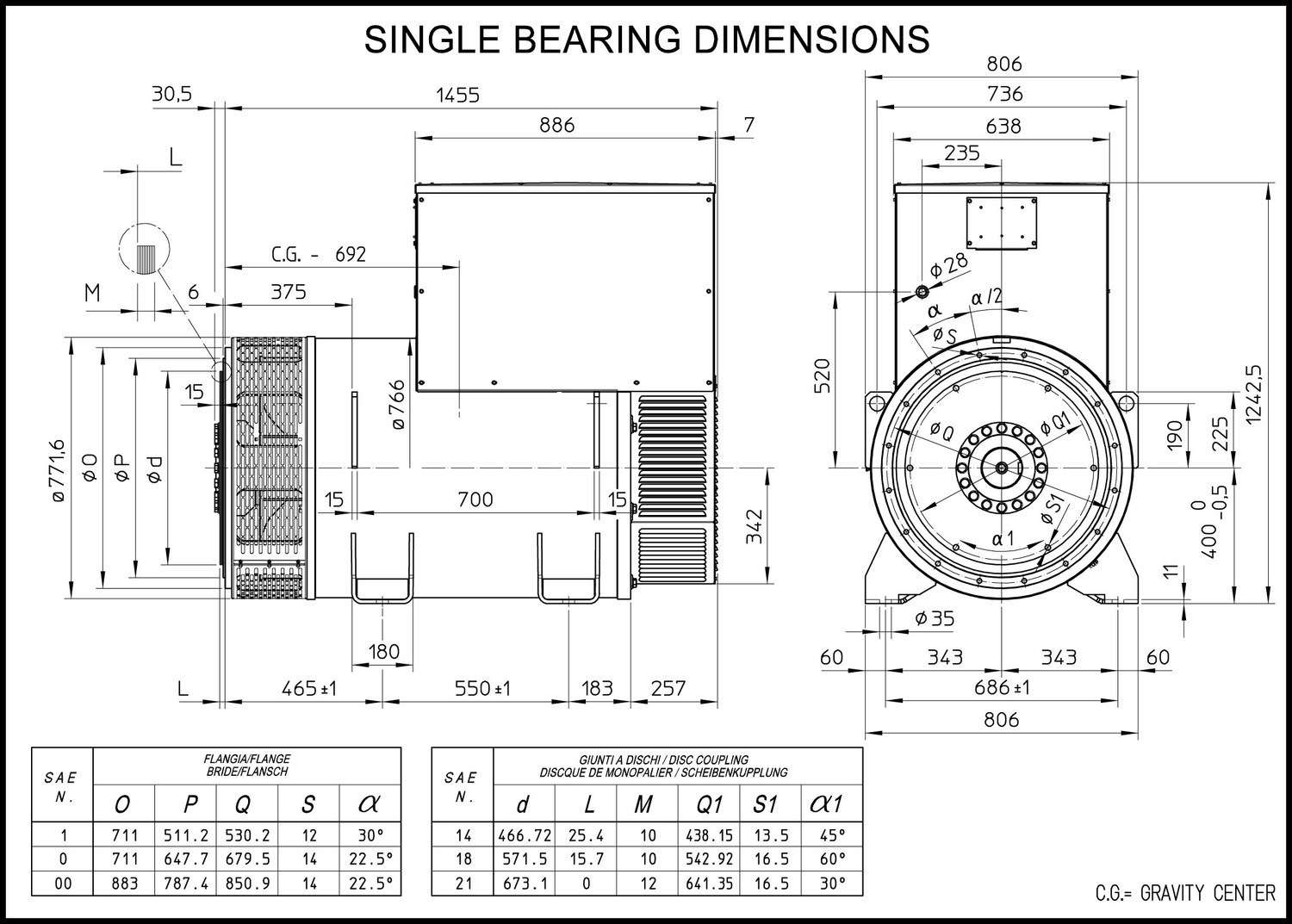

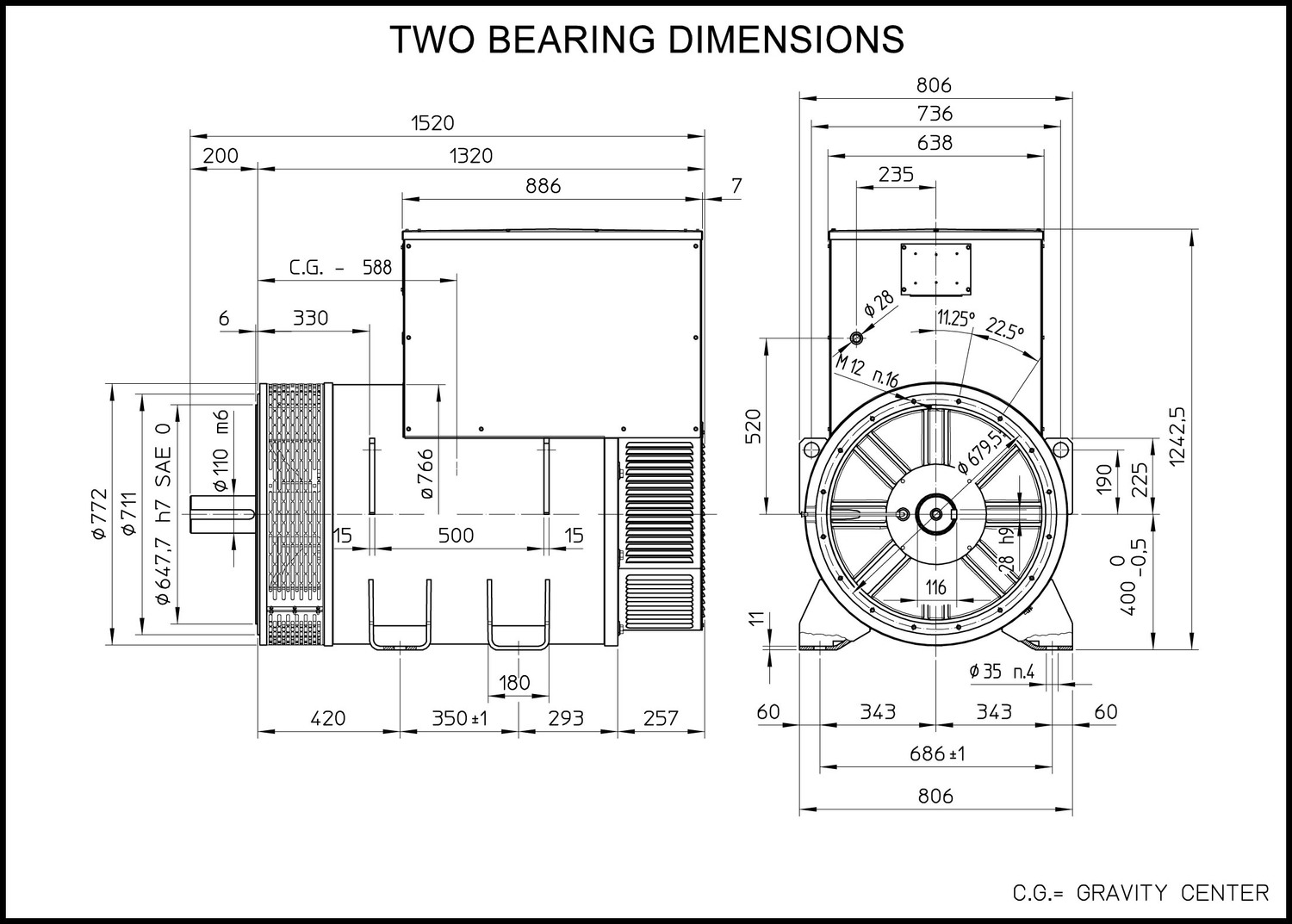

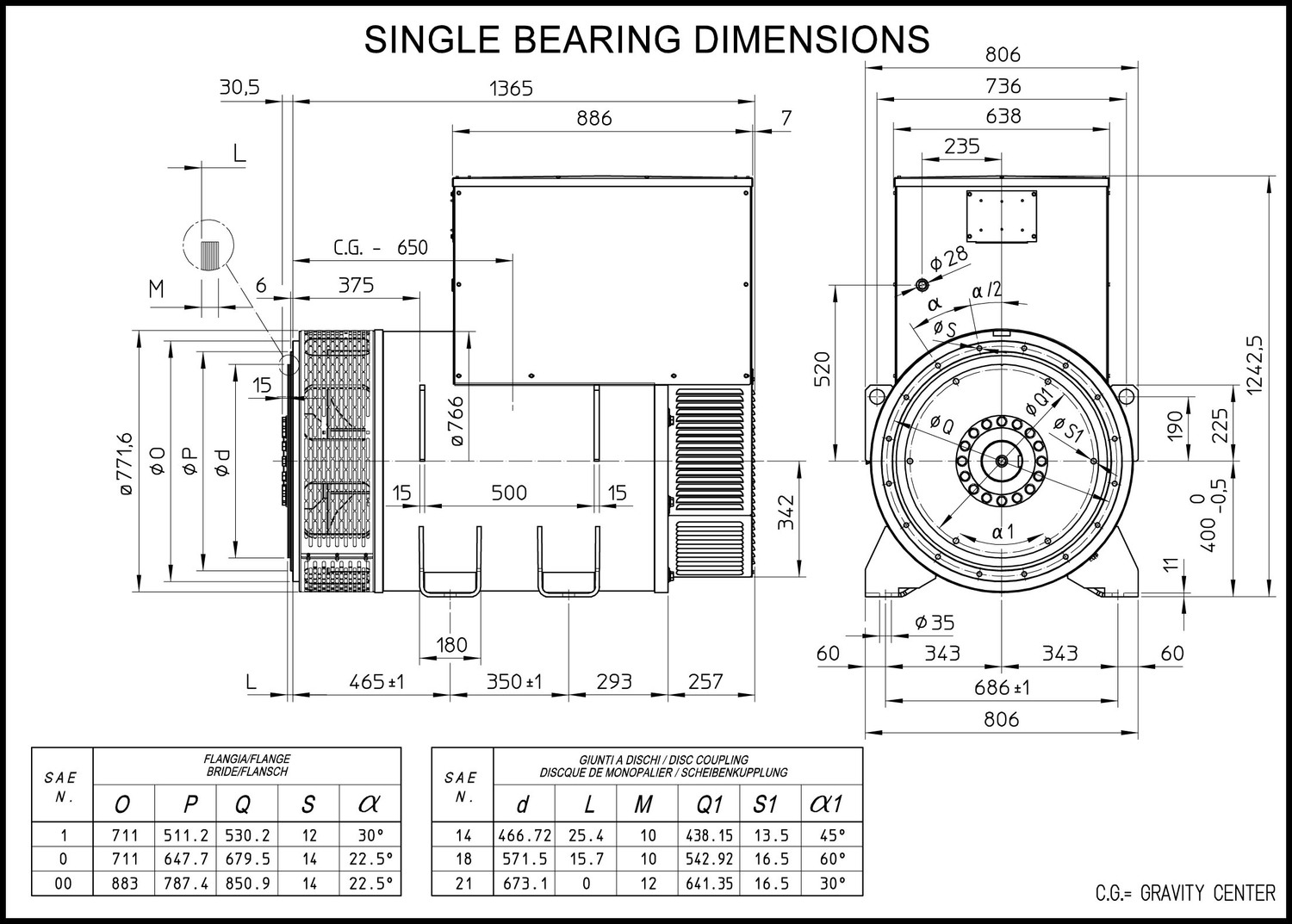

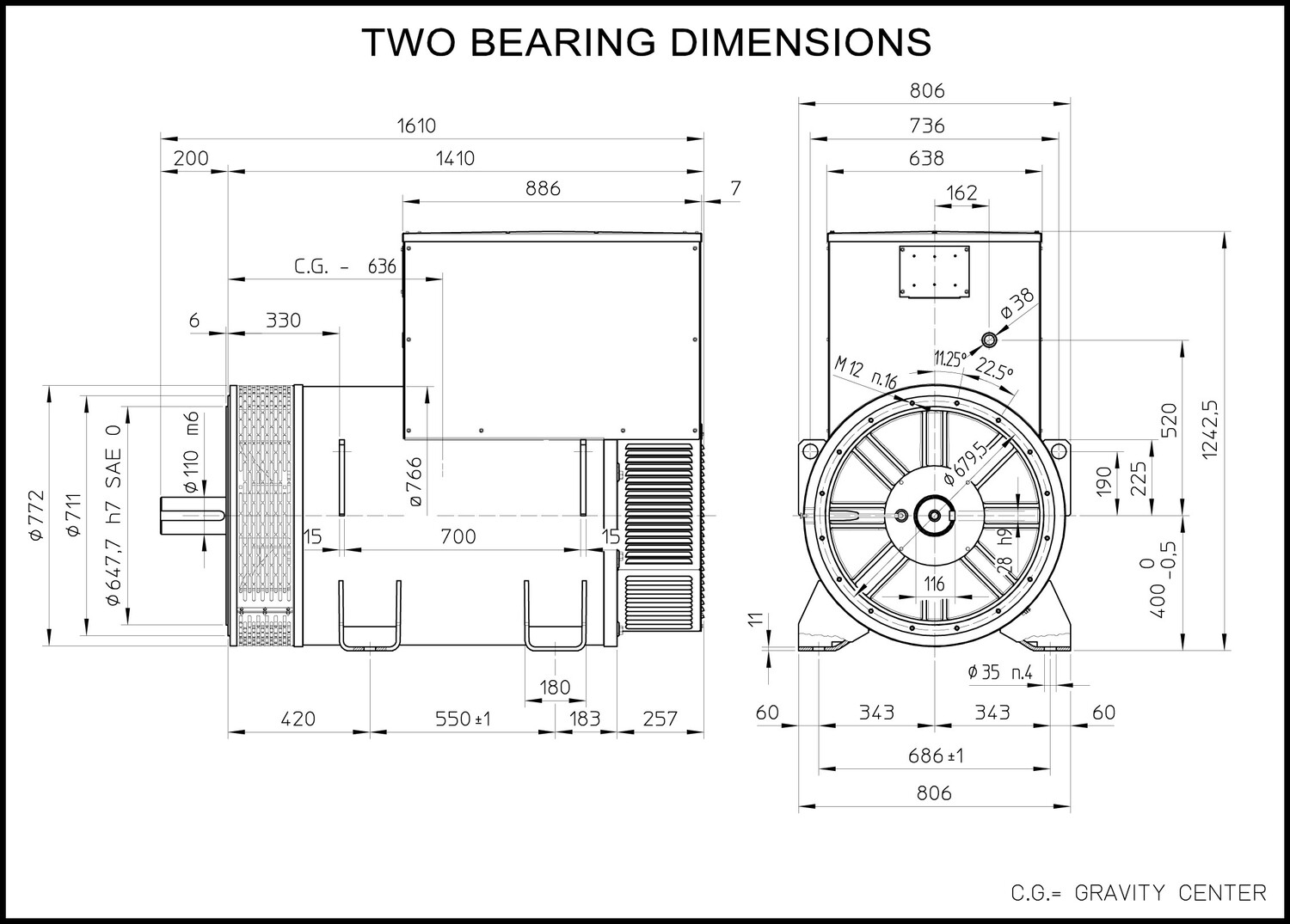

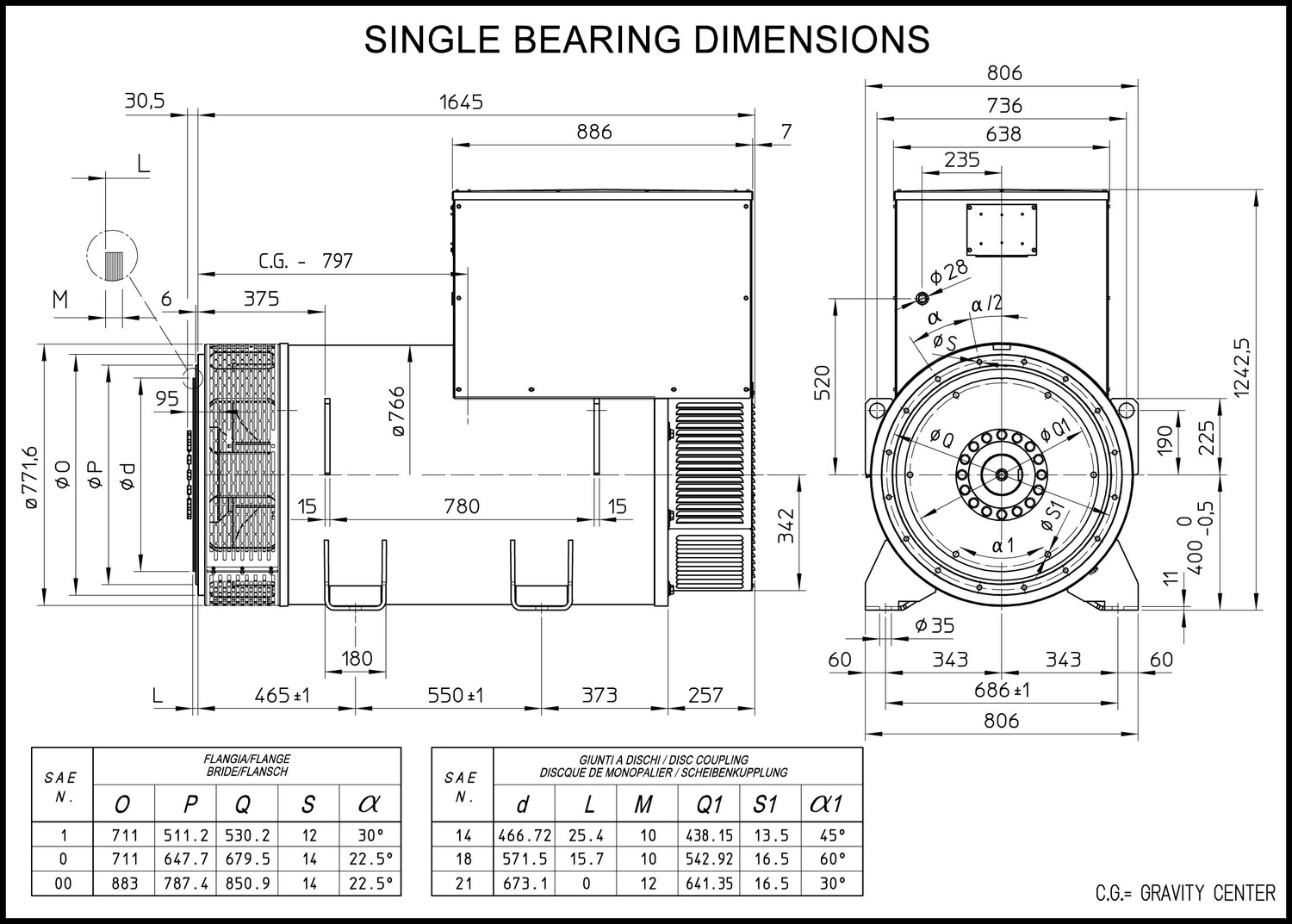

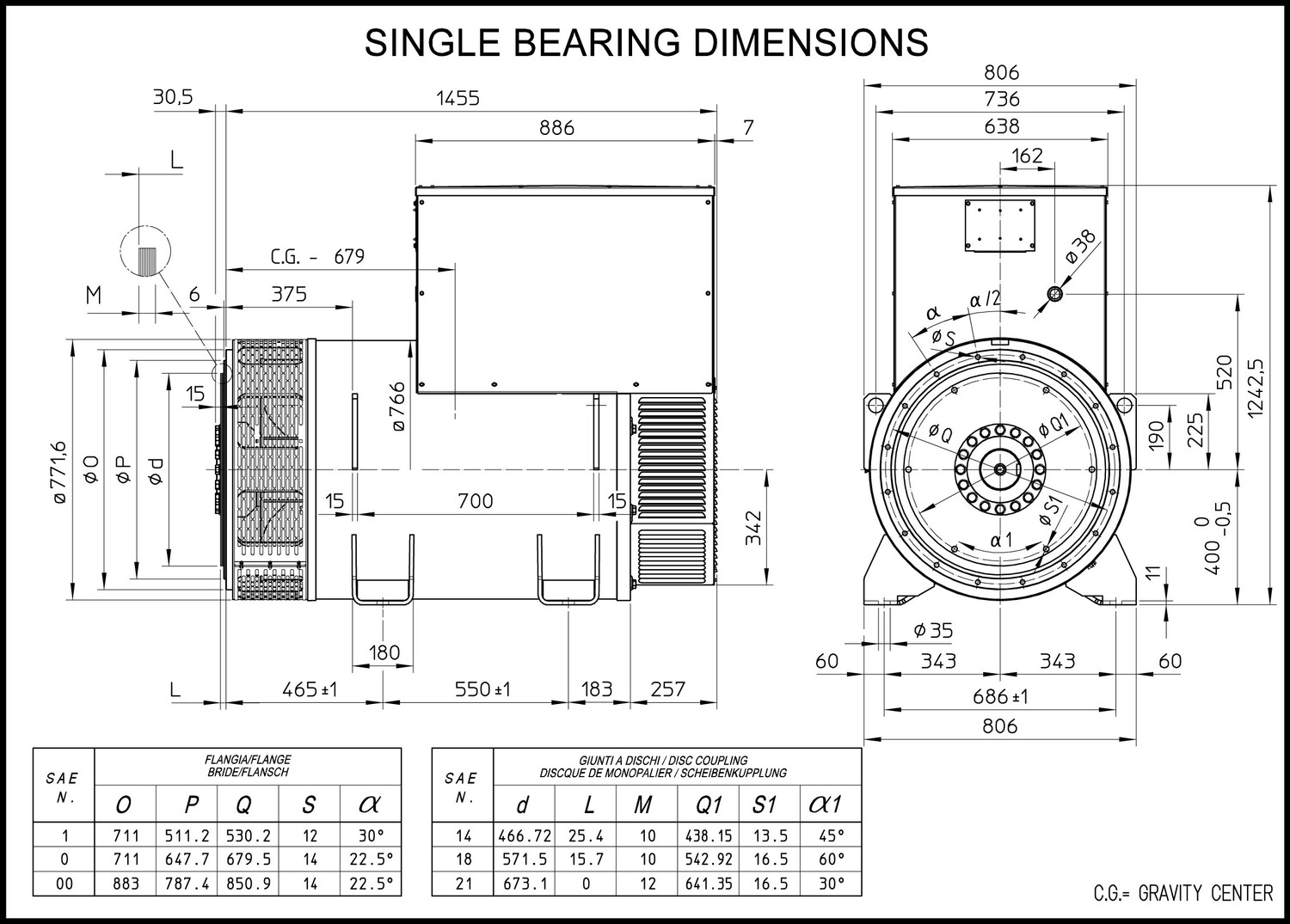

Overall Dimensions Drawings

ECO43 1S4 A

ECO43 2S4 A

ECO43 1M4 A

ECO43 2M4 A

ECO43 2L4 A

ECO43 VL4 A
