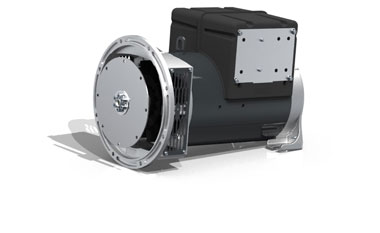

ECP3 |
 |
4 pole generator
1 phase dedicated
The ECP3 C-Type range has many product features designed into the alternator.
C-Type alternators make the most of energy conversion to produce the maximum power to size ratio.
C-Type is now one of the simplest alternators to assemble, integrate, configure and maintain with OEM equipment.
Our aim was to deliver maximum power from the smallest, lightest and strongest alternators and our designers have lavished the C-Type with much more flexibility.
The entire series is manufactured according to, and complies with, the most common specifications such as CEI 2-3, IEC 34-1, EN 60034-1, VDE 0530, BS 4999-5000, CAN/ CSA-C22.2 No14-95- No100-95.
General Characteristics
| ECP3C 4 pole (1phase Dedicated) | |
|---|---|
| Power range (kVA) | 5 - 13.5 |
| Winding code | S4246B3 |
| Pole | 4 |
| Regulator | DSR |
| Overspeed (RPM) | 2250 |
| Protection class | IP23 |
| Altitude (m) | 0-1000 |
| Models | Power range (kVA) |
|---|---|
| 1 phase | |
| ECP3 1S4 C | 5 - 6 |
| ECP3 2S4 C | 6 - 7.5 |
| ECP3 1L4 C | 8.5 - 10 |
| ECP3 2L4 C | 10 - 12 |
| ECP3 3L4 C | 11 - 13.5 |
Technical documents
DDS - Dynamic Data Support
Create your own and personalized technical datasheet according to your specifications.

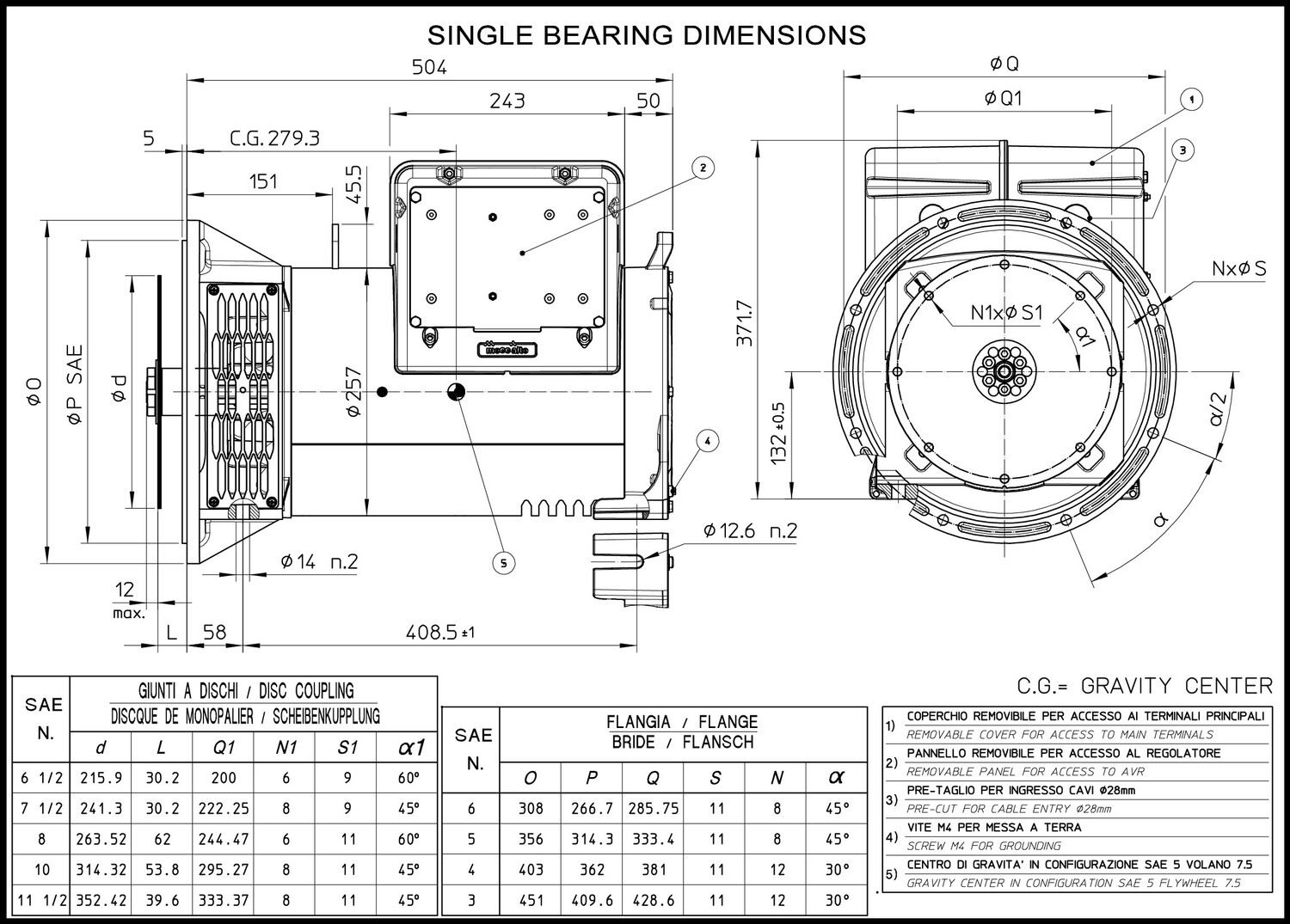

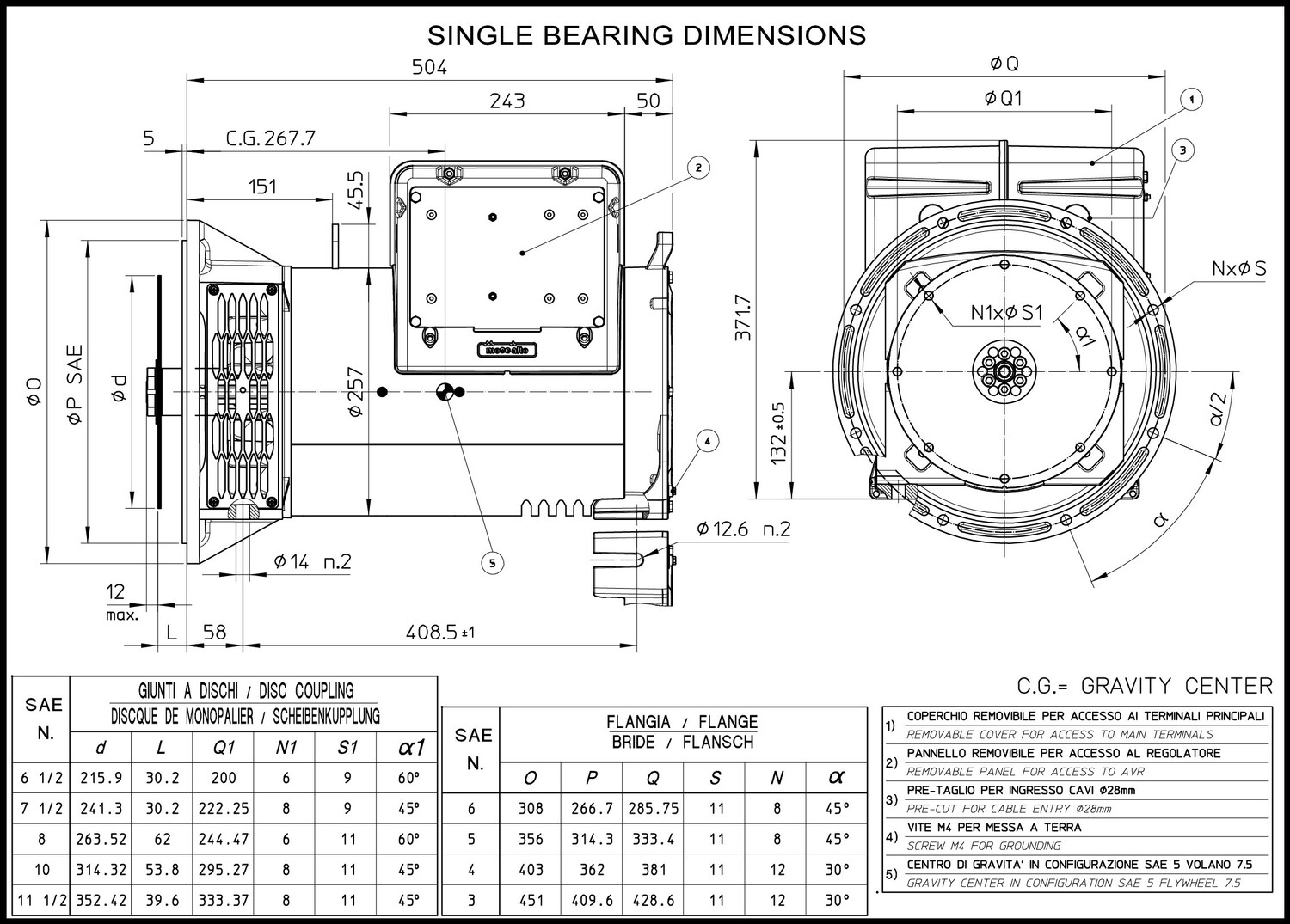

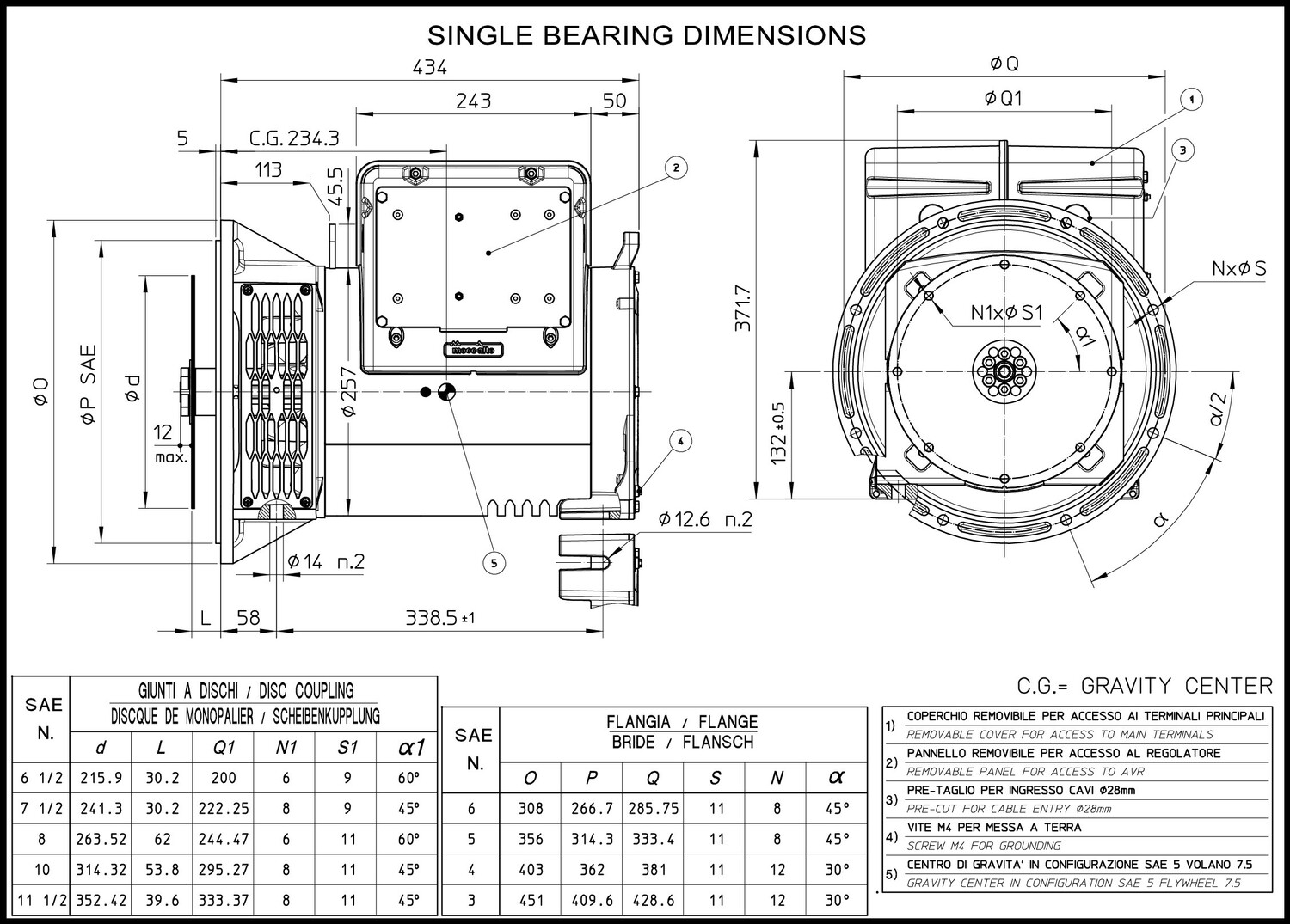

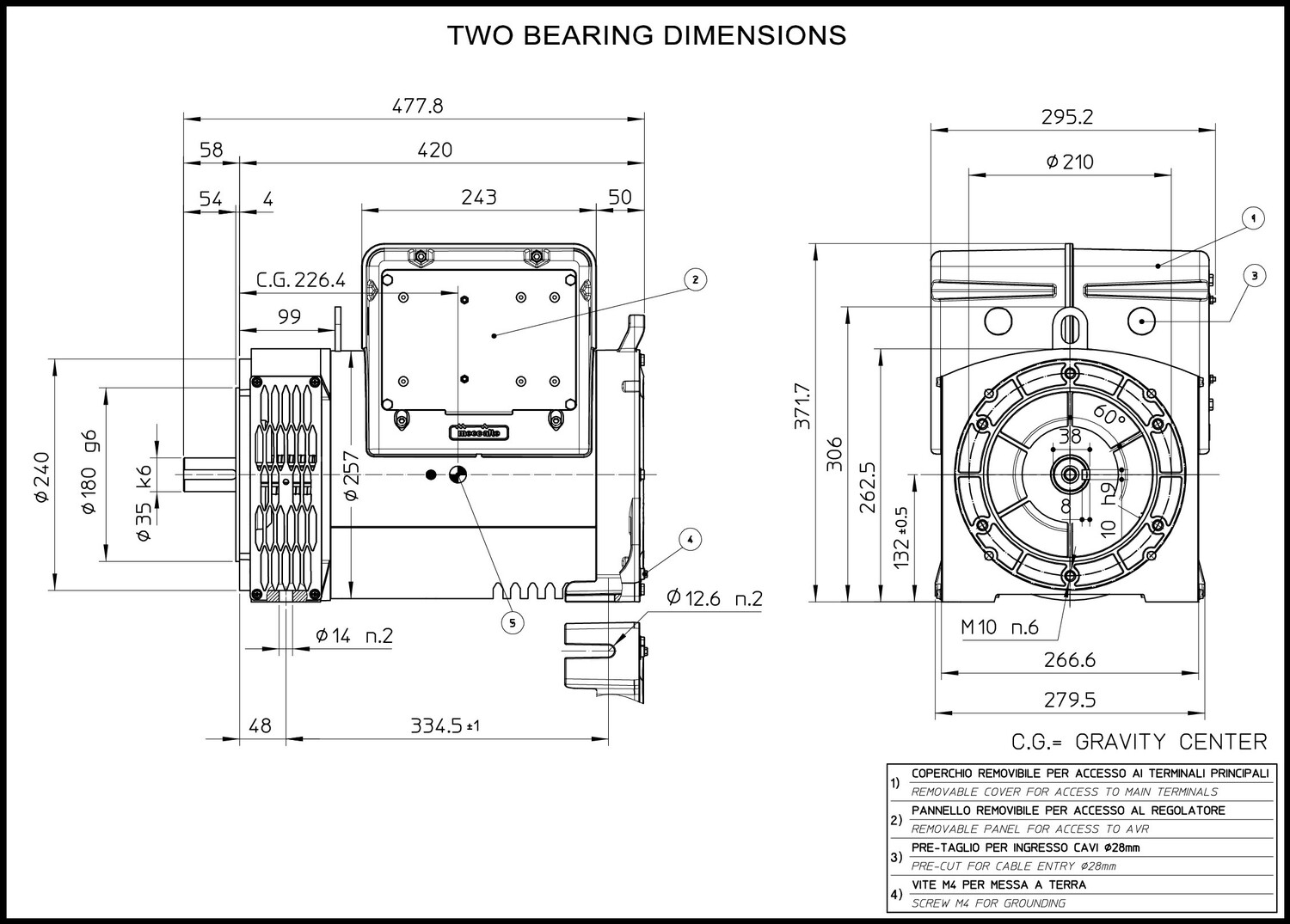

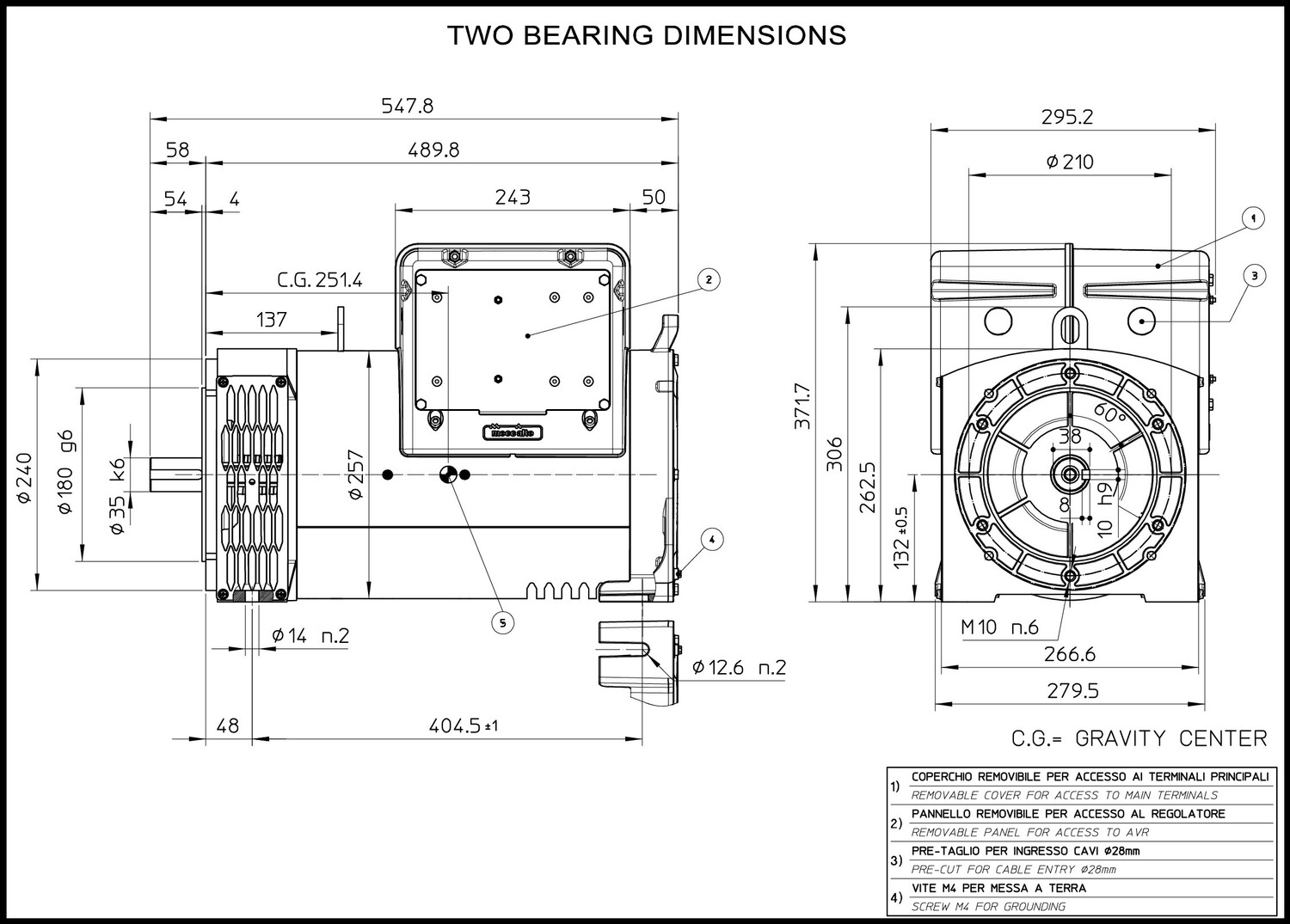

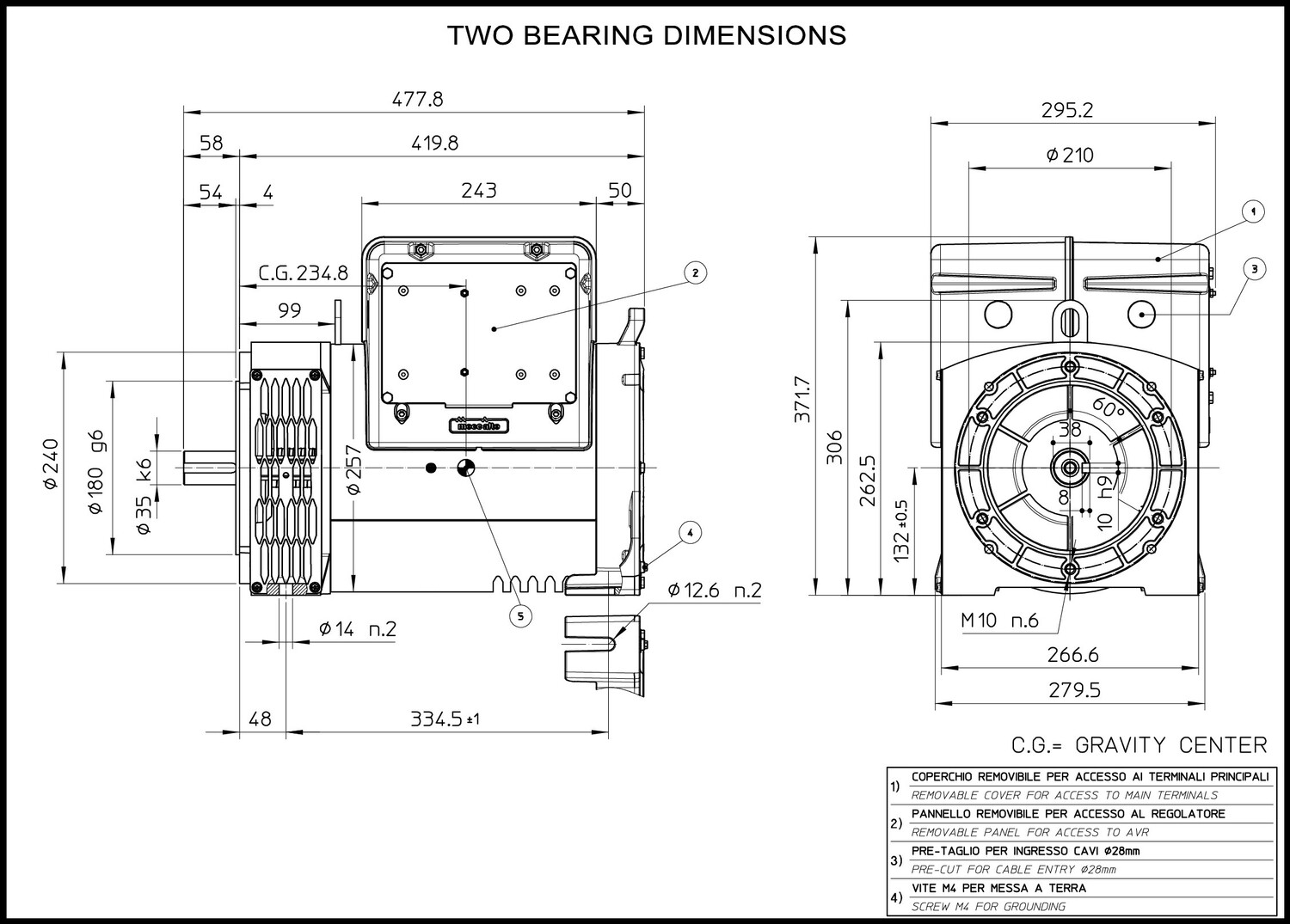

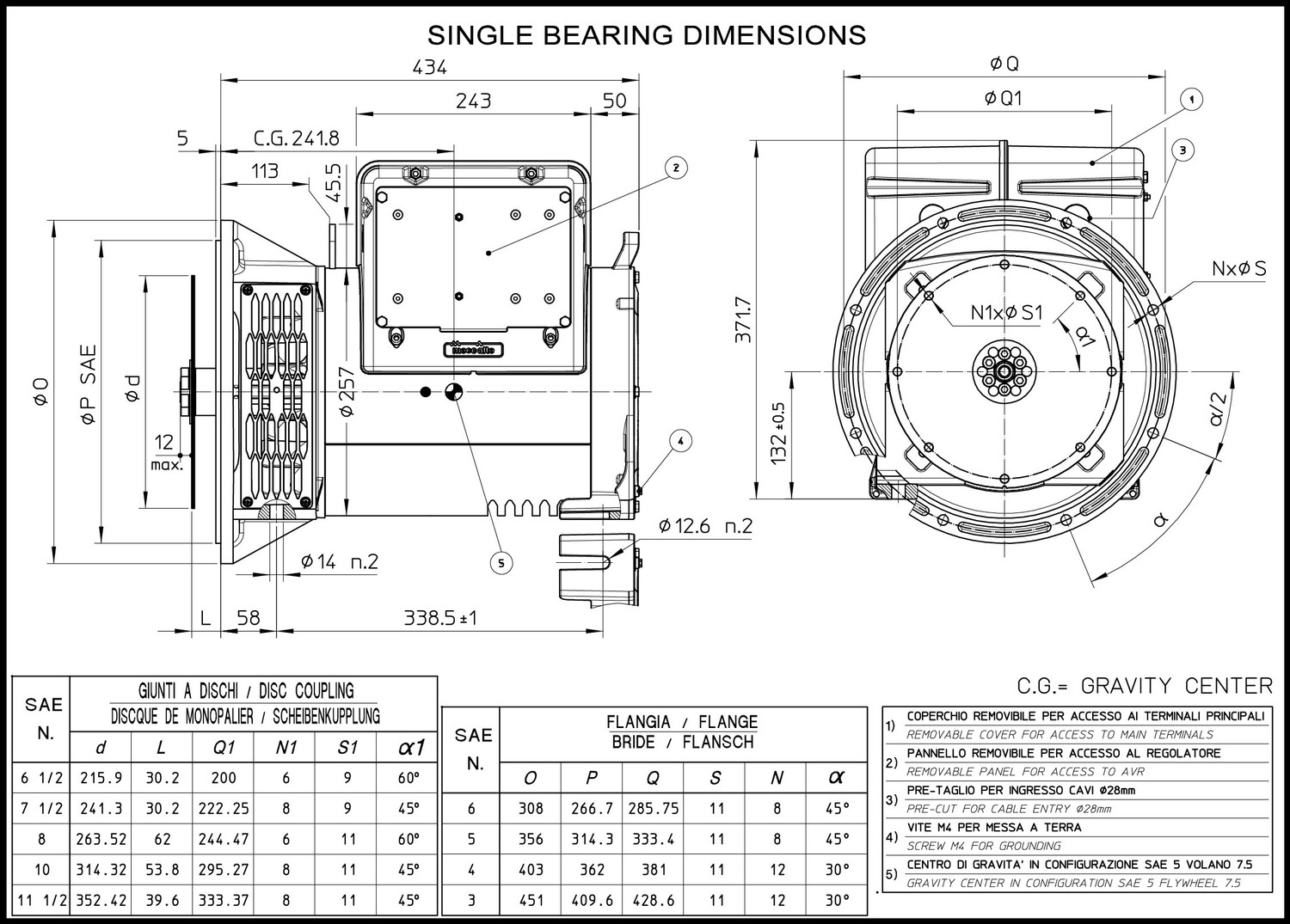

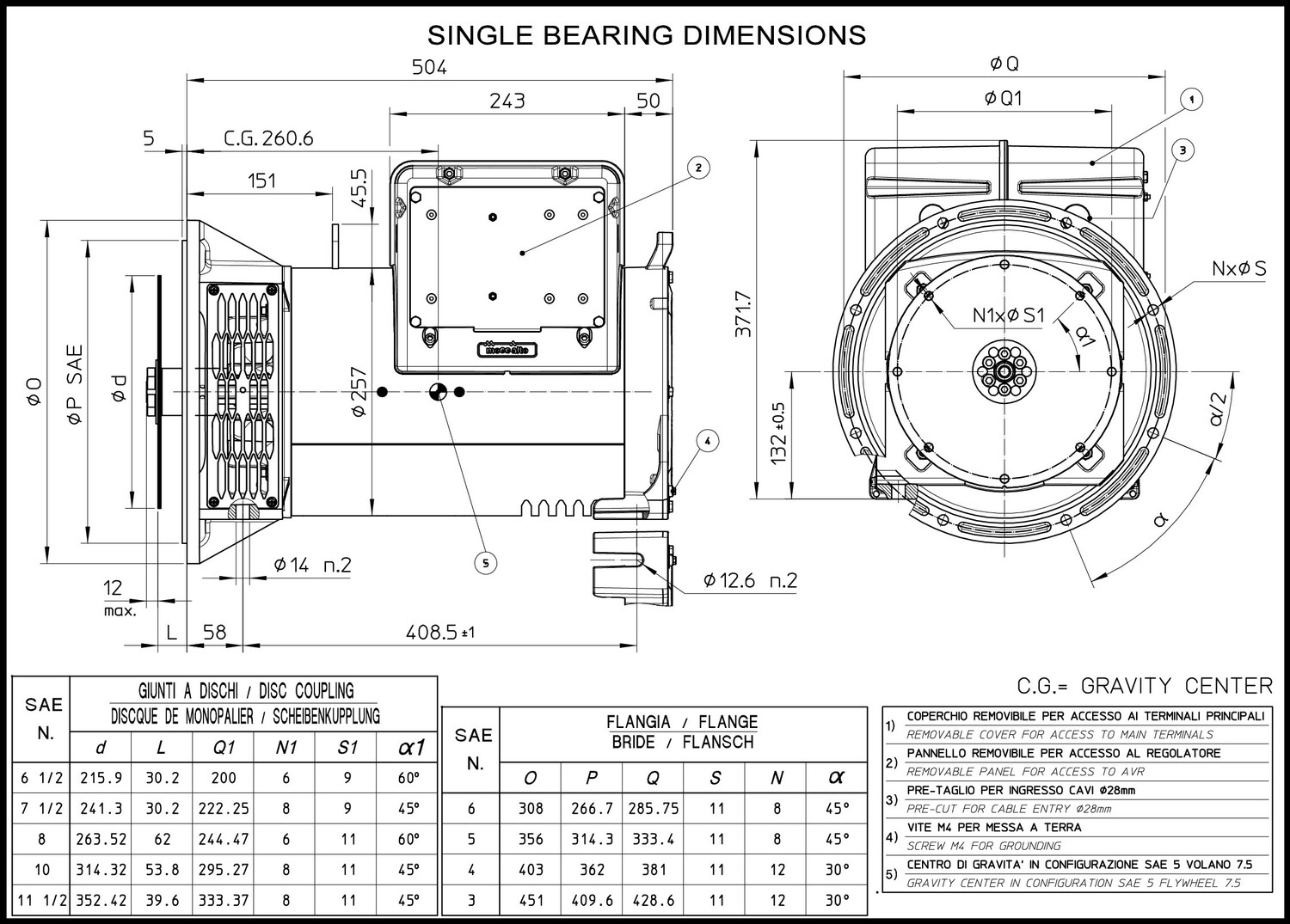

Overall Dimensions Drawings
ECP3 1S4 C
ECP3 2S4 C
ECP3 1L4 C
ECP3 2L4 C
ECP3 3L4 C
