Industrial / ECP34C 4 pole (1phase Dedicated)

ECP34

4 pole generator
1 phase dedicated

The ECP34 C-Type range has many product features designed into the alternator.
C-Type alternators make the most of energy conversion to produce the maximum power to size ratio.
C-Type is now one of the simplest alternators to assemble, integrate, configure and maintain with OEM equipment.
Our aim was to deliver maximum power from the smallest, lightest and strongest alternators and our designers have lavished the C-Type with much more flexibility.
The entire series is manufactured according to, and complies with, the most common specifications such as CEI 2-3, IEC 34-1, EN 60034-1, VDE 0530, BS 4999-5000, CAN/ CSA-C22.2 No14-95- No100-95.

Find out more   Accessories

General Characteristics

ECP34C 4 pole (1phase Dedicated)
Power range (kVA)65 - 112
Winding codeS4235B3
Pole4
RegulatorDSR
Overspeed (RPM)2250
Protection classIP23
Altitude (m)0-1000
ModelsPower range (kVA)
1 phase
ECP34 1S4 C65 - 78
ECP34 2S4 C70 - 84
ECP34 1M4 C78 - 96
ECP34 2M4 C80 - 98
ECP34 1L4 C83 - 100
ECP34 2L4 C91.5 - 112


Technical documents

DDS - Dynamic Data Support

Create your own and personalized technical datasheet according to your specifications.

Get it here

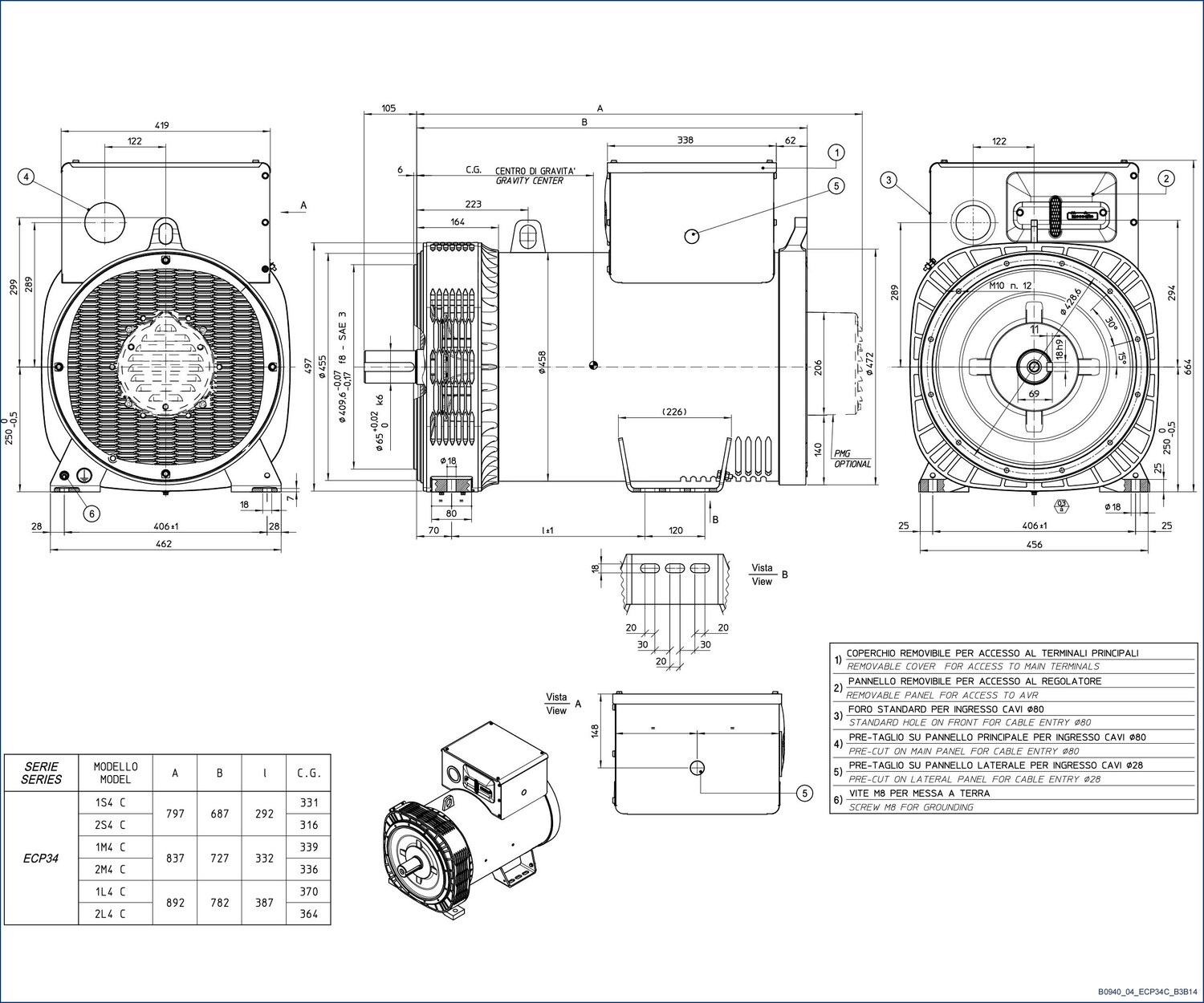

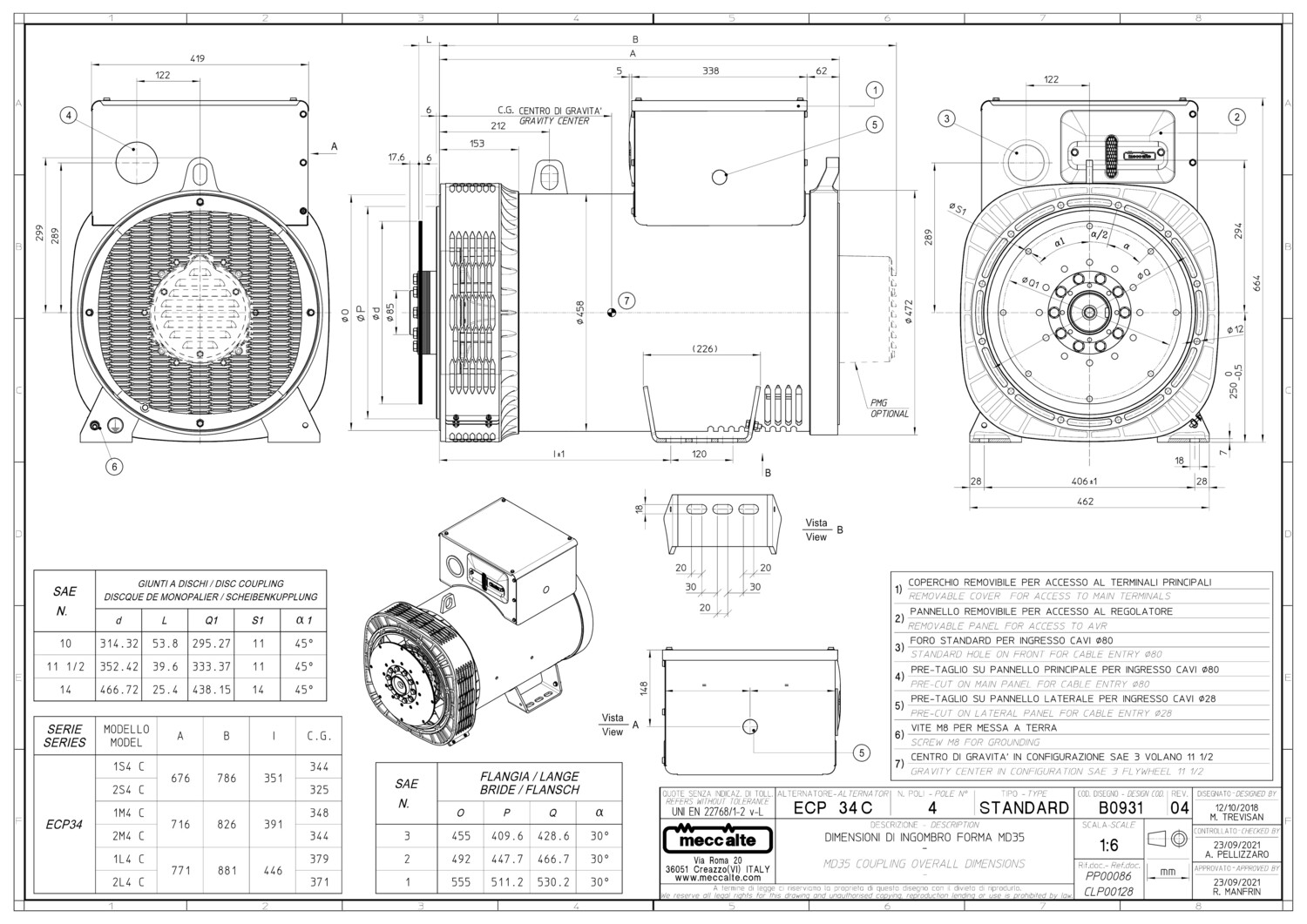

Overall Dimensions Drawings

ECP34 1S4 C

ECP34 2S4 C

ECP34 1M4 C

ECP34 2M4 C

ECP34 1L4 C

ECP34 2L4 C
