Industrial / ECP28C 4 pole


4 pole generator

The ECP28 C-Type range has many product features designed into the alternator.
C-Type alternators make the most of energy conversion to produce the maximum power to size ratio.
C-Type is now one of the simplest alternators to assemble, integrate, configure and maintain with OEM equipment.
Our aim was to deliver maximum power from the smallest, lightest and strongest alternators and our designers have lavished the C-Type with much more flexibility.
The entire series is manufactured according to, and complies with, the most common specifications such as CEI 2-3, IEC 34-1, EN 60034-1, VDE 0530, BS 4999-5000, CAN/ CSA-C22.2 No14-95- No100-95.

Find out more   Accessories

General Characteristics

ECP28C 4 pole
Power range (kVA)4.5 - 36
Winding codeT0405S3
Overspeed (RPM)2250
Protection classIP23
Altitude (m)0-1000
ModelsPower range (kVA)
1 phase3 phase
ECP28 1VS4 C4.5 - 57.5 - 9
ECP28 2VS4 C6.5 - 710 - 12
ECP28 1S4 C8 - 8.512.5 - 15
ECP28 2S4 C10 - 10.515 - 18
ECP28 3S4 C11.5 - 1217.5 - 21
ECP28 M4 C13.5 - 1420 - 24
ECP28 L4 C16.5 - 1725 - 30
ECP28 VL4 C20.5 - 2130 - 36

Technical documents

DDS - Dynamic Data Support

Create your own and personalized technical datasheet according to your specifications.

Get it here

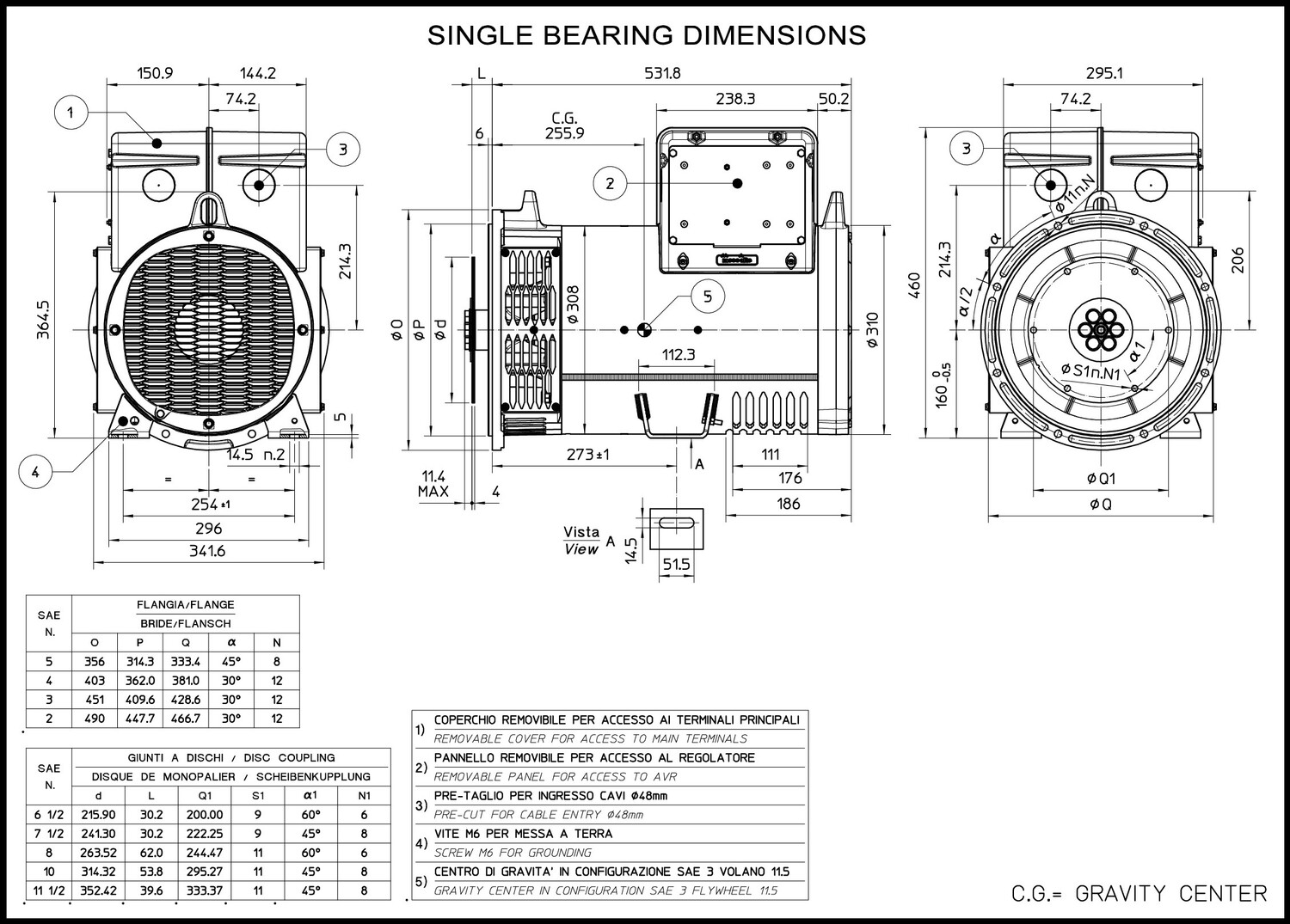

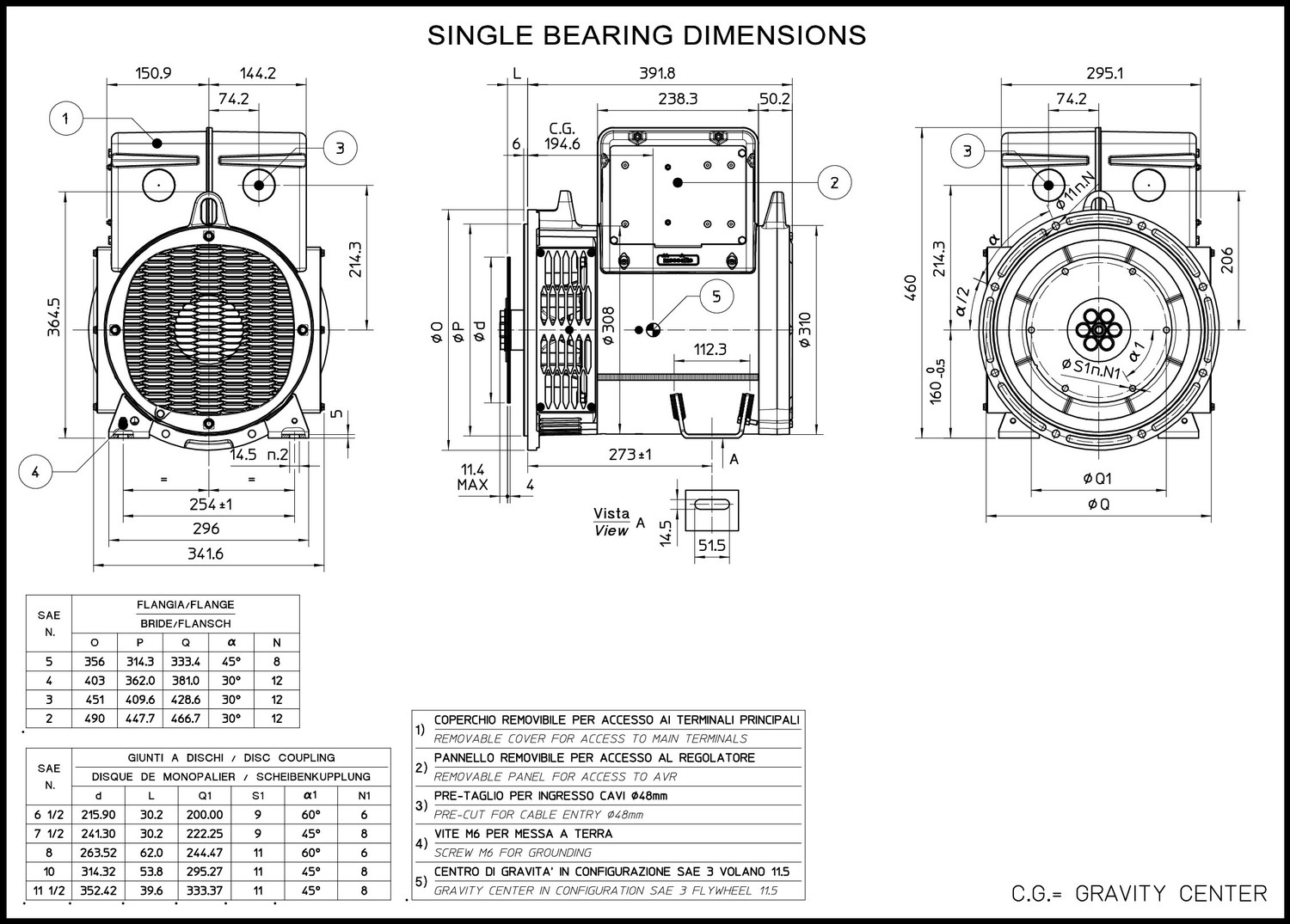

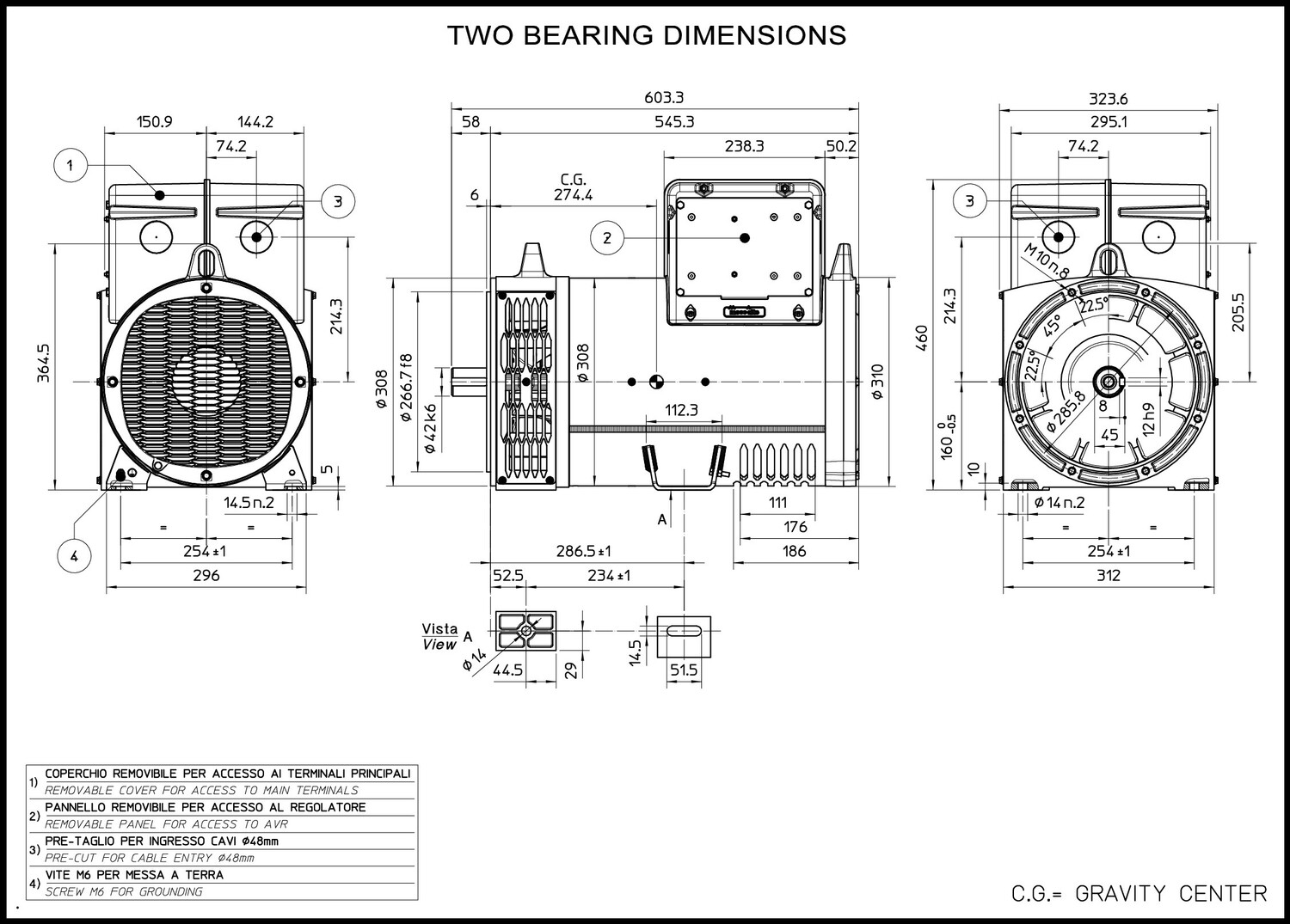

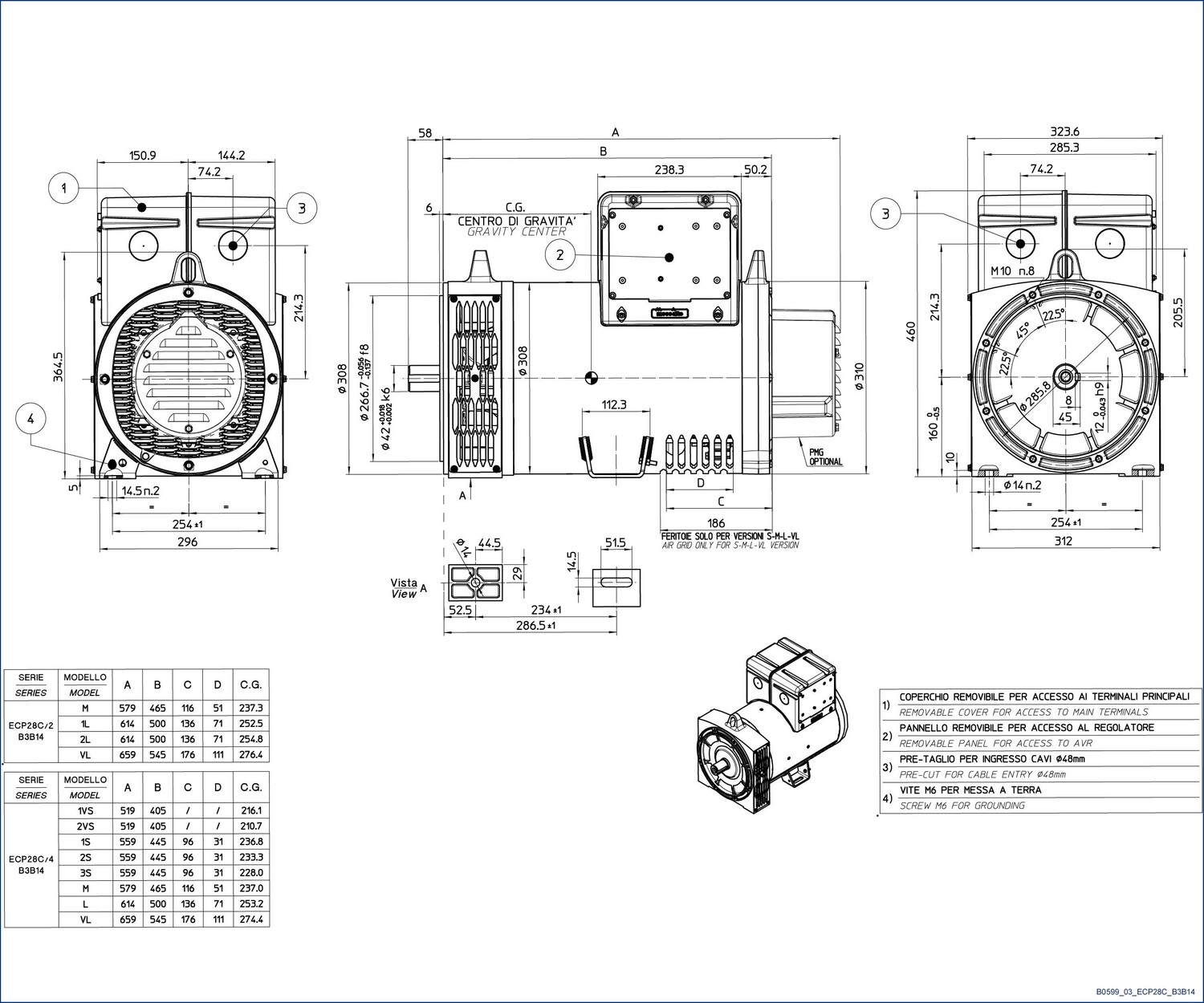

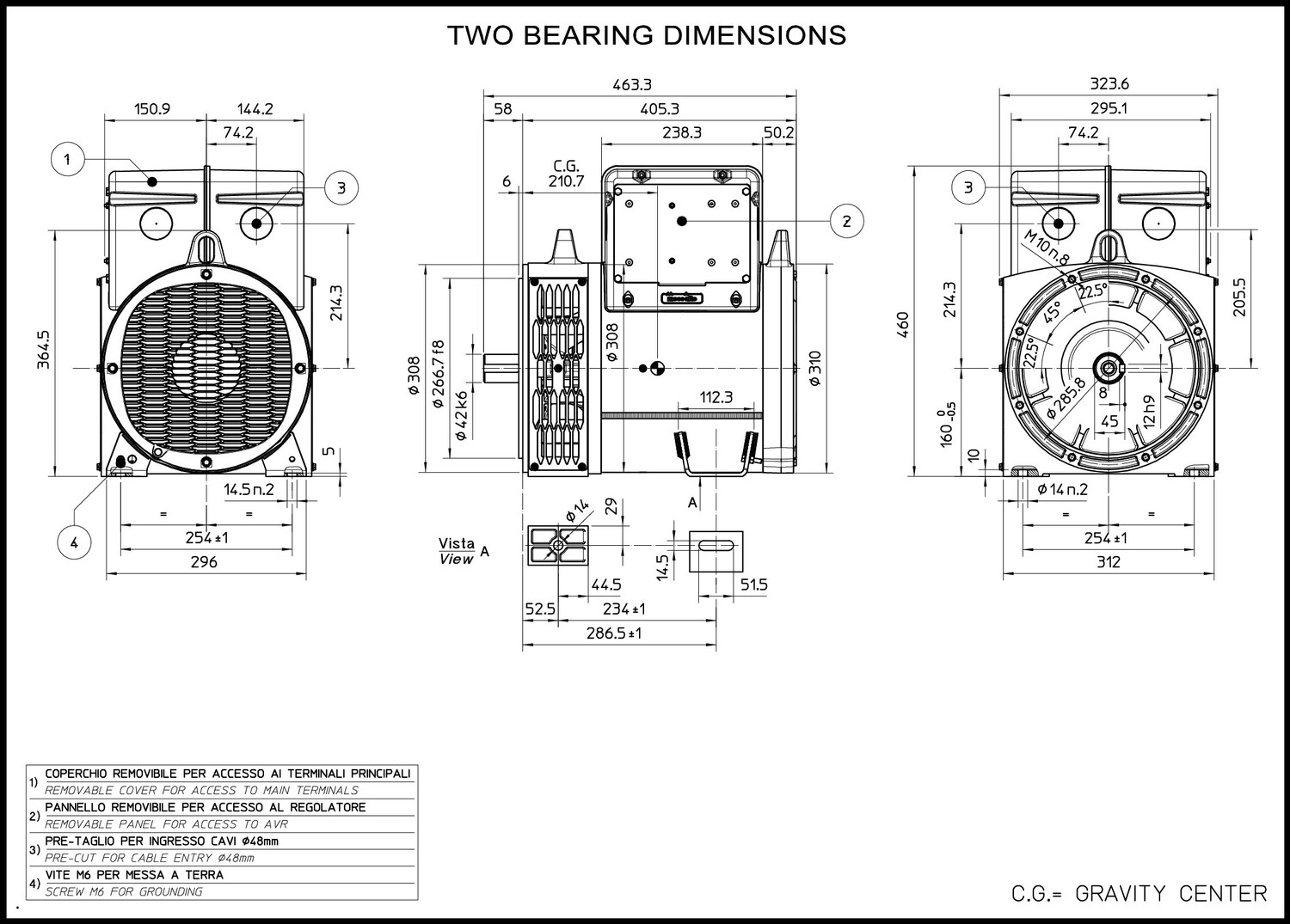

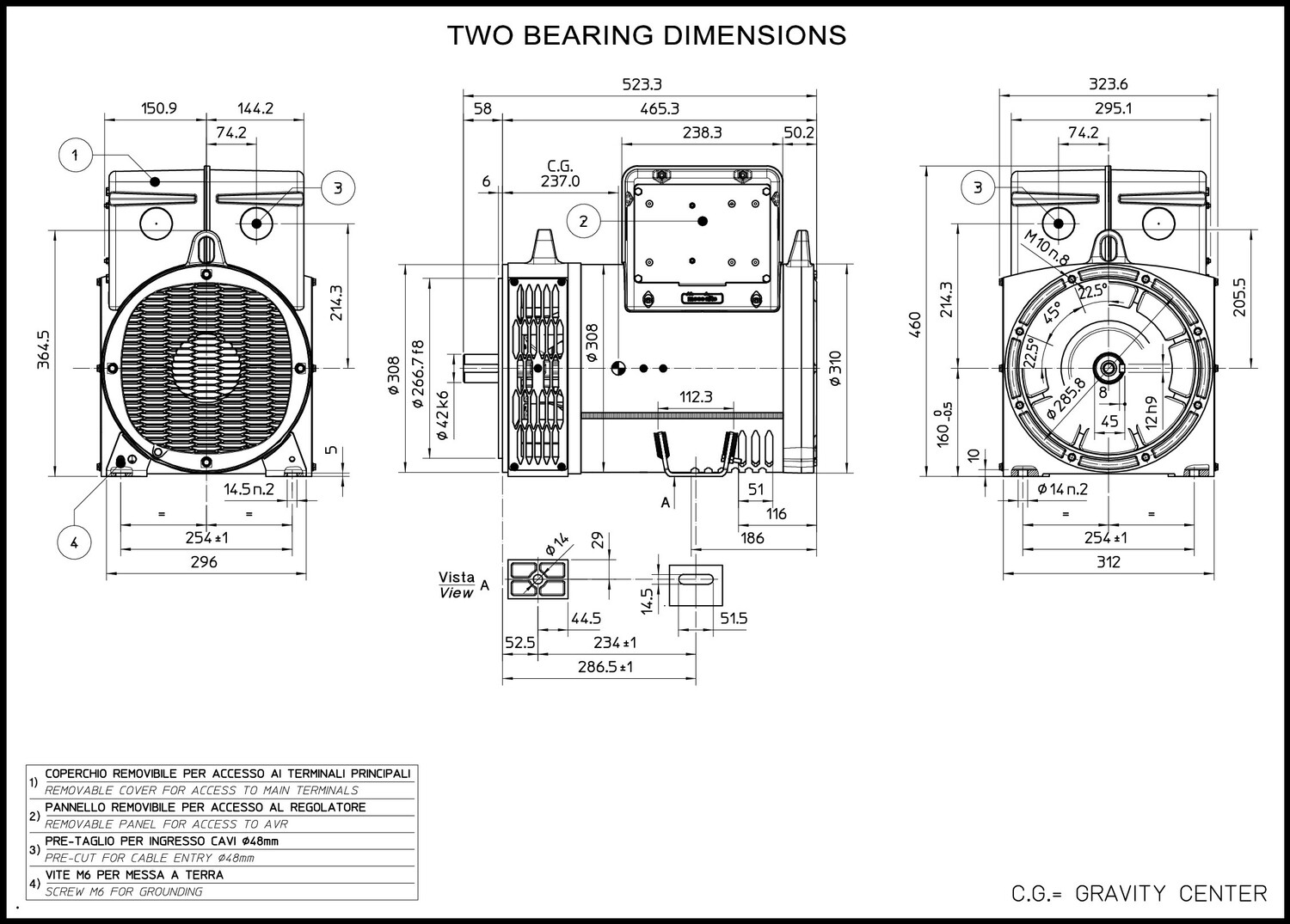

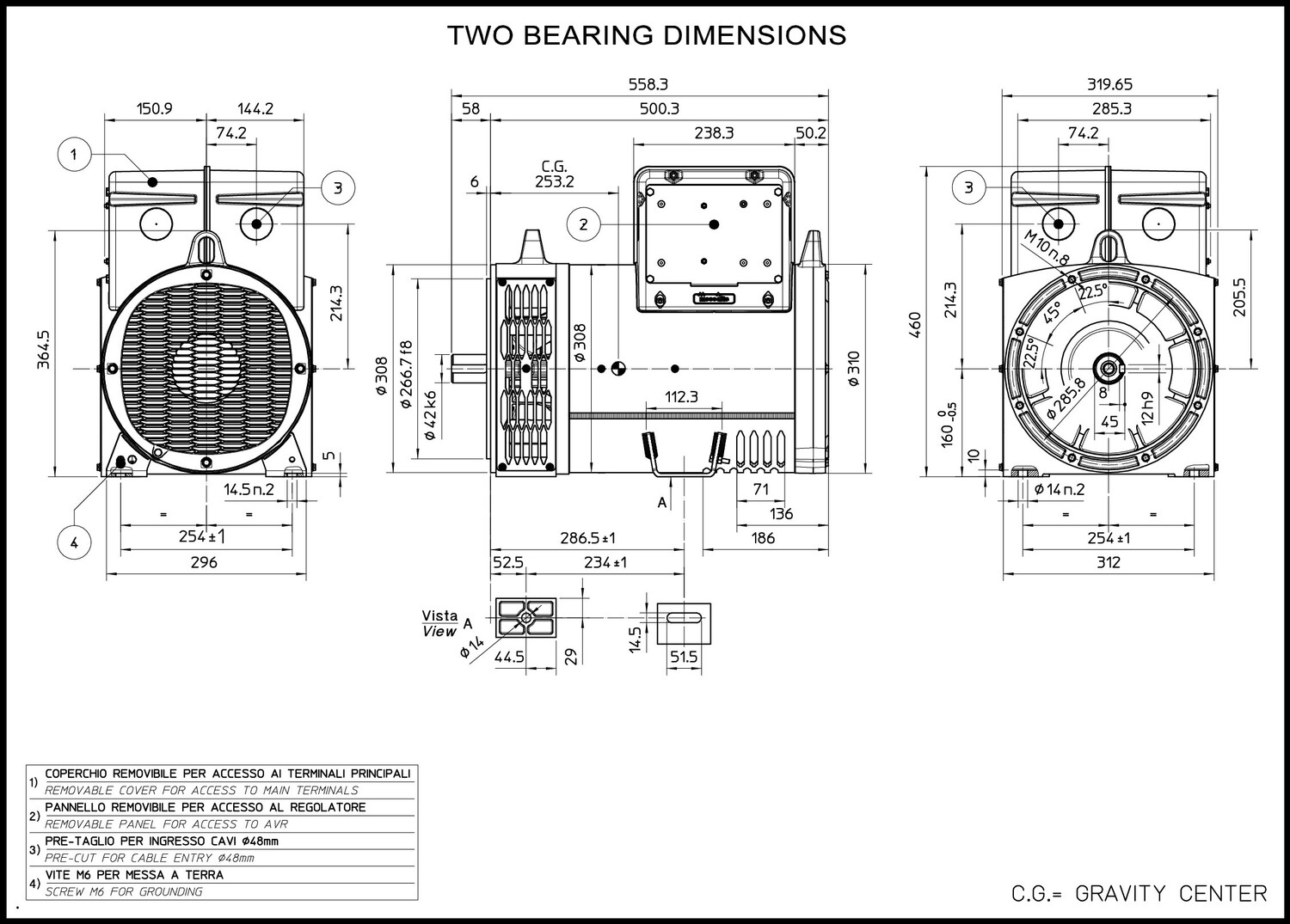

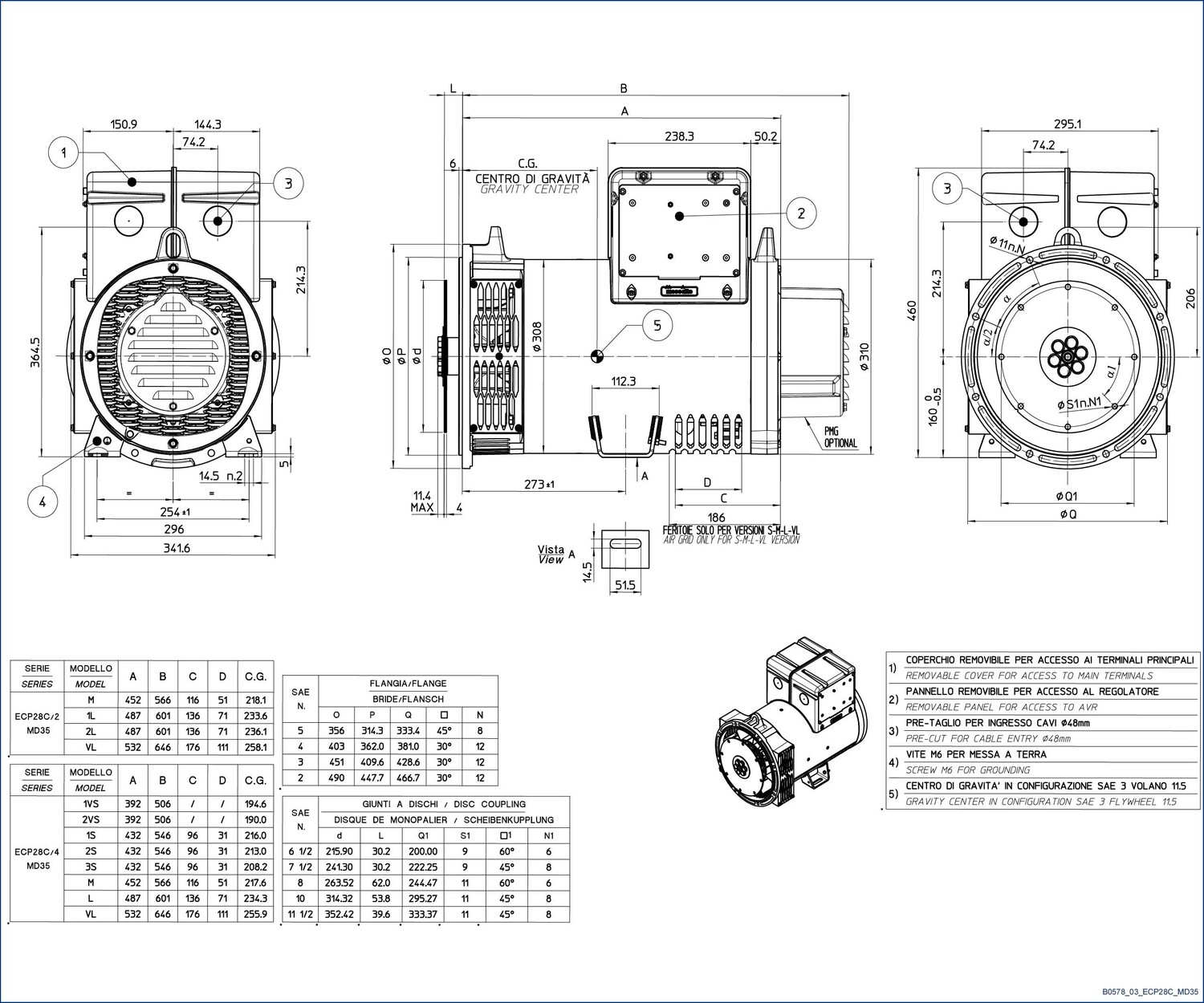

Overall Dimensions Drawings

ECP28 1VS4 C

ECP28 2VS4 C

ECP28 1S4 C

ECP28 2S4 C

ECP28 3S4 C

ECP28 M4 C

ECP28 L4 C
