Industrial / ECO40C 4 pole

ECO40

4 pole generator

The ECO40 C-Type range has many product features designed into the alternator.
C-Type alternators make the most of energy conversion to produce the maximum power to size ratio.
C-Type is now one of the simplest alternators to assemble, integrate, configure and maintain with OEM equipment.
Our aim was to deliver maximum power from the smallest, lightest and strongest alternators and our designers have lavished the C-Type with much more flexibility.
The entire series is manufactured according to, and complies with, the most common specifications such as CEI 2-3, IEC 34-1, EN 60034-1, VDE 0530, BS 4999-5000, CAN/ CSA-C22.2 No14-95- No100-95.

Accessories

General Characteristics

ECO40C 4 pole
Power range (kVA)400 - 900
Winding codeT0405P3
Pole4
RegulatorDER-1/A
Overspeed (RPM)2250
Protection classIP23
Altitude (m)0-1000
ModelsPower range (kVA)
3 phase
ECO40 1S4 C400 - 480
ECO40 2S4 C450 - 540
ECO40 3S4 C500 - 600
ECO40 1L4 C550 - 660
ECO40 2L4 C625 - 750
ECO40 3L4 C680 - 816
ECO40 VL4 C750 - 900


Technical documents

DDS - Dynamic Data Support

Create your own and personalized technical datasheet according to your specifications.

Get it here

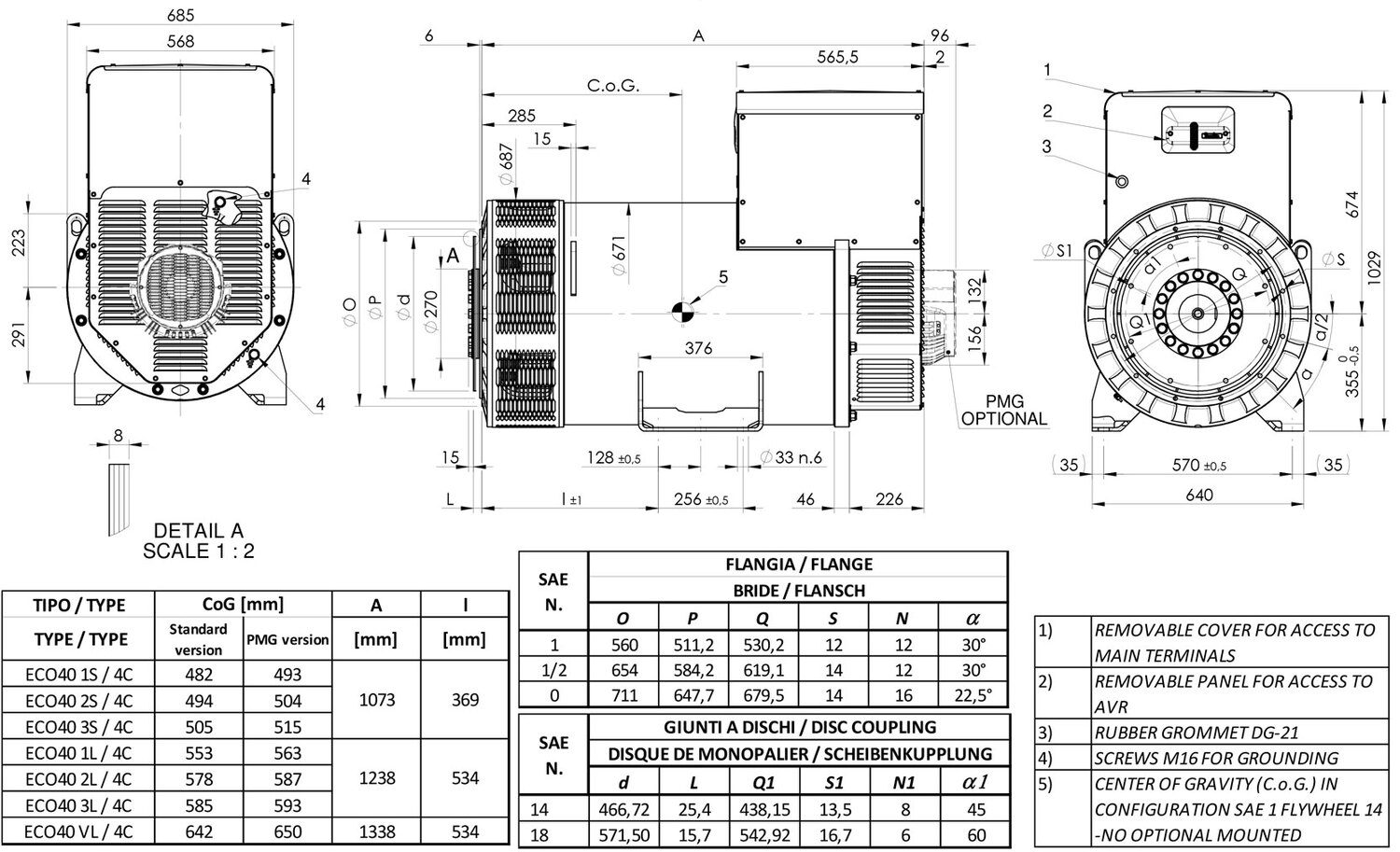

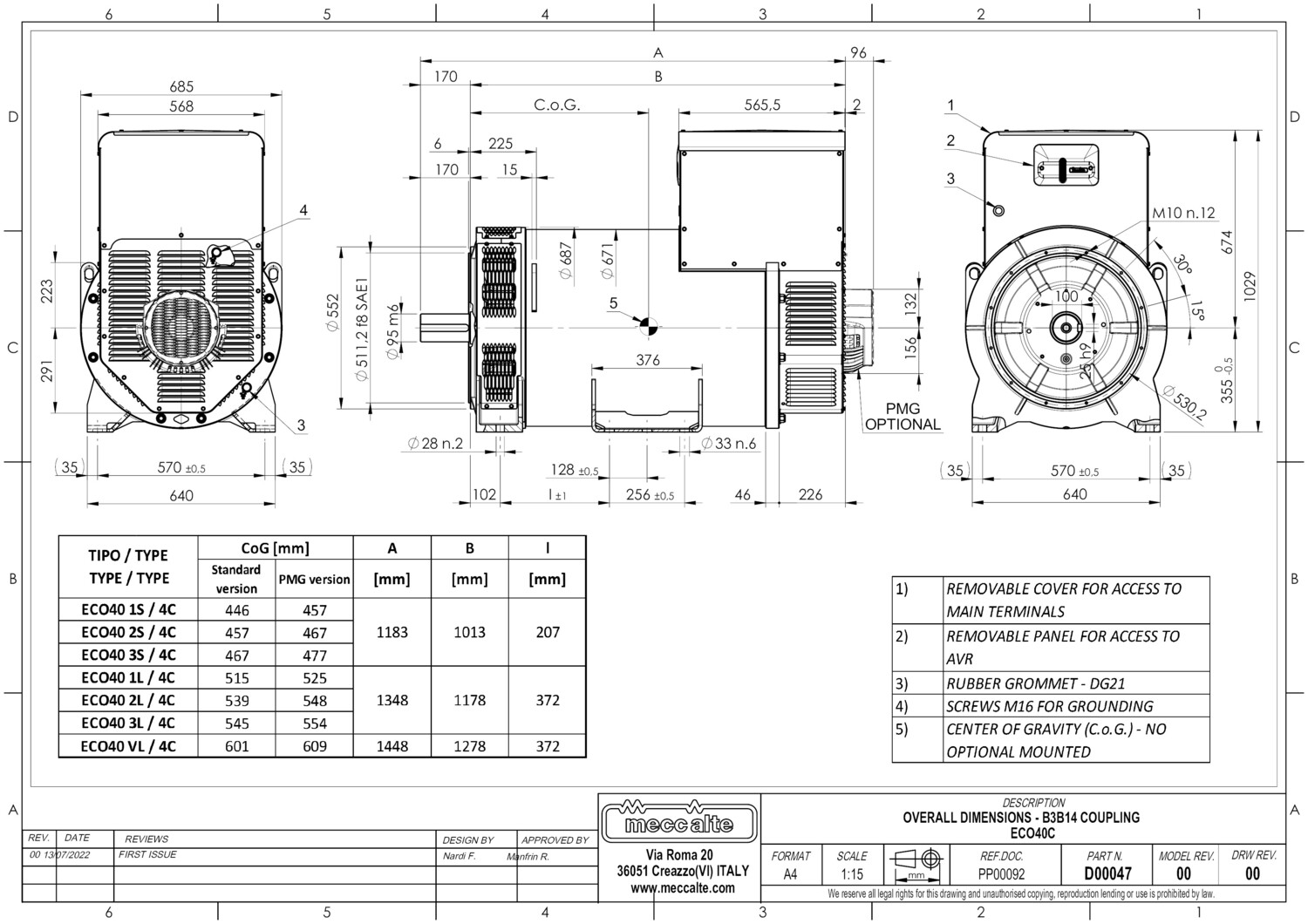

Overall Dimensions Drawings

ECO40 1S4 C

ECO40 2S4 C

ECO40 3S4 C

ECO40 1L4 C

ECO40 2L4 C

ECO40 3L4 C

ECO40 VL4 C
