ECP28 |  |
2 pole generator
The ECP28 C-Type range has many product features designed into the alternator.
C-Type alternators make the most of energy conversion to produce the maximum power to size ratio.
C-Type is now one of the simplest alternators to assemble, integrate, configure and maintain with OEM equipment.
Our aim was to deliver maximum power from the smallest, lightest and strongest alternators and our designers have lavished the C-Type with much more flexibility.
The entire series is manufactured according to, and complies with, the most common specifications such as CEI 2-3, IEC 34-1, EN 60034-1, VDE 0530, BS 4999-5000, CAN/ CSA-C22.2 No14-95- No100-95.
General Characteristics
| ECP28C 2 pole | |
|---|---|
| Power range (kVA) | 14.5 - 48 |
| Winding code | T0405S3 |
| Pole | 2 |
| Regulator | DSR |
| Overspeed (RPM) | 4500 |
| Protection class | IP23 |
| Altitude (m) | 0-1000 |
| Models | Power range (kVA) | |
|---|---|---|
| 1 phase | 3 phase | |
| ECP28 M2 C | 14.5 - 17.5 | 22 - 26.5 |
| ECP28 1L2 C | Notice: Undefined property: stdClass::$phase_1 in /var/www/vhosts/meccalte.com/httpdocs/tpl-prodotto.php on line 153 Notice: Trying to get property of non-object in /var/www/vhosts/meccalte.com/httpdocs/tpl-prodotto.php on line 153 Notice: Trying to get property of non-object in /var/www/vhosts/meccalte.com/httpdocs/tpl-prodotto.php on line 153 - Notice: Undefined property: stdClass::$phase_1 in /var/www/vhosts/meccalte.com/httpdocs/tpl-prodotto.php on line 153 Notice: Trying to get property of non-object in /var/www/vhosts/meccalte.com/httpdocs/tpl-prodotto.php on line 153 Notice: Trying to get property of non-object in /var/www/vhosts/meccalte.com/httpdocs/tpl-prodotto.php on line 153 | 27 - 32.5 |
| ECP28 2L2 C | 20 - 24 | 31.5 - 38 |
| ECP28 VL2 C | 24 - 29 | 40 - 48 |
Technical documents

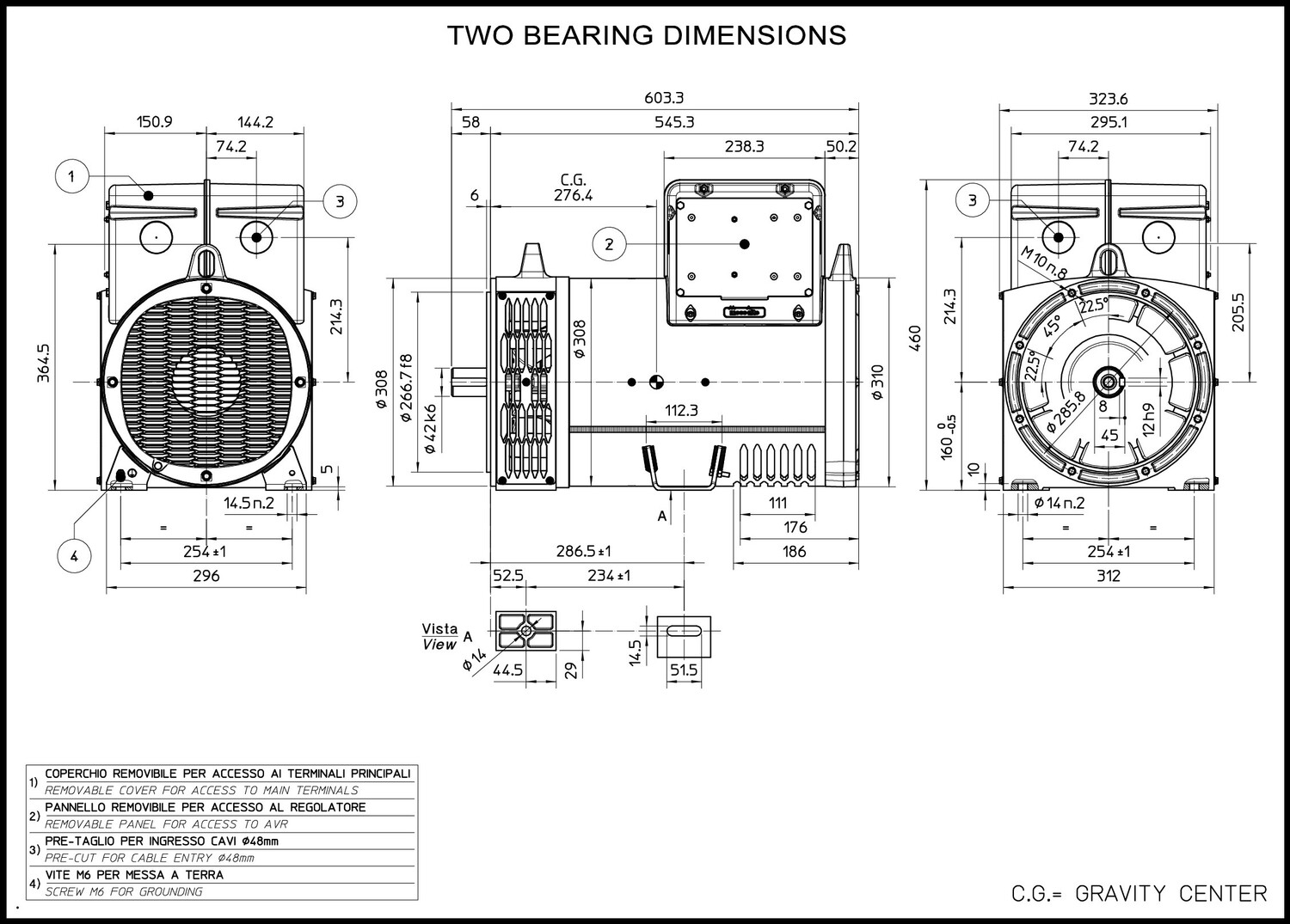

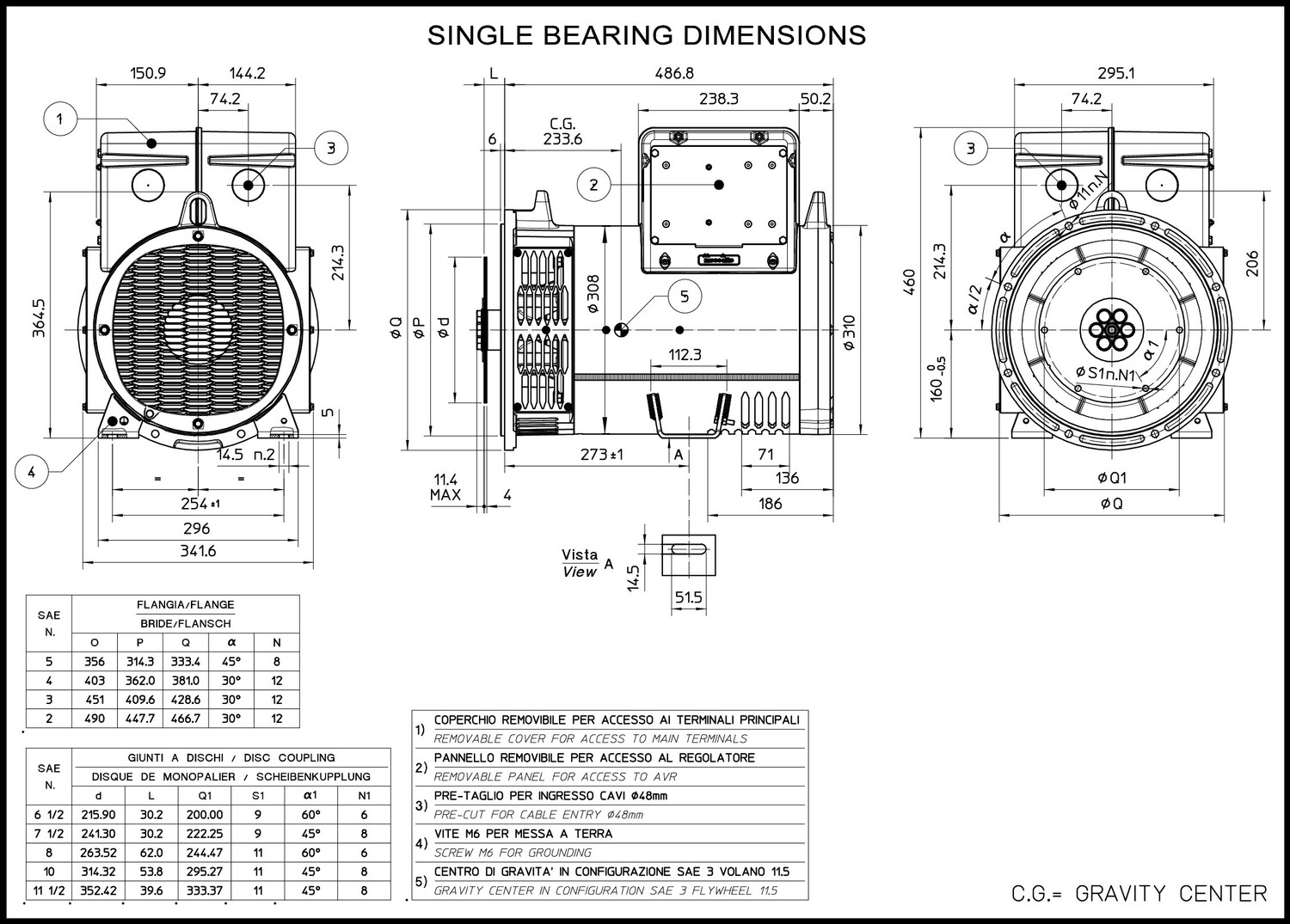

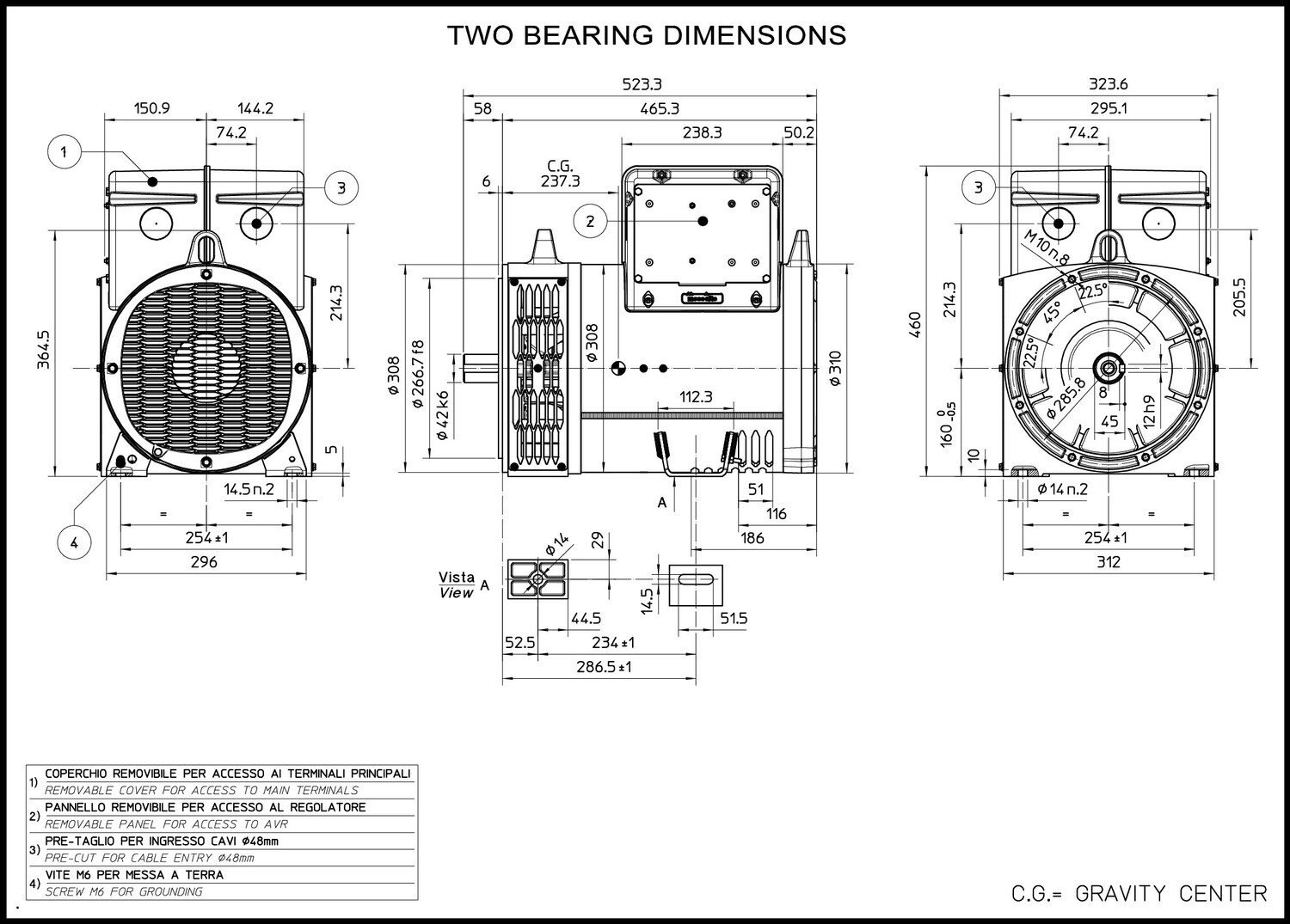

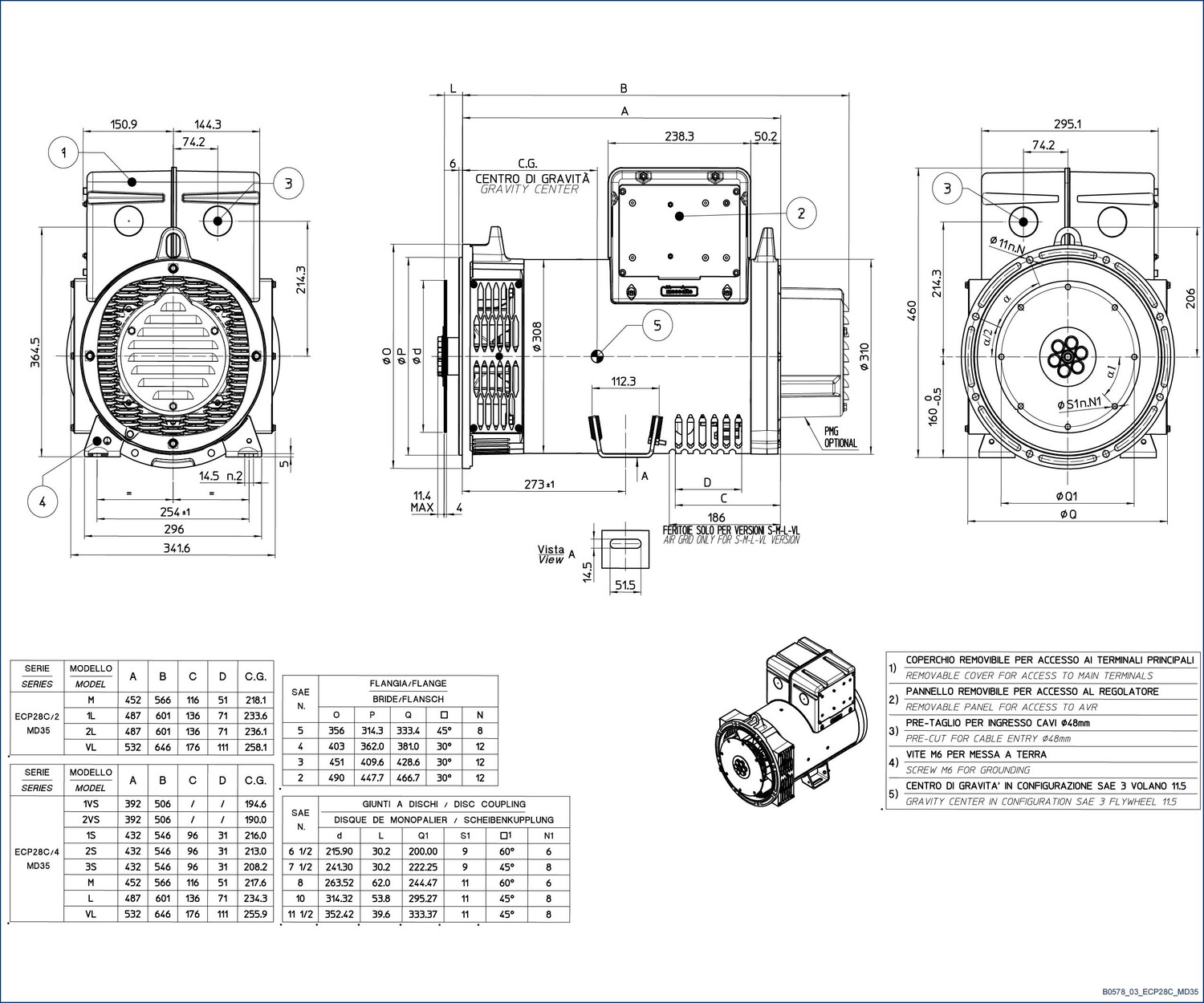

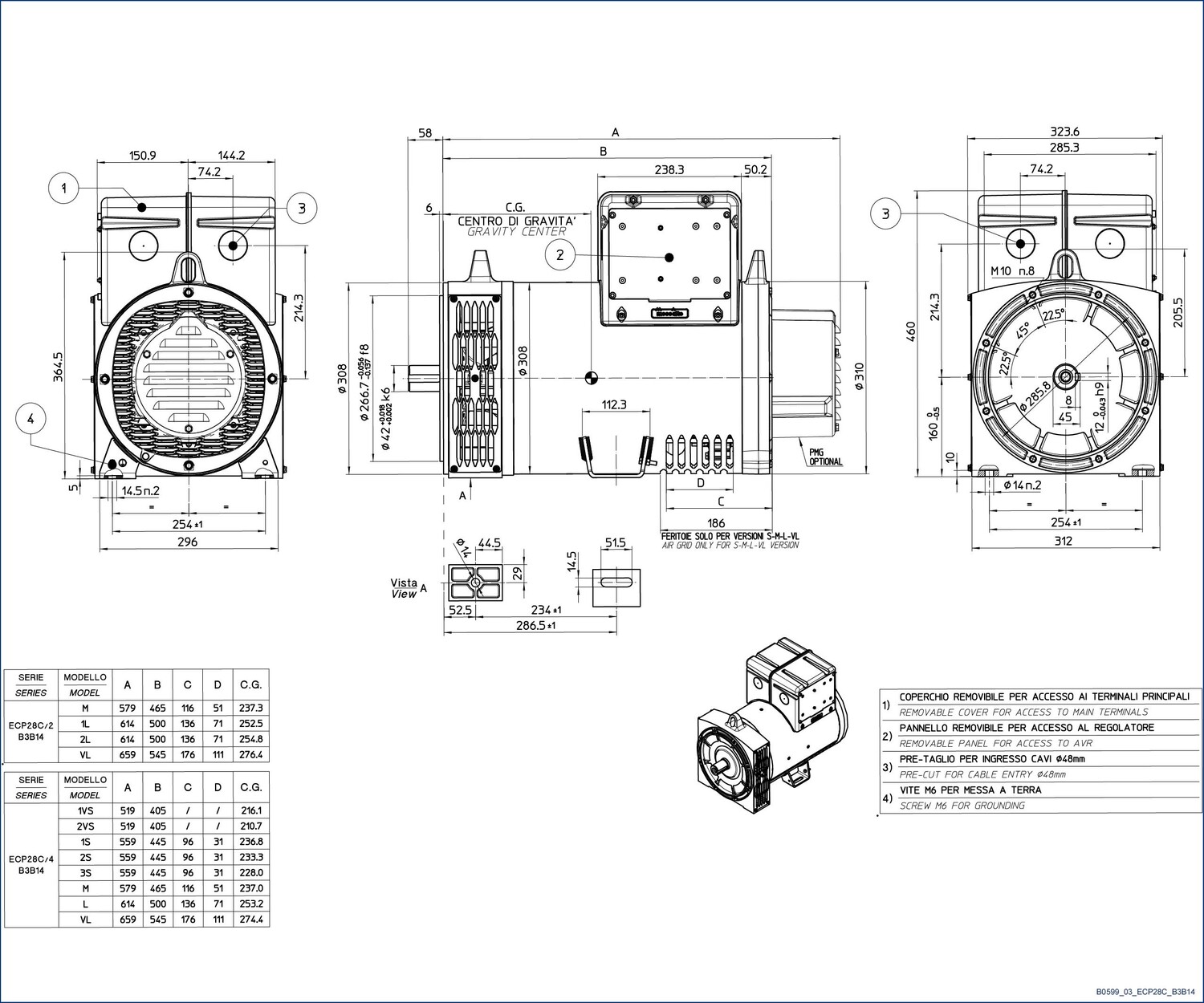

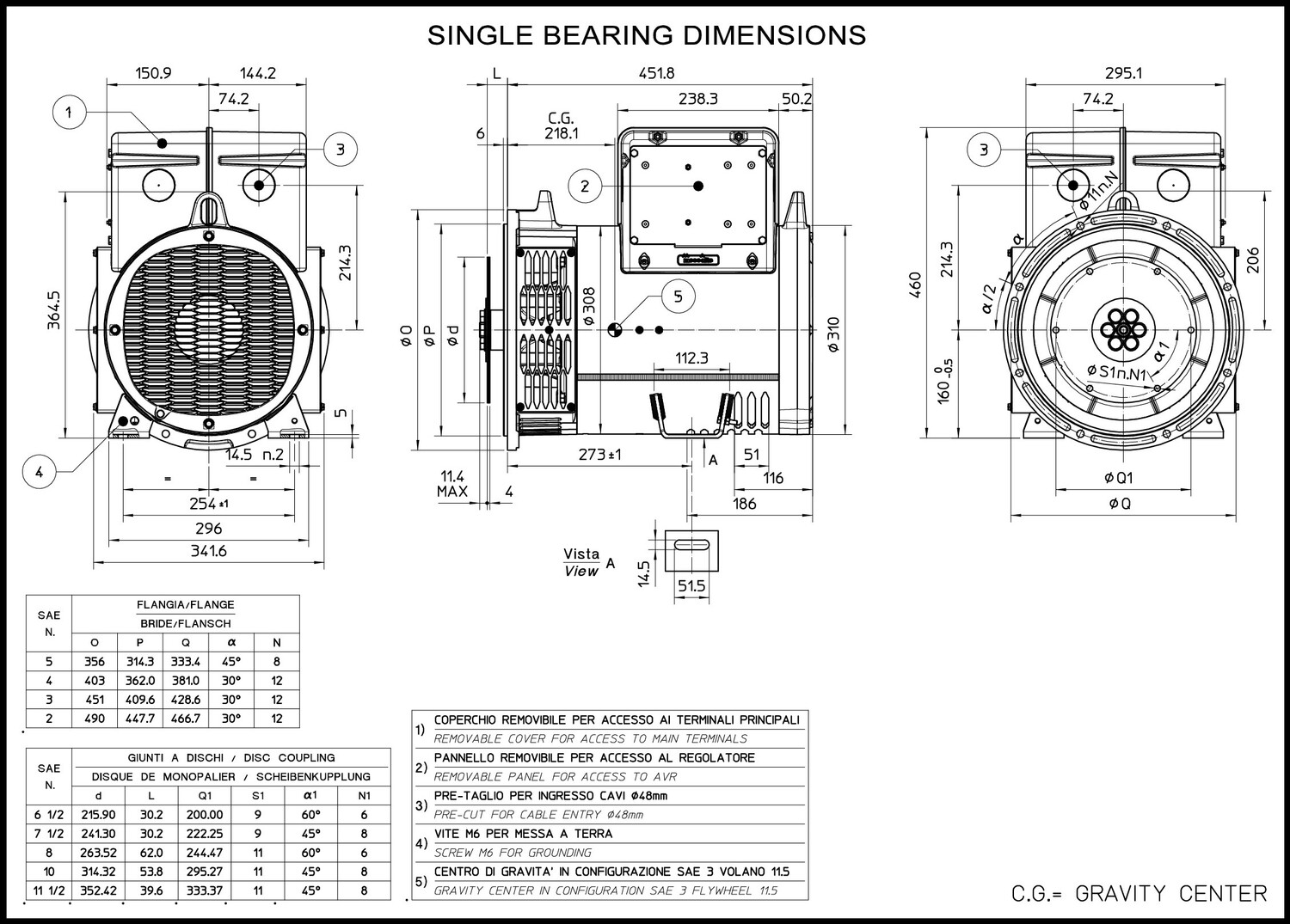

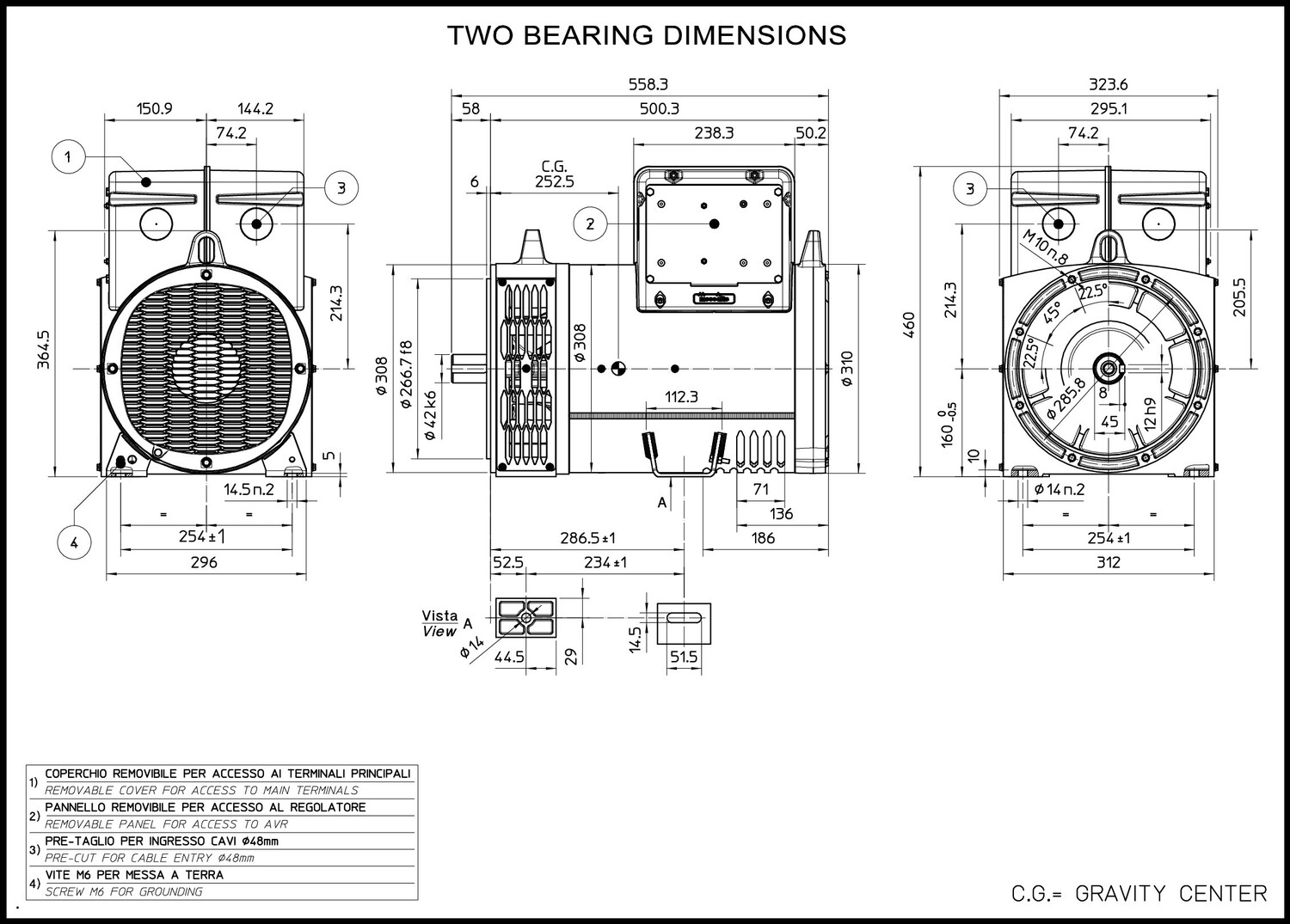

Overall Dimensions Drawings
ECP28 M2 C
ECP28 1L2 C
ECP28 2L2 C
ECP28 VL2 C
