Industrial / ECO38C 4 pole

ECO38

4 pole generator

The ECO38 C-Type range has many product features designed into the alternator.
C-Type alternators make the most of energy conversion to produce the maximum power to size ratio.
C-Type is now one of the simplest alternators to assemble, integrate, configure and maintain with OEM equipment.
Our aim was to deliver maximum power from the smallest, lightest and strongest alternators and our designers have lavished the C-Type with much more flexibility.
The entire series is manufactured according to, and complies with, the most common specifications such as CEI 2-3, IEC 34-1, EN 60034-1, VDE 0530, BS 4999-5000, CAN/ CSA-C22.2 No14-95- No100-95.

Accessories

General Characteristics

ECO38C 4 pole
Power range (kVA)86 - 420
Winding codeT0405S3
Pole4
RegulatorDSR
Overspeed (RPM)2250
Protection classIP23
Altitude (m)0-1000
ModelsPower range (kVA)
1 phase3 phase
ECO38 1S4 C86 - 87180 - 220
ECO38 2S4 C88 - 88200 - 240
ECO38 1M4 C110 - 111225 - 270
ECO38 2M4 C120 - 122250 - 300
ECO38 1L4 C135 - 136300 - 360
ECO38 2L4 C155 - 156350 - 420


Technical documents

DDS - Dynamic Data Support

Create your own and personalized technical datasheet according to your specifications.

Get it here

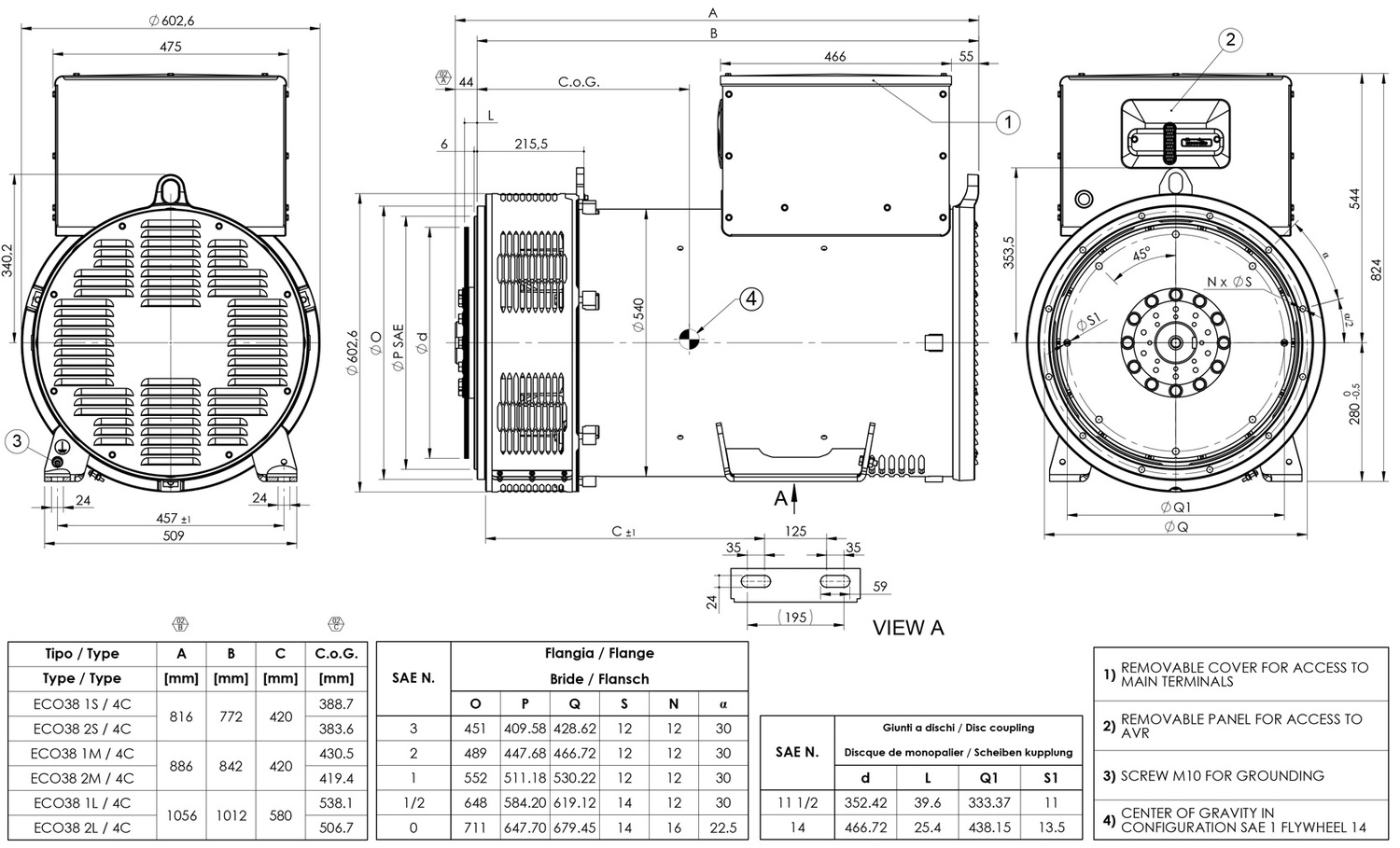

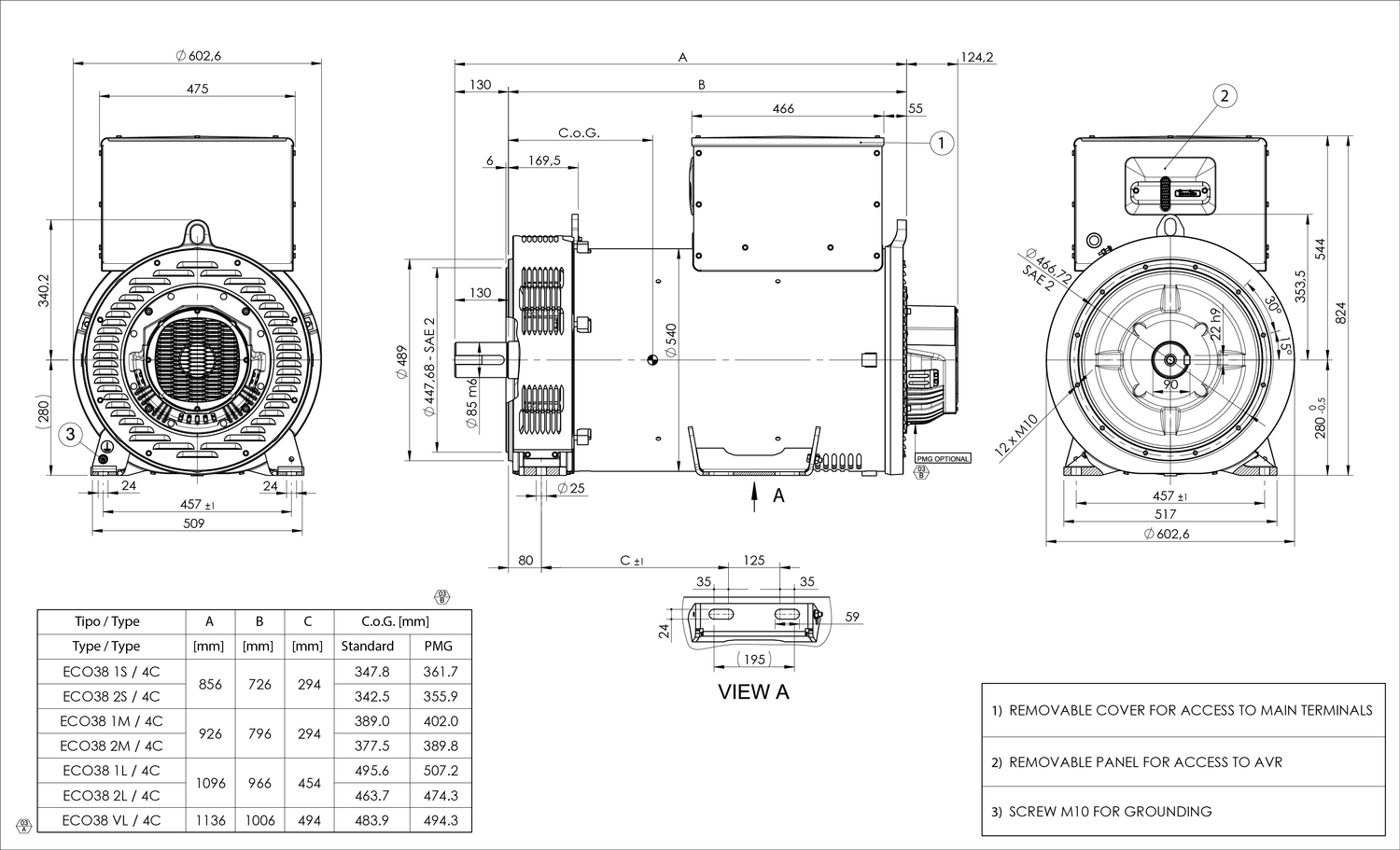

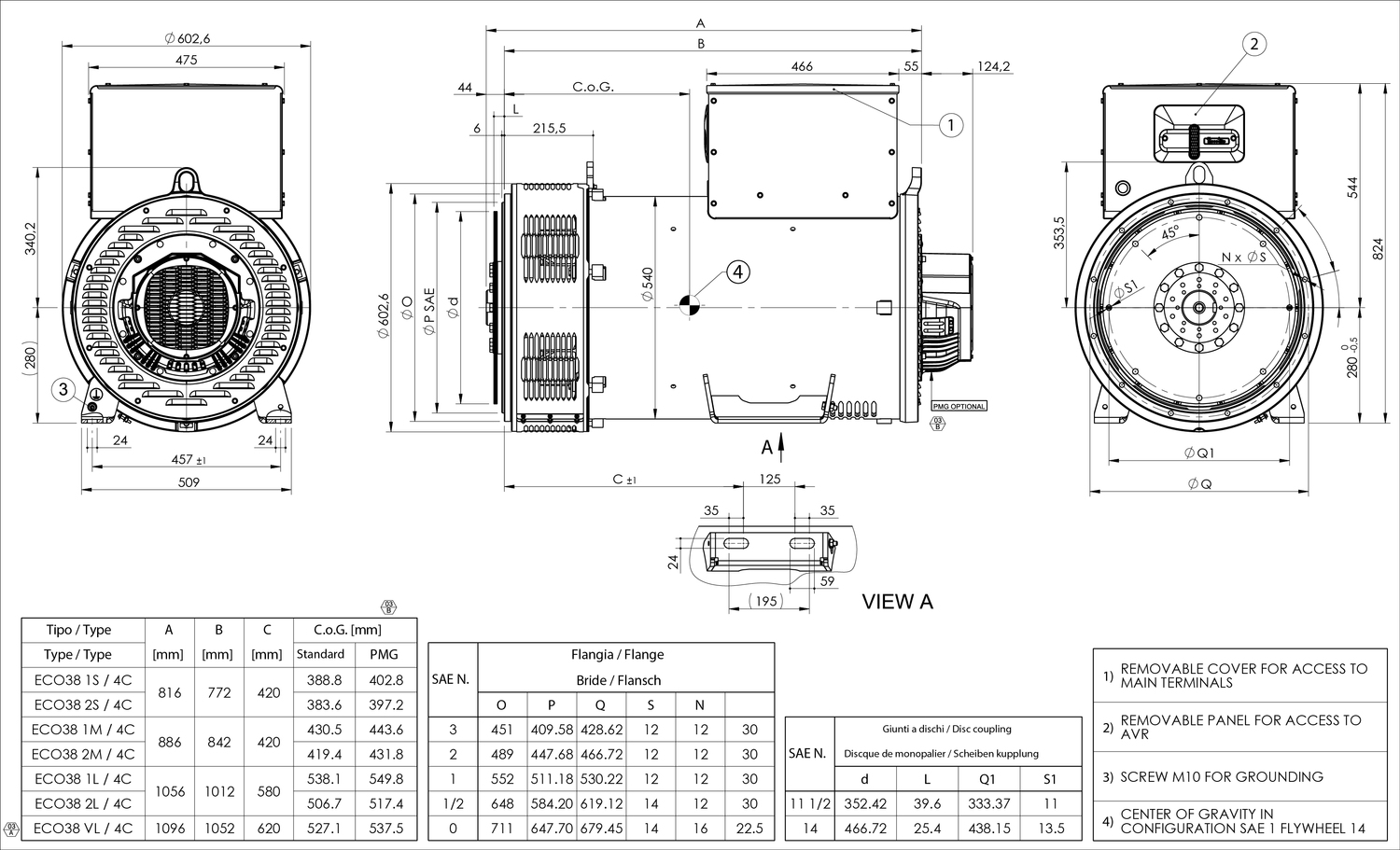

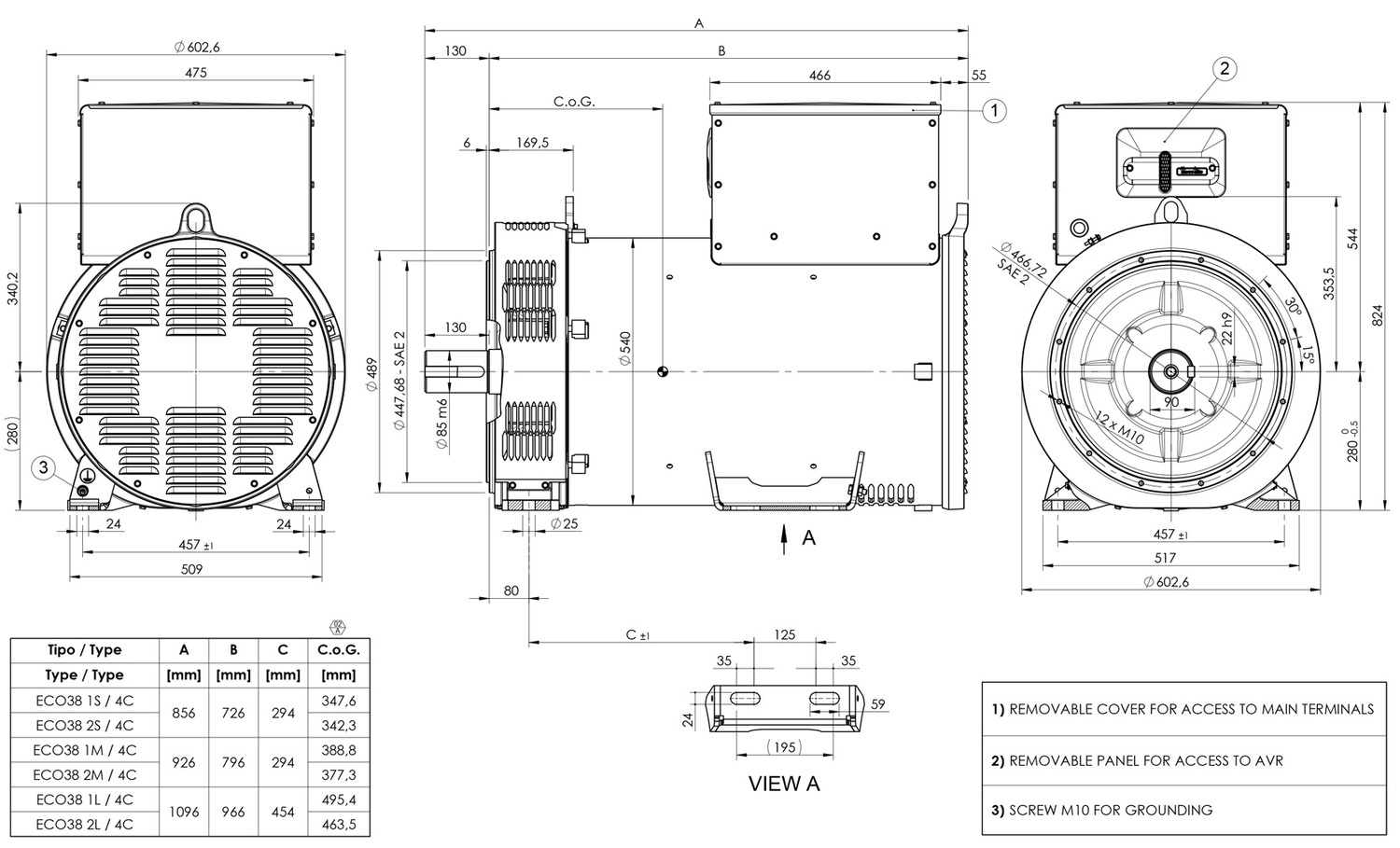

Overall Dimensions Drawings

ECO38 1S4 C

ECO38 2S4 C

ECO38 1M4 C

ECO38 2M4 C

ECO38 1L4 C

ECO38 2L4 C
