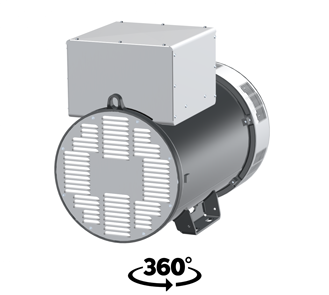

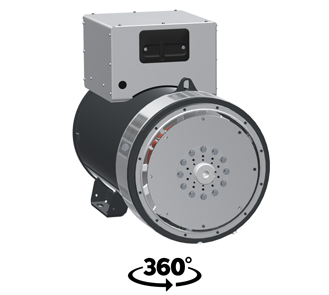

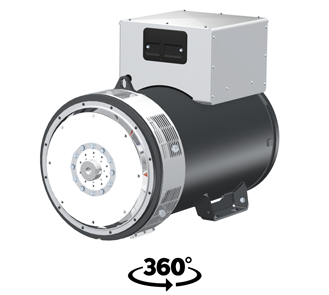

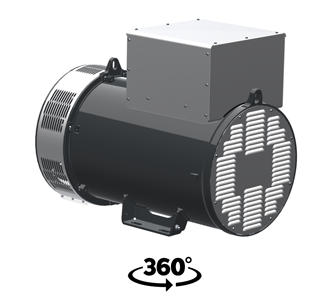

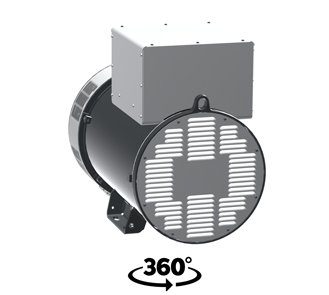

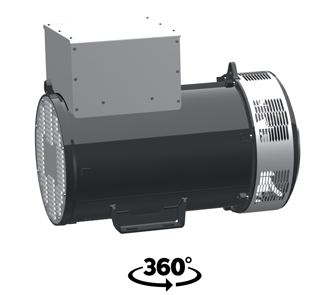

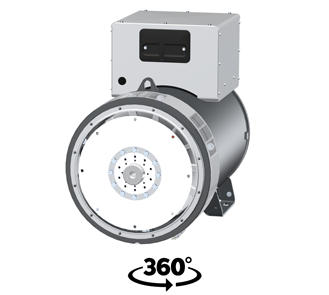

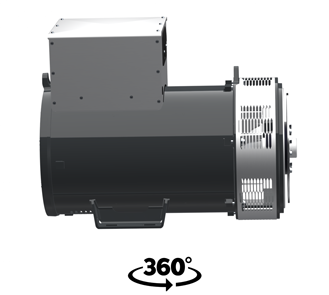

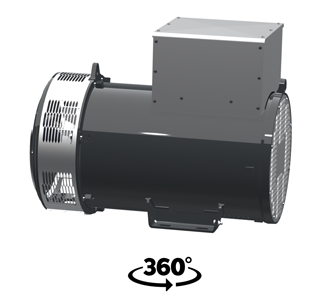

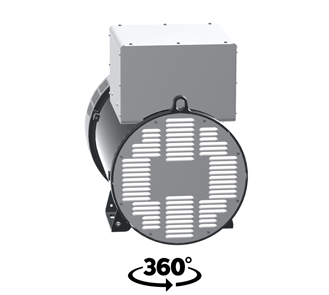

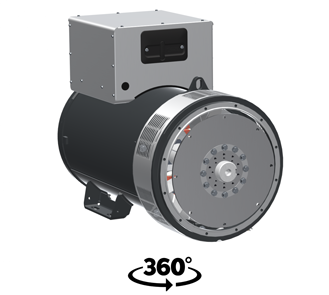

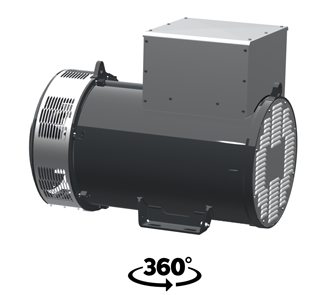

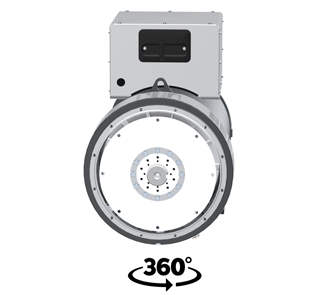

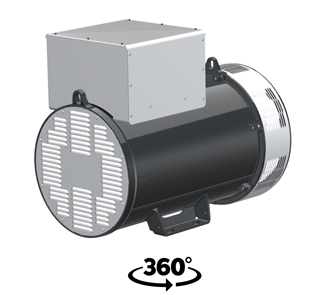

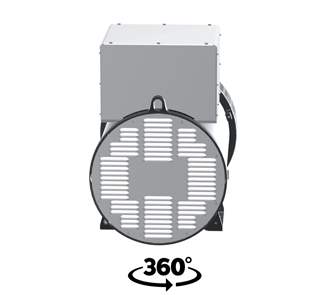

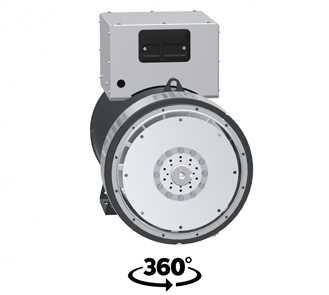

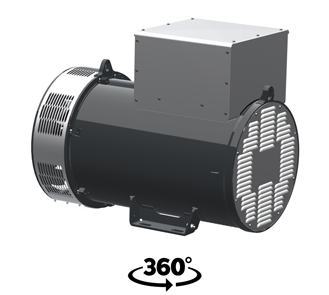

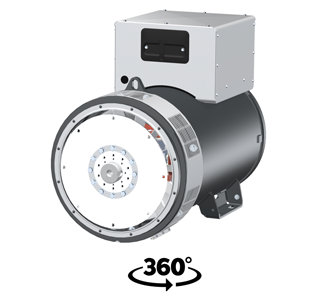

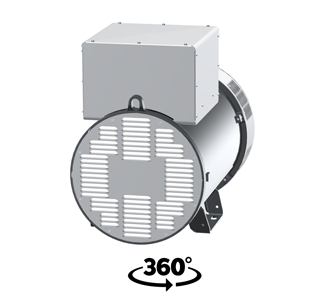

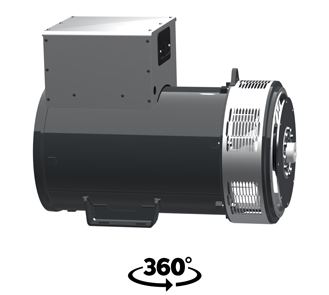

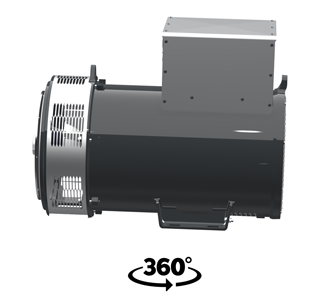

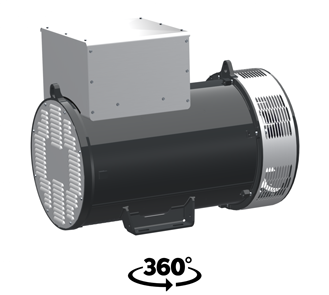

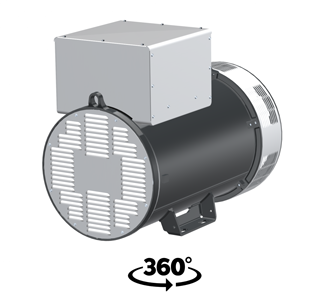

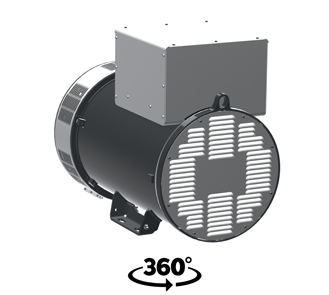

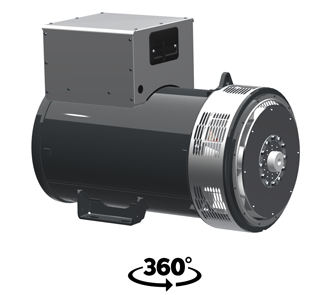

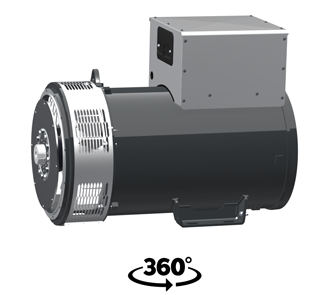

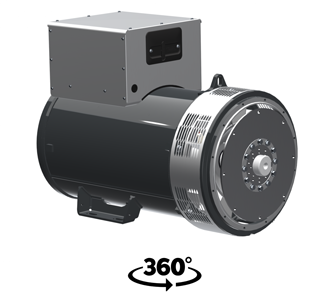

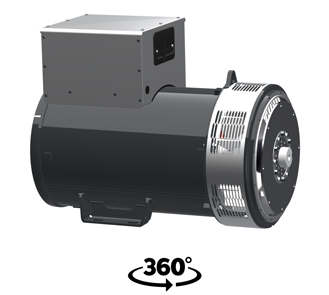

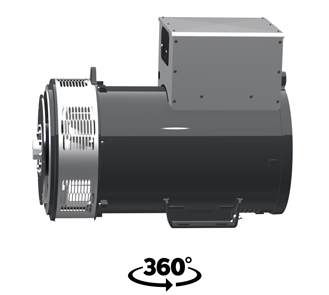

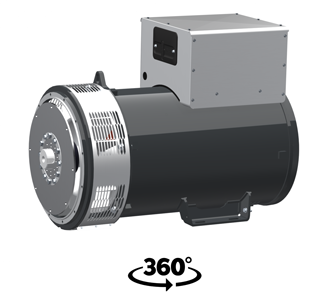

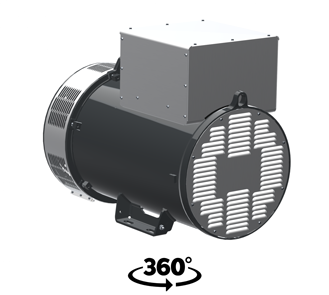

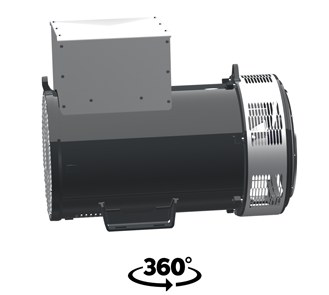

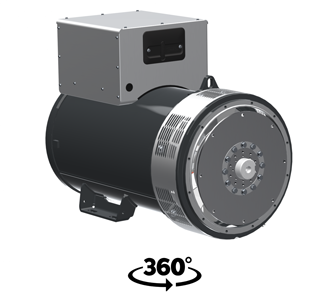

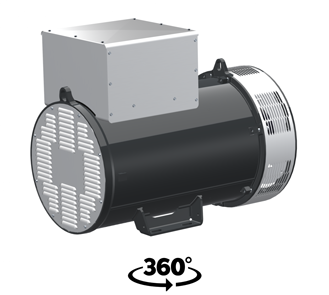

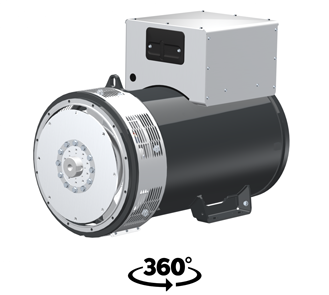

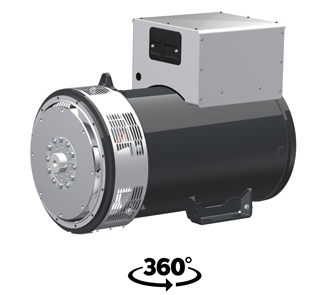

ECO38 |
 |
4 poli
The ECO38 C-Type range has many product features designed into the alternator.
C-Type alternators make the most of energy conversion to produce the maximum power to size ratio.
C-Type is now one of the simplest alternators to assemble, integrate, configure and maintain with OEM equipment.
Our aim was to deliver maximum power from the smallest, lightest and strongest alternators and our designers have lavished the C-Type with much more flexibility.
The entire series is manufactured according to, and complies with, the most common specifications such as CEI 2-3, IEC 34-1, EN 60034-1, VDE 0530, BS 4999-5000, CAN/ CSA-C22.2 No14-95- No100-95.
Caratteristiche Generali
| ECO38C 4 poli | |
|---|---|
| Range potenza (kVA) | 86 - 440 |
| Riferimento codice avvolgimento | T0405S3 |
| Poli | 4 |
| Regolatore | DSR |
| Sovravelocità massima (RPM) | 2250 |
| Classe isolamento | IP23 |
| Altitudine (m) | 0-1000 |
| Modelli | Range potenza (kVA) | |
|---|---|---|
| monofase | trifase | |
| ECO38 1S4 C | 86 - 87 | 180 - 220 |
| ECO38 2S4 C | 88 - 88 | 200 - 240 |
| ECO38 1M4 C | 110 - 111 | 225 - 270 |
| ECO38 2M4 C | 120 - 122 | 250 - 300 |
| ECO38 1L4 C | 135 - 136 | 300 - 360 |
| ECO38 2L4 C | 155 - 156 | 350 - 420 |
| ECO38 VL4 C | 159 - 160 | 370 - 440 |
Documentazione tecnica
DDS - Dynamic Data Support
Crea una scheda tecnica personalizzata secondo le tue particolari specifiche.
Disegni d'ingombro
