Industrial / ECP28C 2 poli

ECP28

2 poli

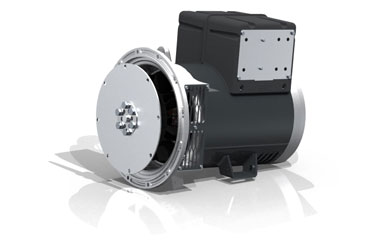

The ECP28 C-Type range has many product features designed into the alternator.
C-Type alternators make the most of energy conversion to produce the maximum power to size ratio.
C-Type is now one of the simplest alternators to assemble, integrate, configure and maintain with OEM equipment.
Our aim was to deliver maximum power from the smallest, lightest and strongest alternators and our designers have lavished the C-Type with much more flexibility.
The entire series is manufactured according to, and complies with, the most common specifications such as CEI 2-3, IEC 34-1, EN 60034-1, VDE 0530, BS 4999-5000, CAN/ CSA-C22.2 No14-95- No100-95.

Find out more   Accessori

Caratteristiche Generali

ECP28C 2 poli
Range potenza (kVA)22 - 48
Riferimento codice avvolgimentoT0405S3
Poli2
RegolatoreDSR
Sovravelocità massima (RPM)4500
Classe isolamentoIP23
Altitudine (m)0-1000
ModelliRange potenza (kVA)
trifase
ECP28 M2 C22 - 26.5
ECP28 1L2 C27 - 32.5
ECP28 2L2 C31.5 - 38
ECP28 VL2 C40 - 48


Documentazione tecnica



Disegni d'ingombro

ECP28 M2 C

ECP28 1L2 C

ECP28 2L2 C

ECP28 VL2 C
