Industrial / ECP32C 4 pole (1phase Dedicated)

ECP32

4 pole generator
1 phase dedicated

The ECP32 C-Type range has many product features designed into the alternator.
C-Type alternators make the most of energy conversion to produce the maximum power to size ratio.
C-Type is now one of the simplest alternators to assemble, integrate, configure and maintain with OEM equipment.
Our aim was to deliver maximum power from the smallest, lightest and strongest alternators and our designers have lavished the C-Type with much more flexibility.
The entire series is manufactured according to, and complies with, the most common specifications such as CEI 2-3, IEC 34-1, EN 60034-1, VDE 0530, BS 4999-5000, CAN/ CSA-C22.2 No14-95- No100-95.

Find out more   Accessories

General Characteristics

ECP32C 4 pole (1phase Dedicated)
Power range (kVA) 28 - 58
Winding code S4235B3
Pole 4
Regulator DSR
Overspeed (RPM) 2250
Protection class IP23
Altitude (m) 0-1000
Models Power range (kVA)
1 phase
ECP32 1S4 C 28 - 28
ECP32 2S4 C 32 - 41
ECP32 1M4 C 36 - 44
ECP32 2M4 C 40 - 48
ECP32 1L4 C 46 - 55
ECP32 2L4 C 48 - 58


Technical documents

DDS - Dynamic Data Support

Create your own and personalized technical datasheet according to your specifications.

Get it here

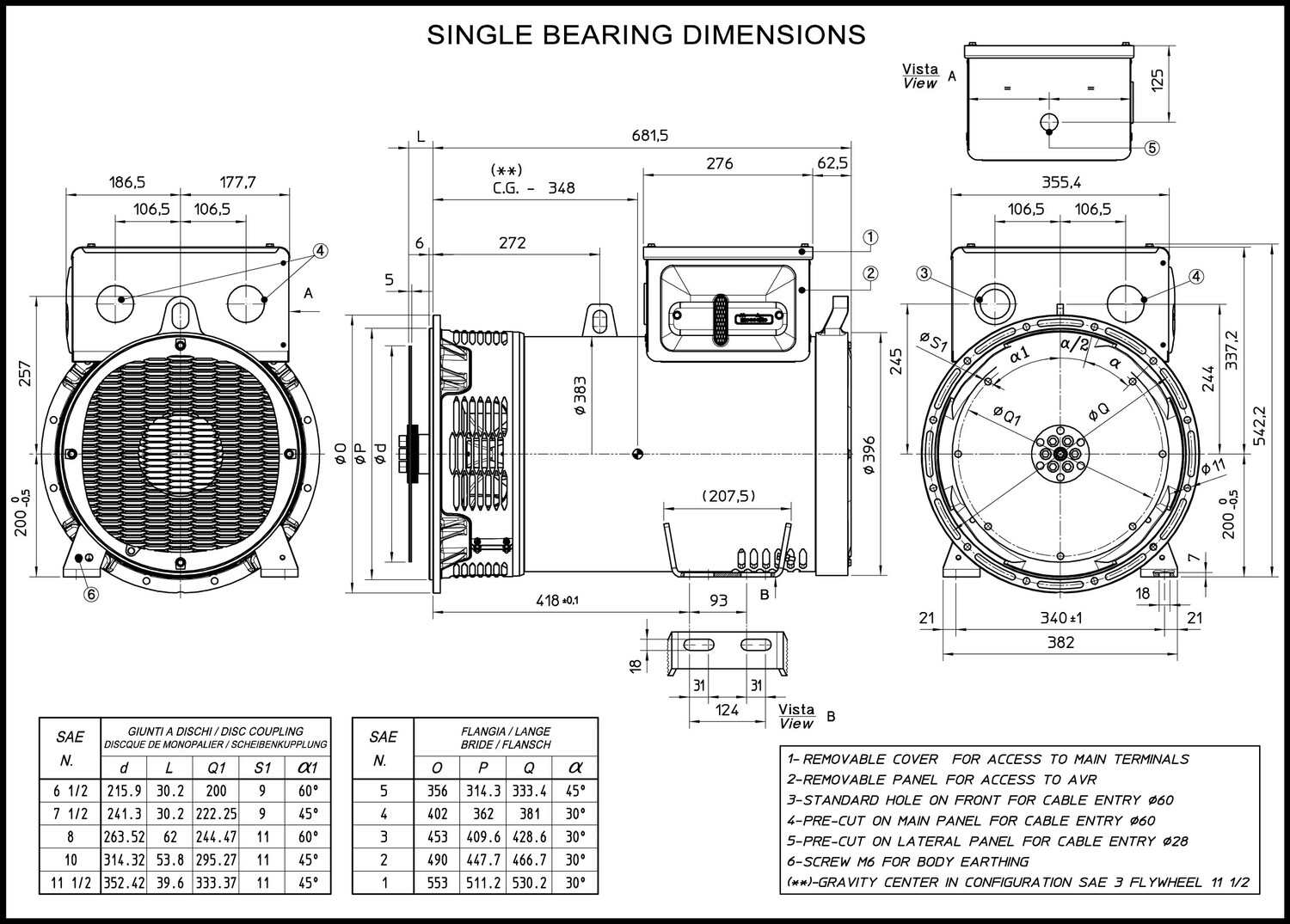

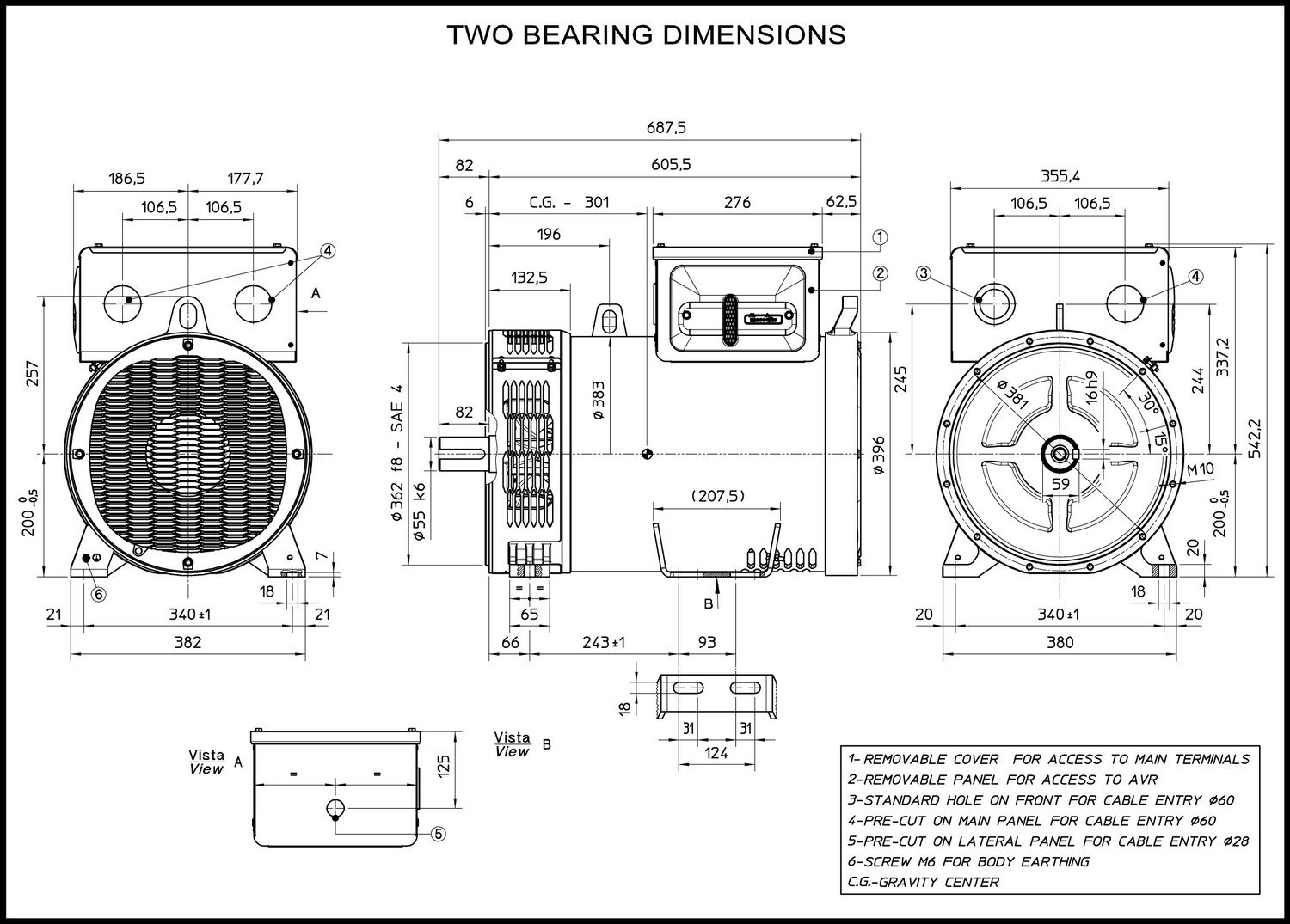

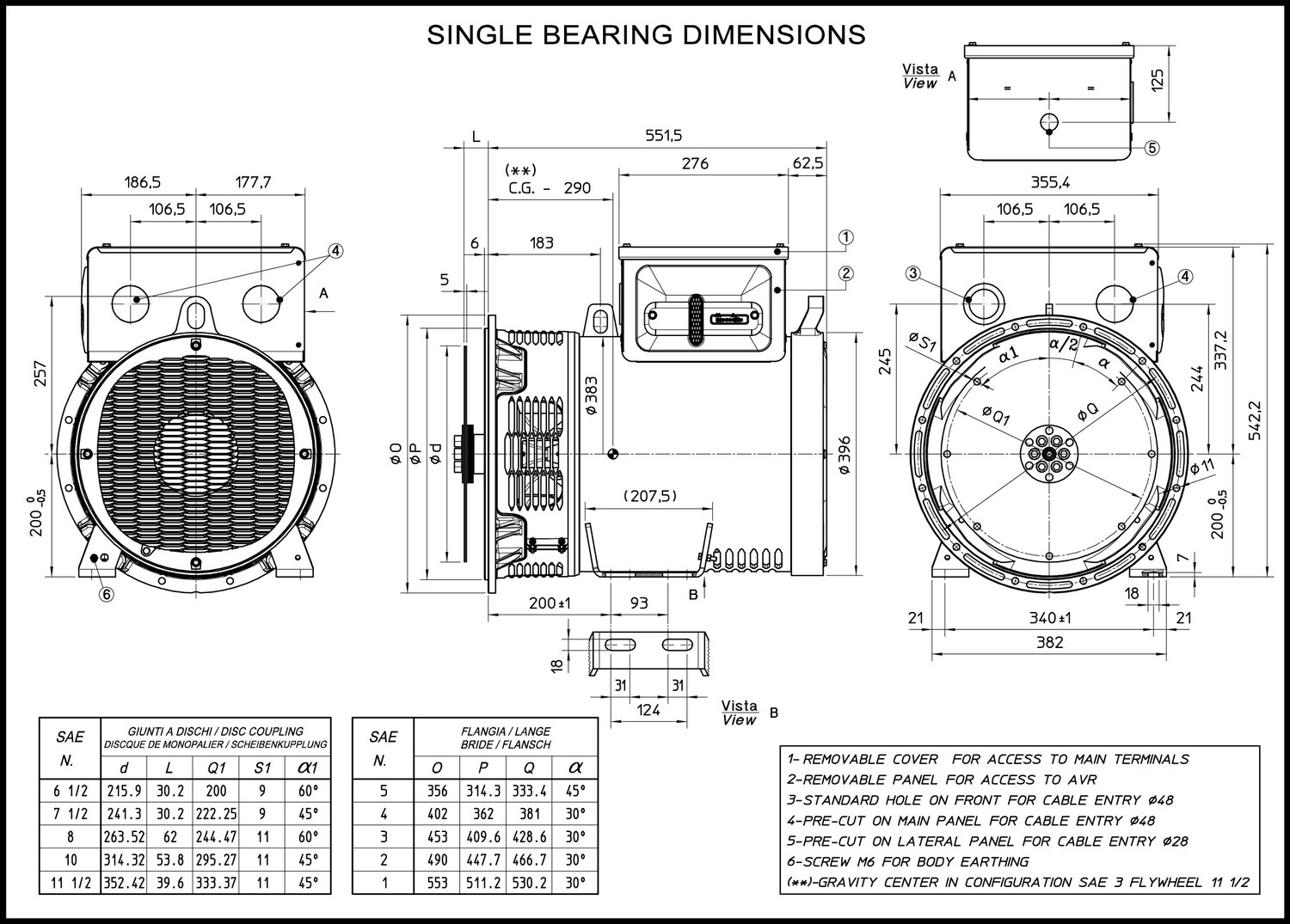

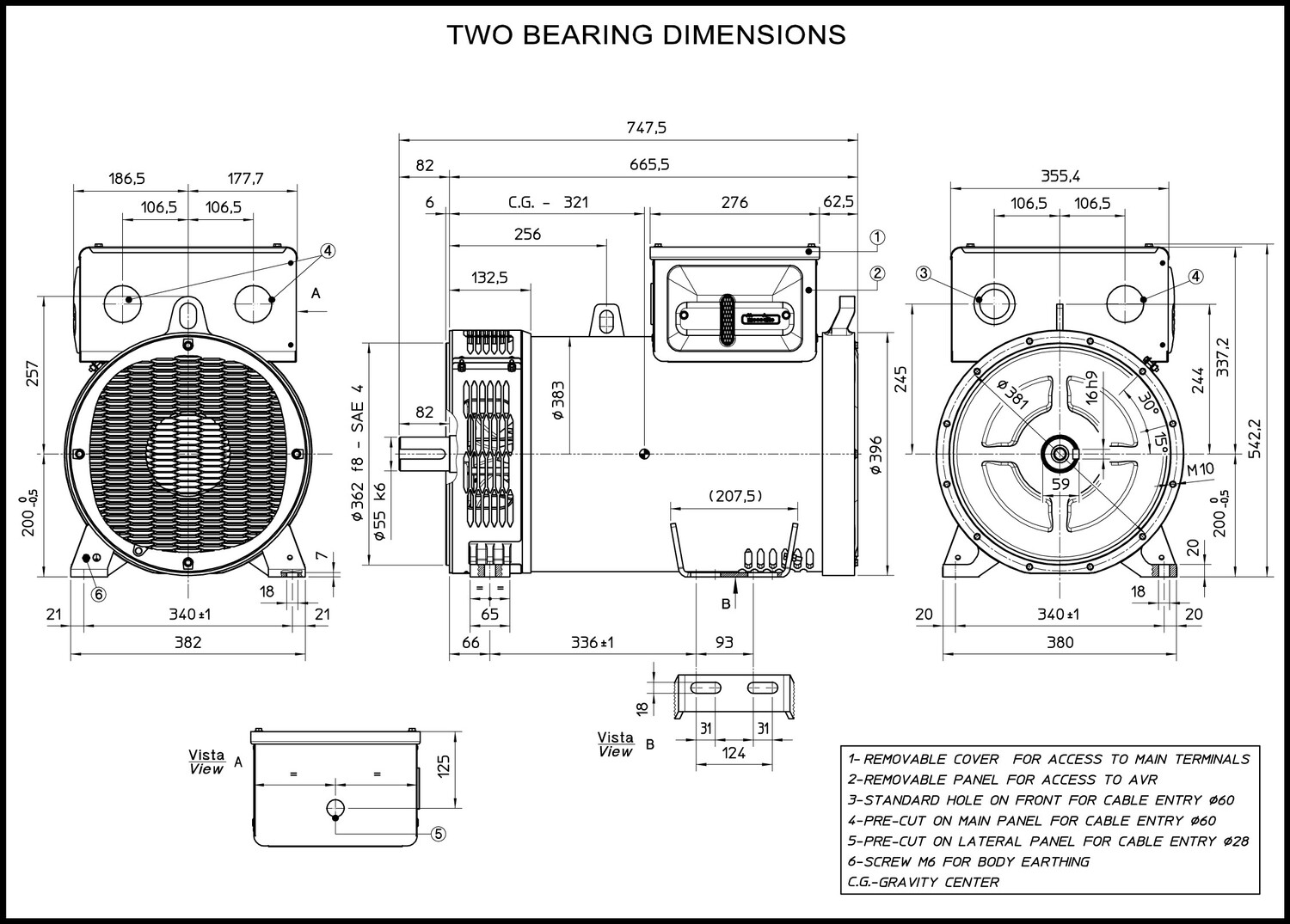

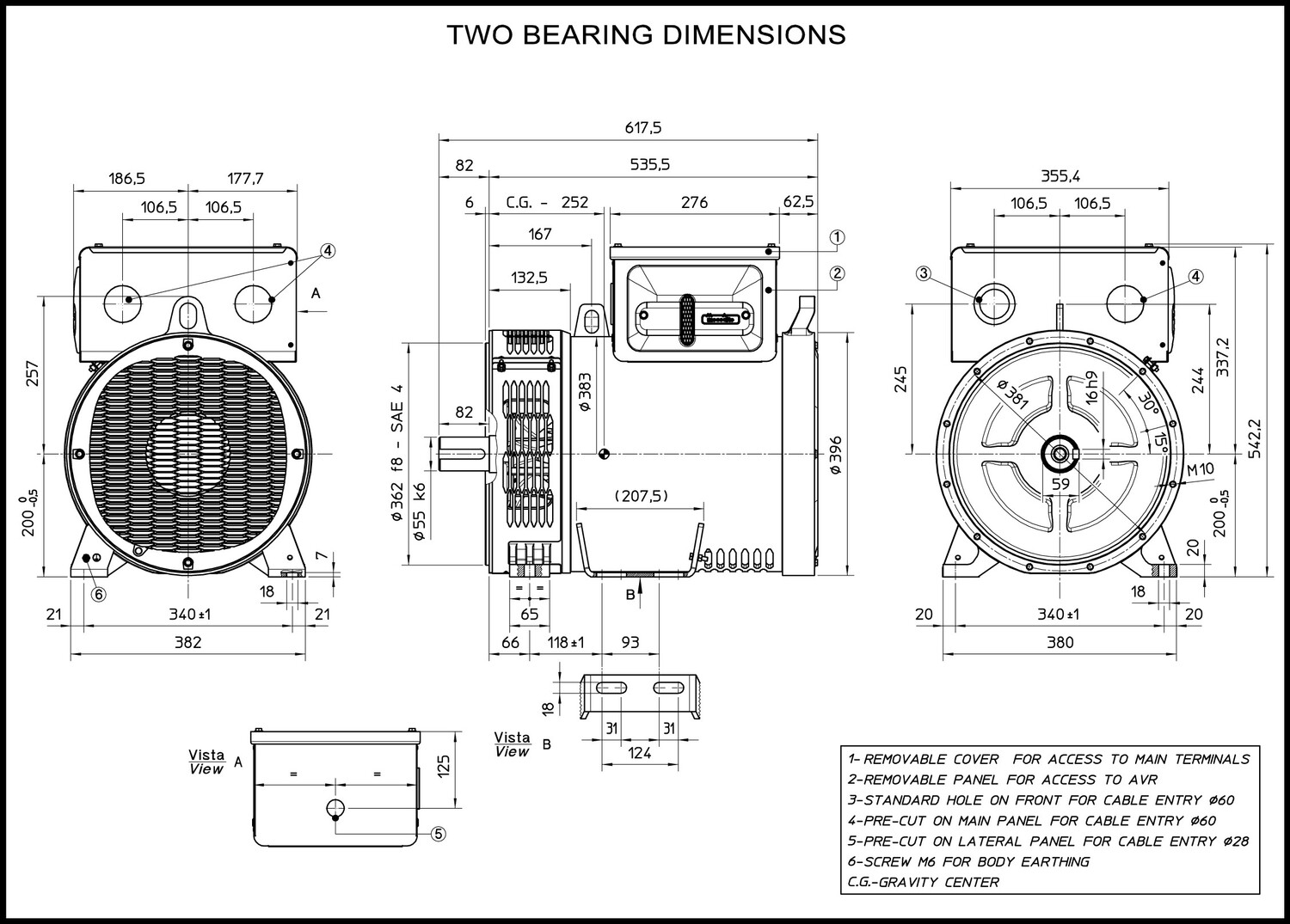

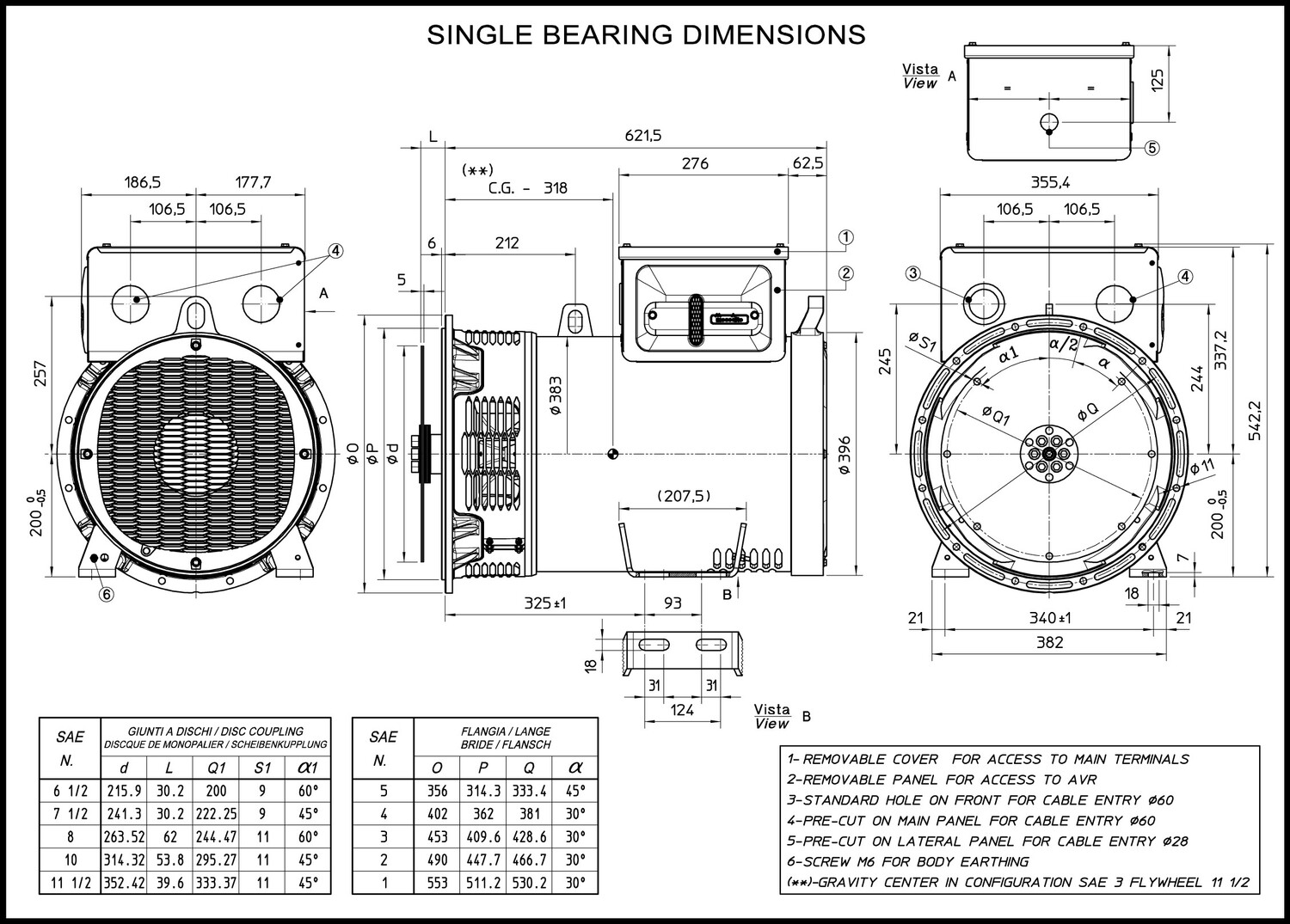

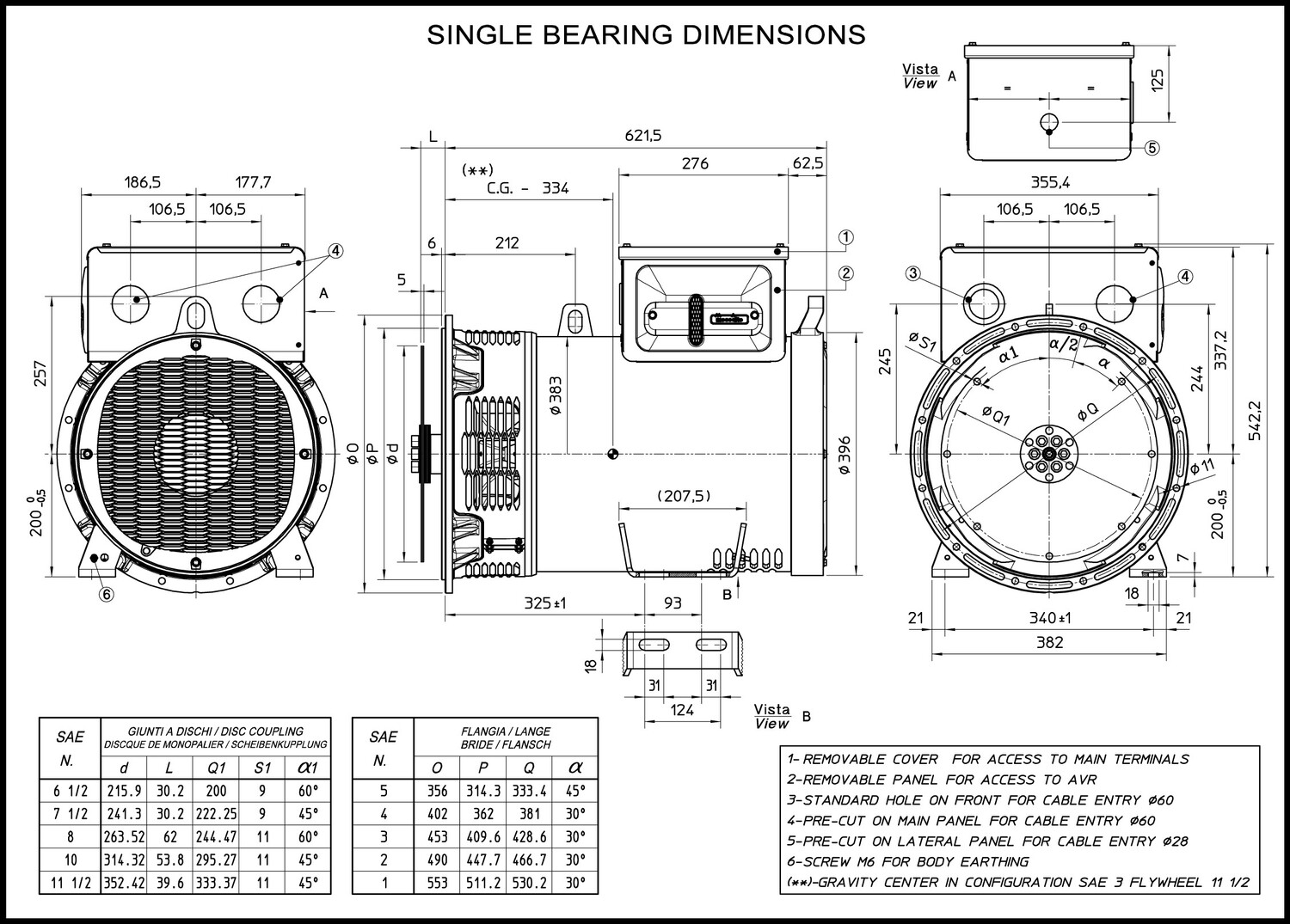

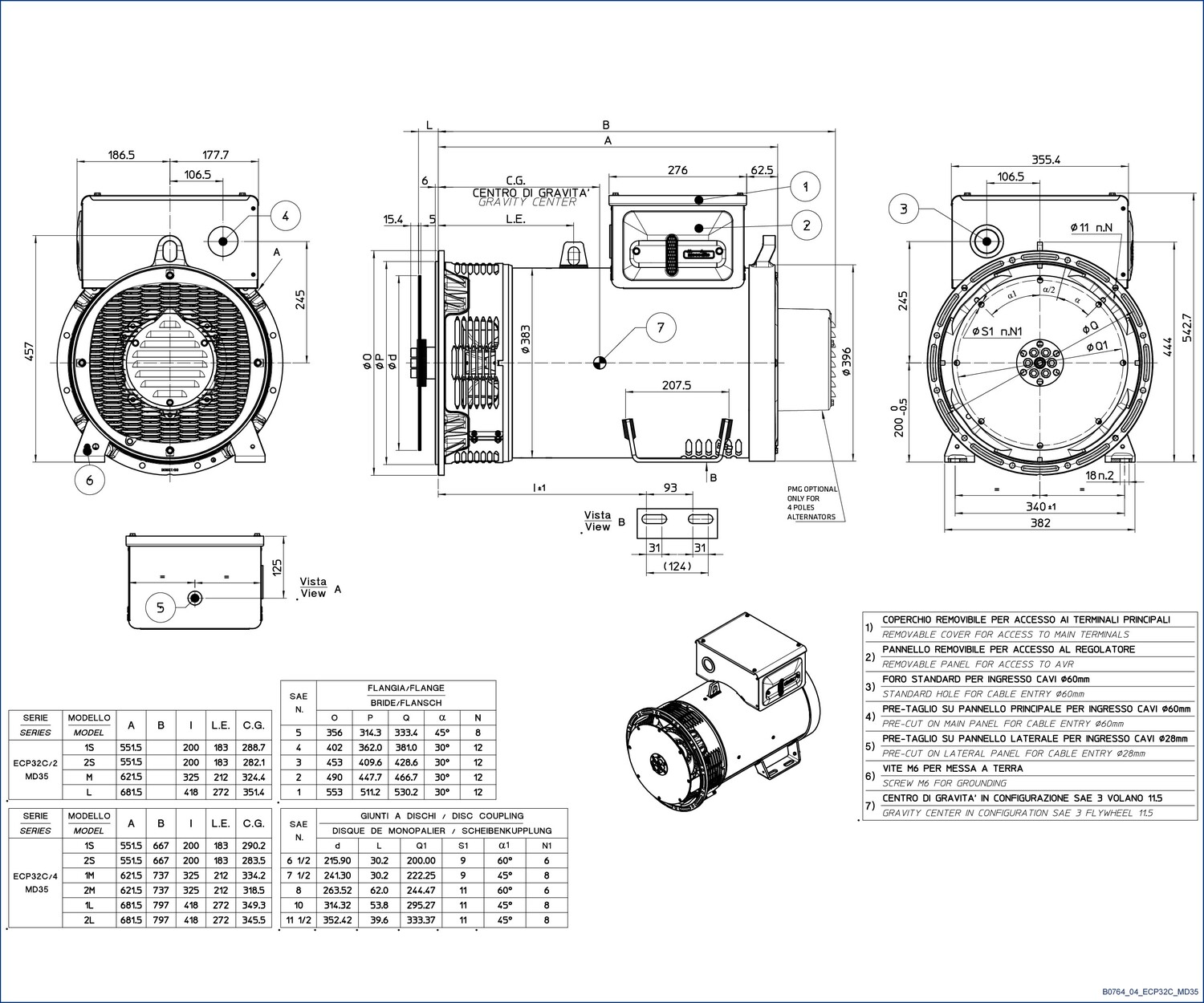

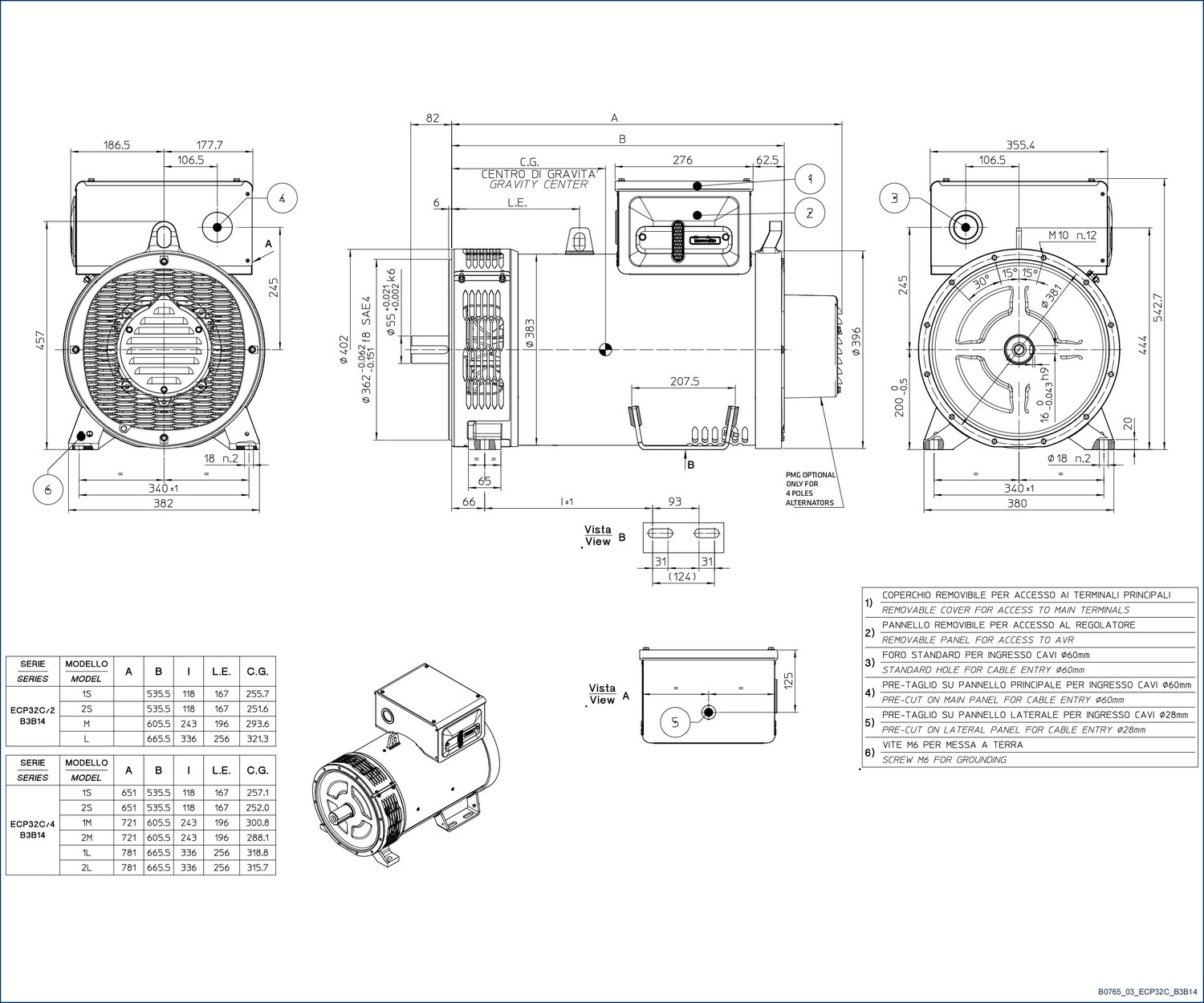

Overall Dimensions Drawings

ECP32 1S4 C

ECP32 2S4 C

ECP32 1M4 C

ECP32 2M4 C

ECP32 1L4 C

ECP32 2L4 C
