ECO49HV 4 pole generator
General Characteristics
| ECO49HV 4 A 11.5-12.0 kV pitch 5/6 | |
|---|---|
| Power range (kVA) | 4050 - 5820 |
| Winding code | T61H5S6 |
| Pole | 4 |
| Regulator | M3Ks-HD |
| Overspeed (RPM) | 2250 |
| Protection class | IP23 |
| Altitude (m) | 0-1000 |
| Models | Power range (kVA) |
|---|---|
| 3 phase | |
| ECO49HV L4 A | 4050 - 4860 |
| ECO49HV VL4 A | 4450 - 5340 |
| ECO49HV XL4 A | 4850 - 5820 |
Technical documents
DDS - Dynamic Data Support
Create your own and personalized technical datasheet according to your specifications.

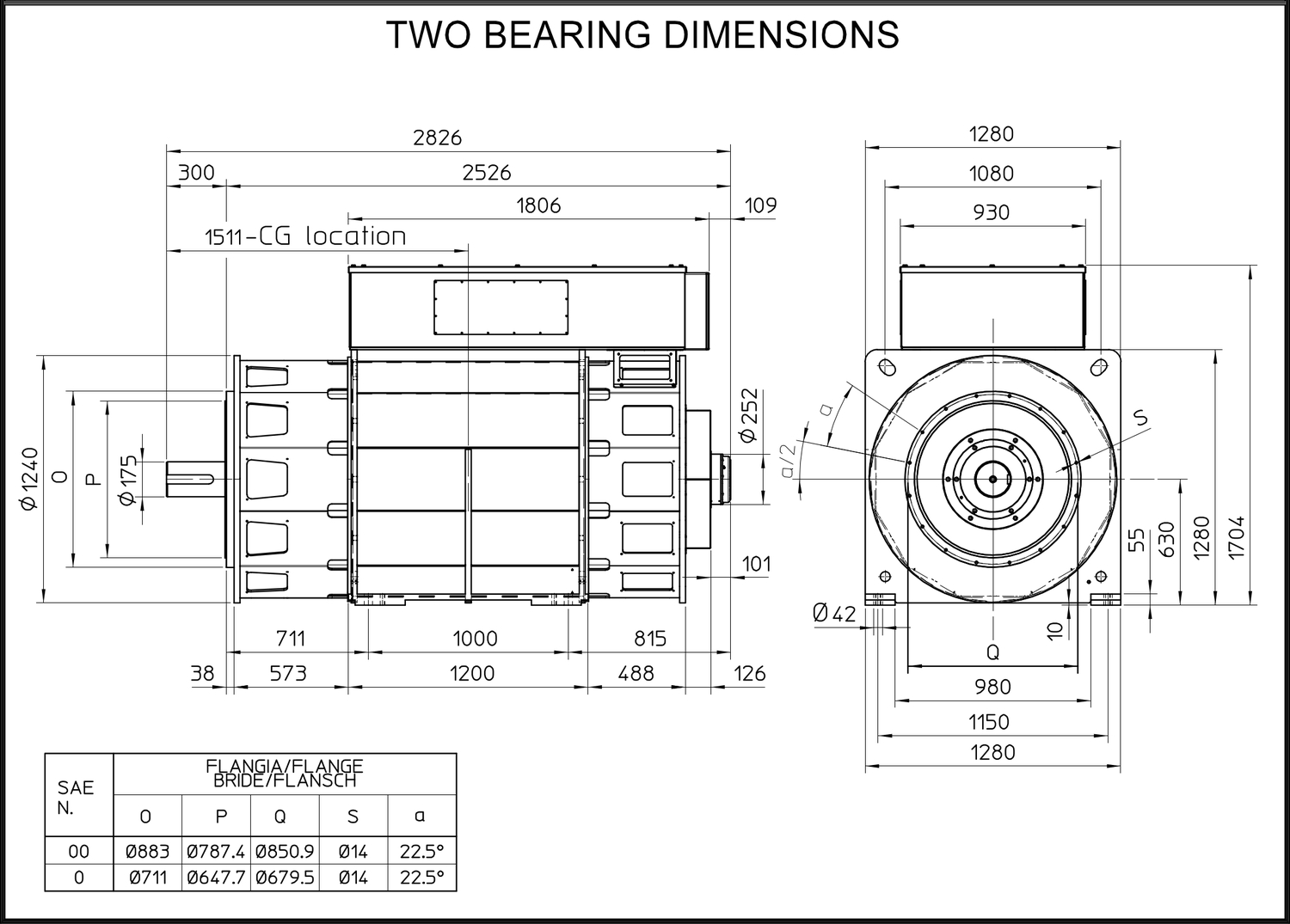

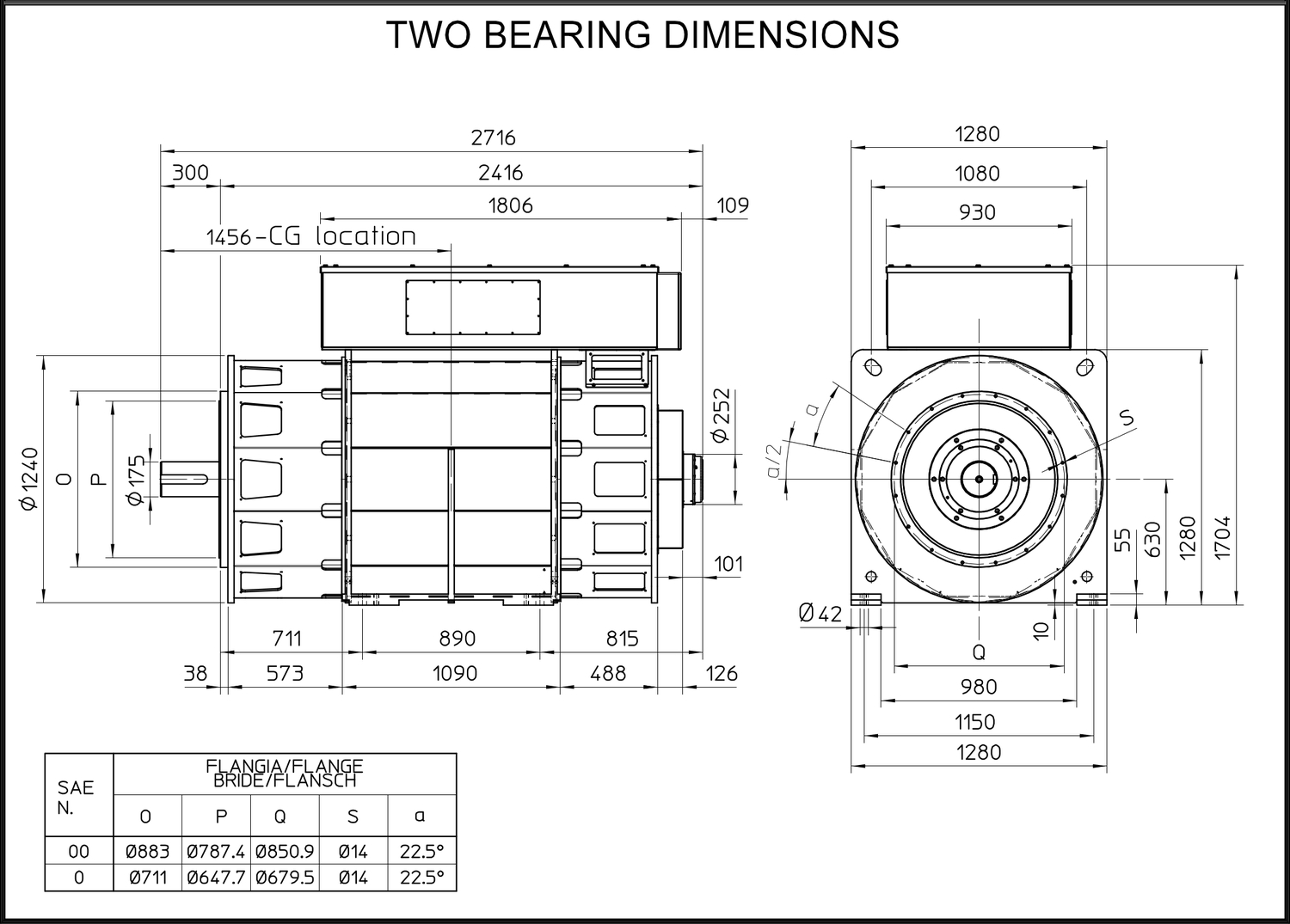

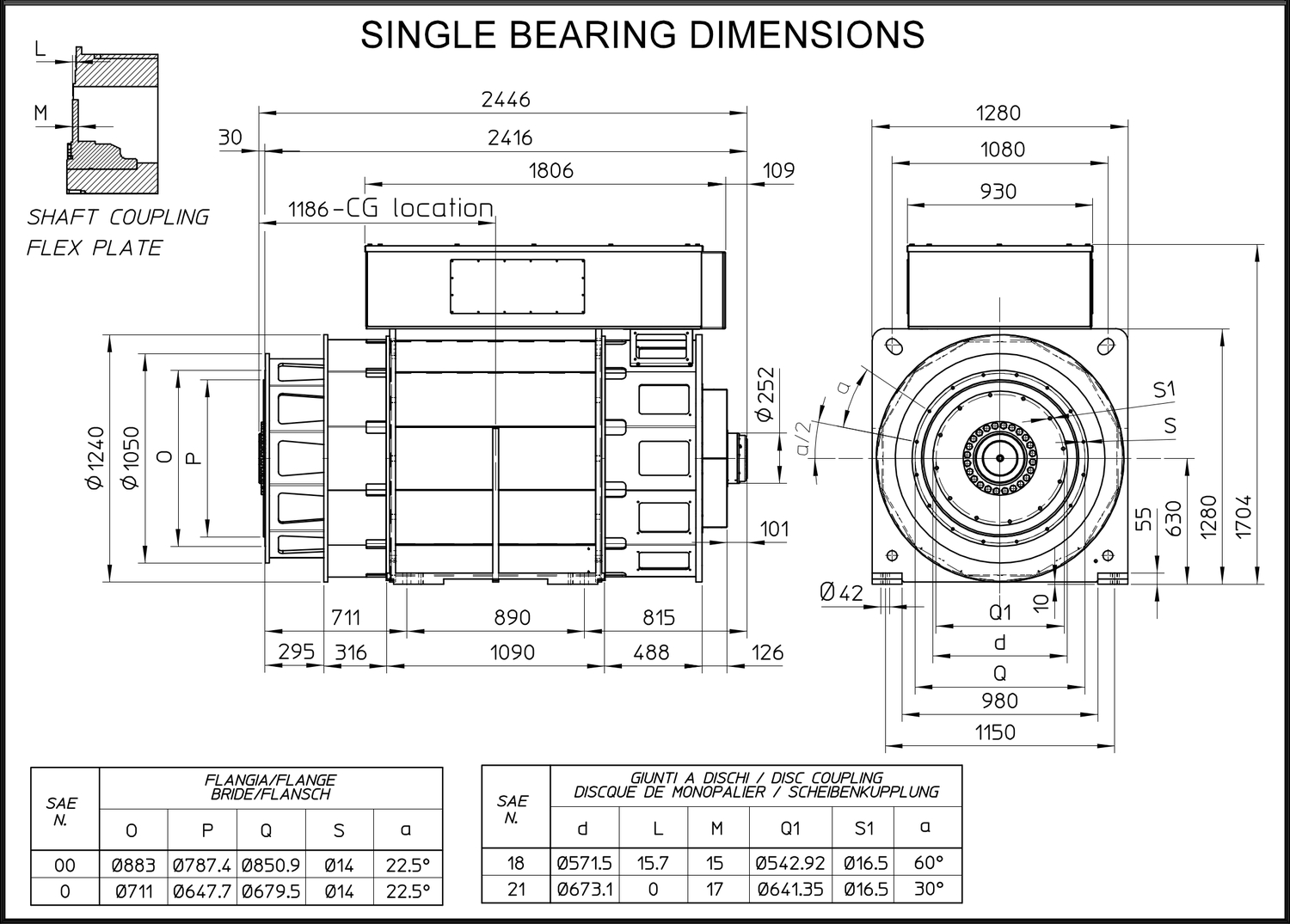

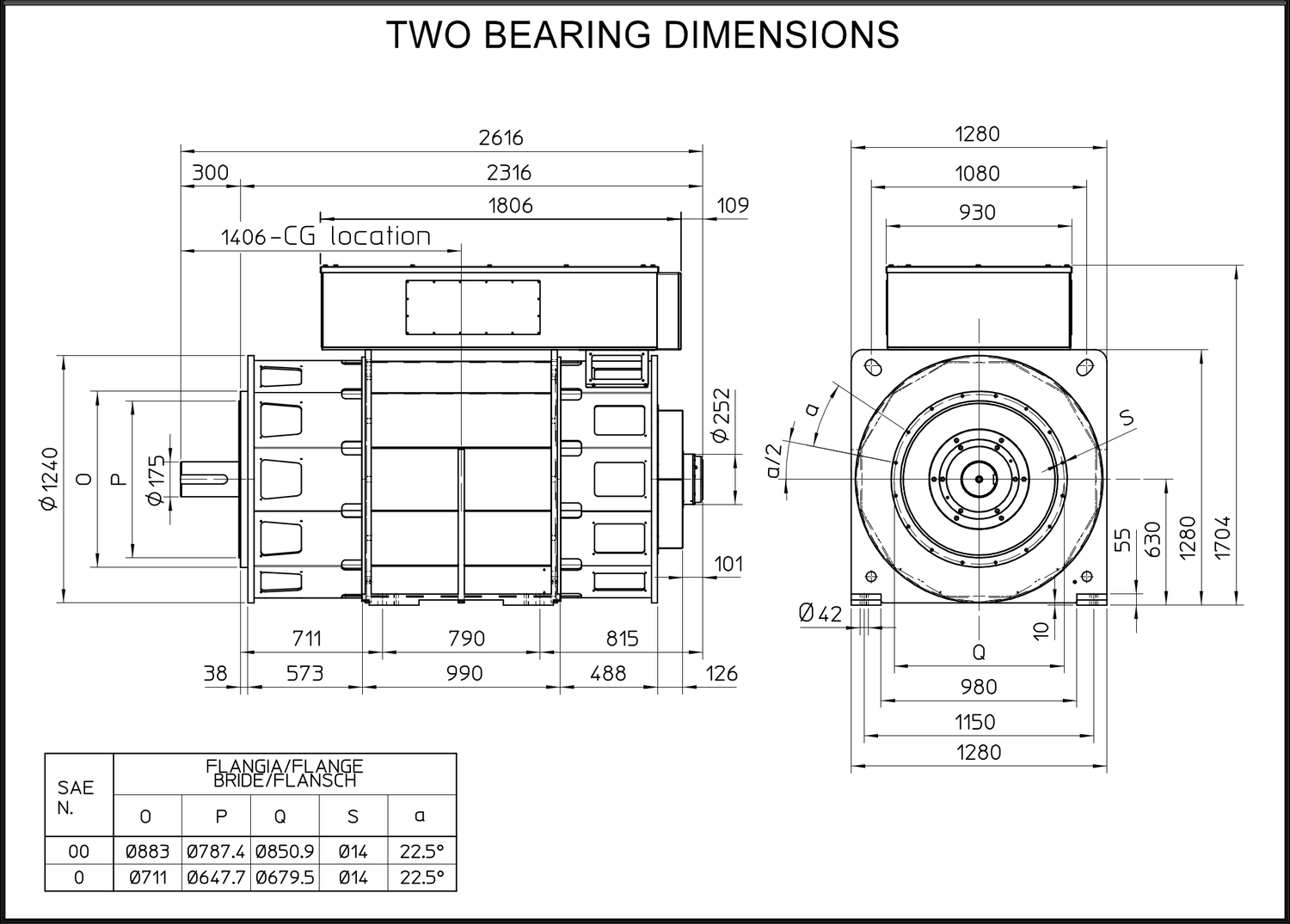

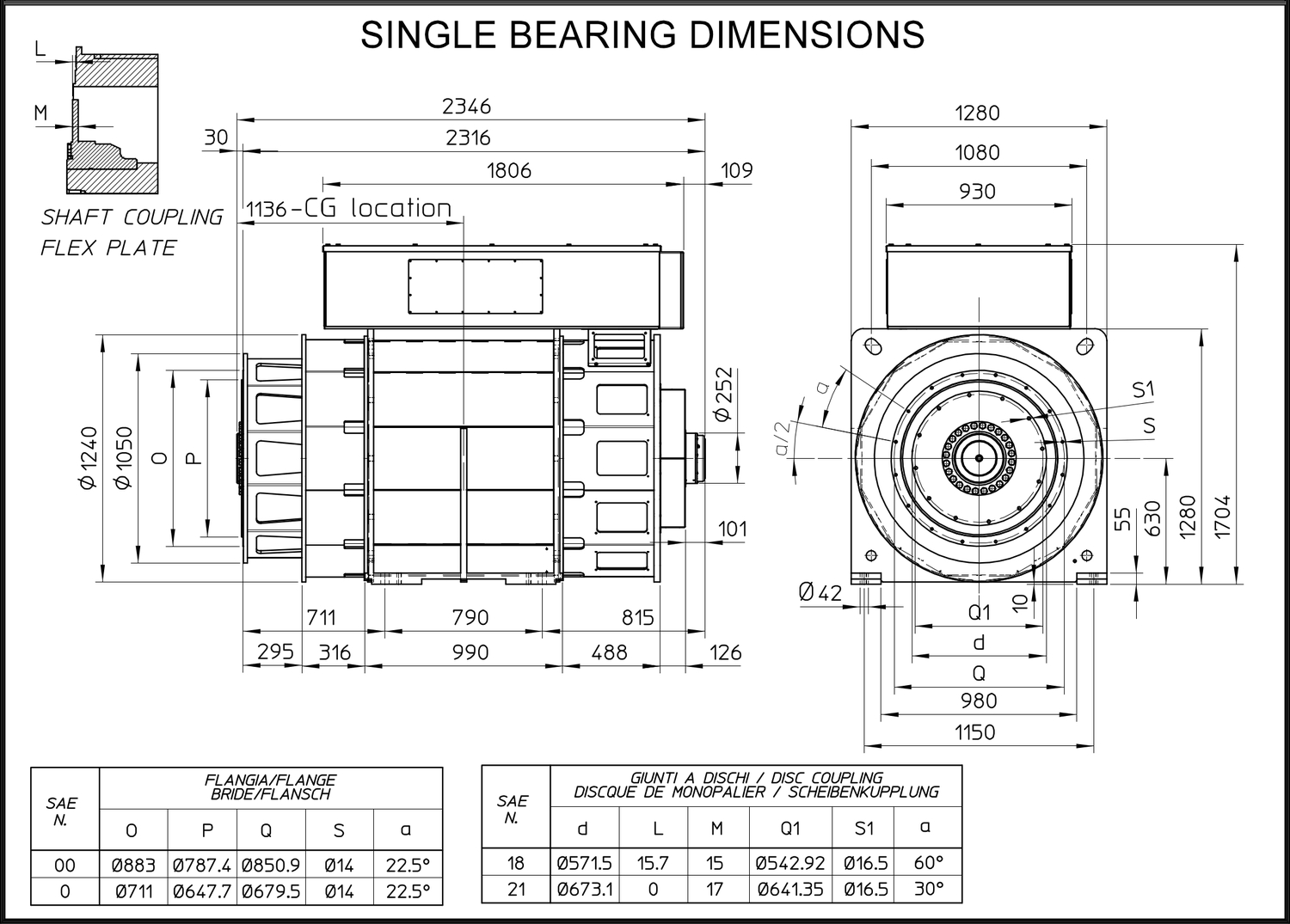

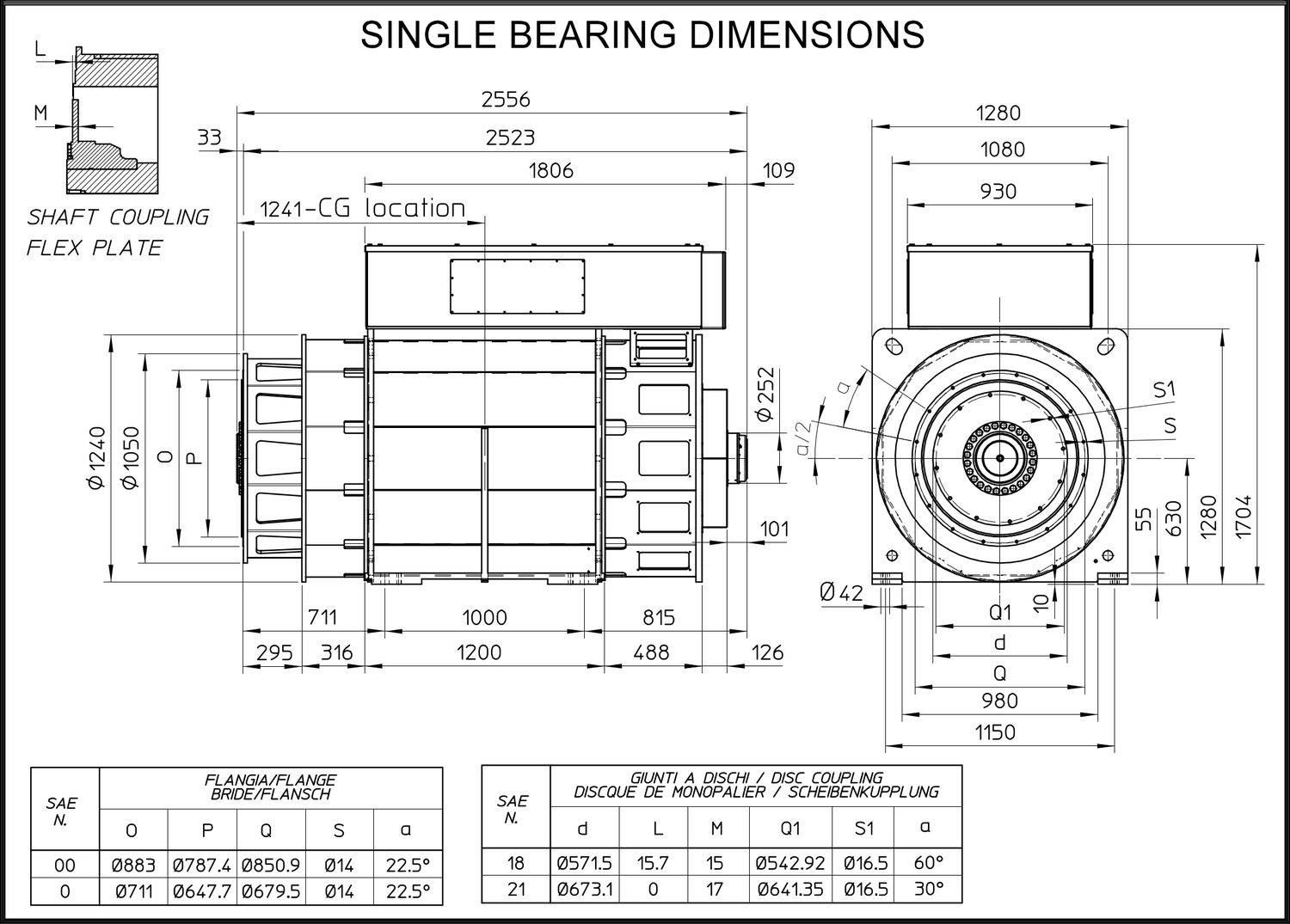

Overall Dimensions Drawings
ECO49HV L4 A
ECO49HV VL4 A
ECO49HV XL4 A
