Products / ECO46MV 4 A 6.0kV pitch 5/6

ECO46MV 4 pole generator


General Characteristics

ECO46MV 4 A 6.0kV pitch 5/6
Power range (kVA)1620 - 3240
Winding codeT66M5S6
Pole4
RegulatorDER-2/A
Overspeed (RPM)2250
Protection classIP23
Altitude (m)0-1000
ModelsPower range (kVA)
3 phase
ECO46MV 1L4 A1620 - 1940
ECO46MV 2L4 A1780 - 2140
ECO46MV 3L4 A1940 - 2330
ECO46MV 1VL4 A2270 - 2720
ECO46MV 2VL4 A2480 - 2970
ECO46MV 3VL4 A2700 - 3240


Technical documents

DDS - Dynamic Data Support

Create your own and personalized technical datasheet according to your specifications.

Get it here

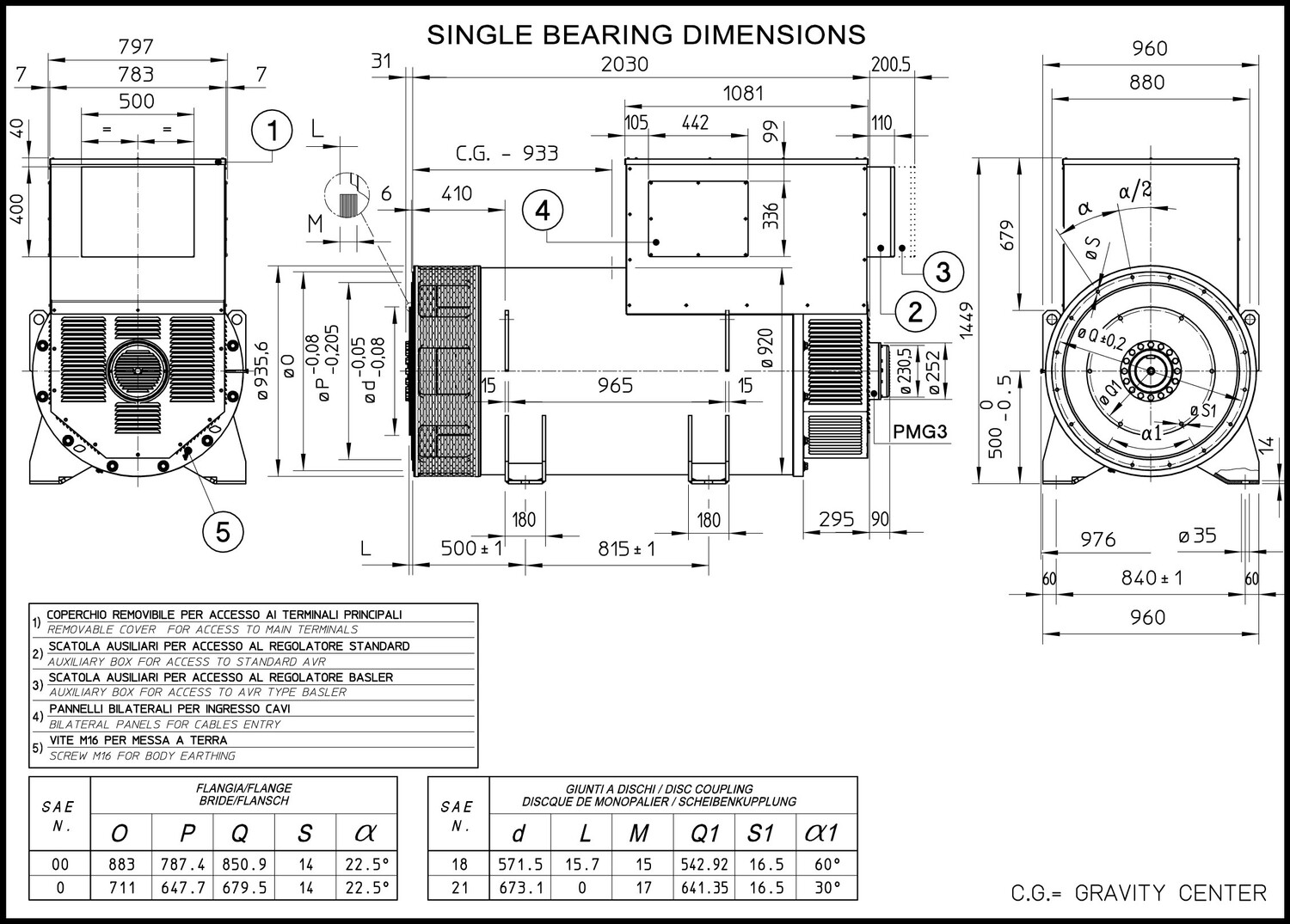

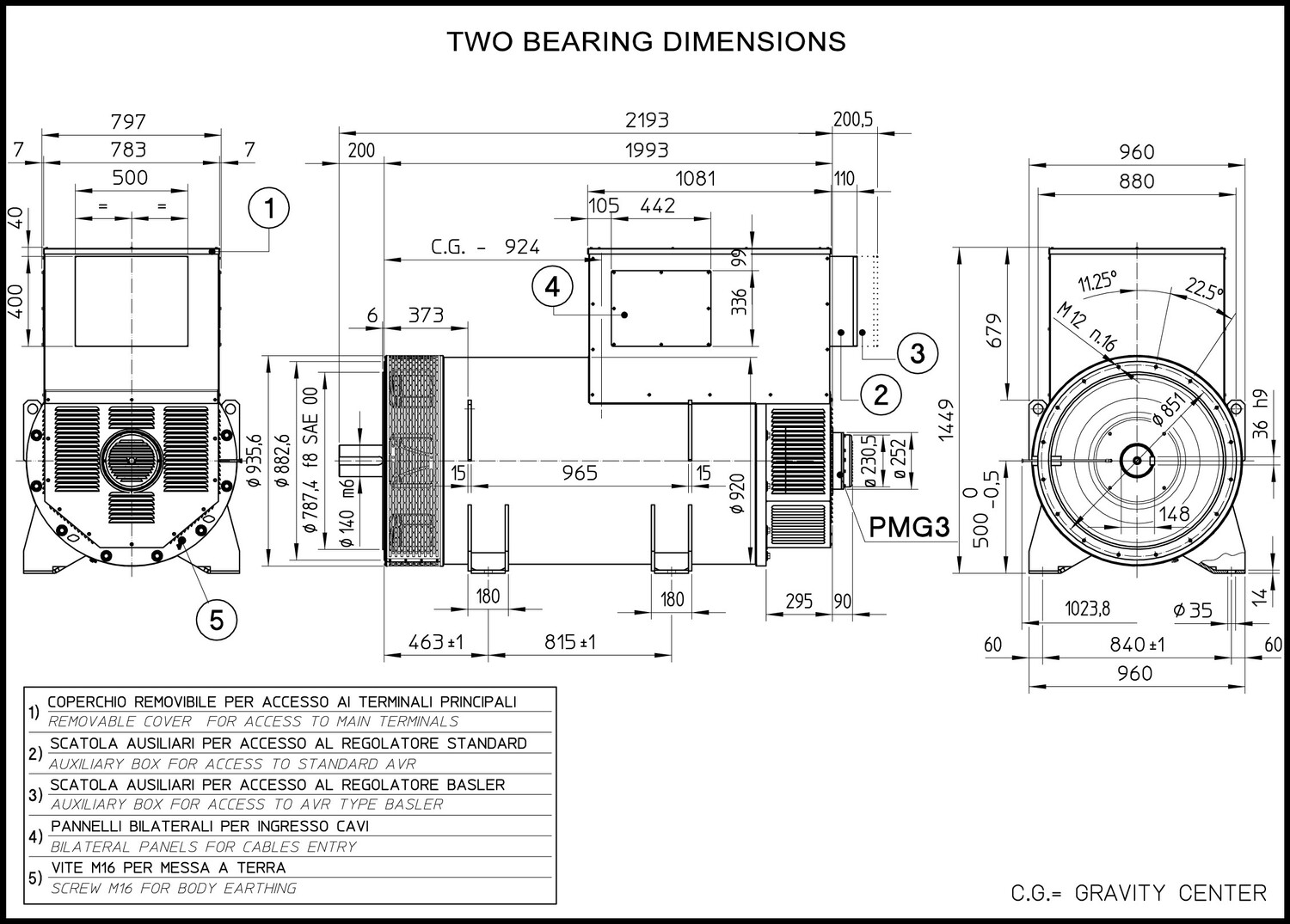

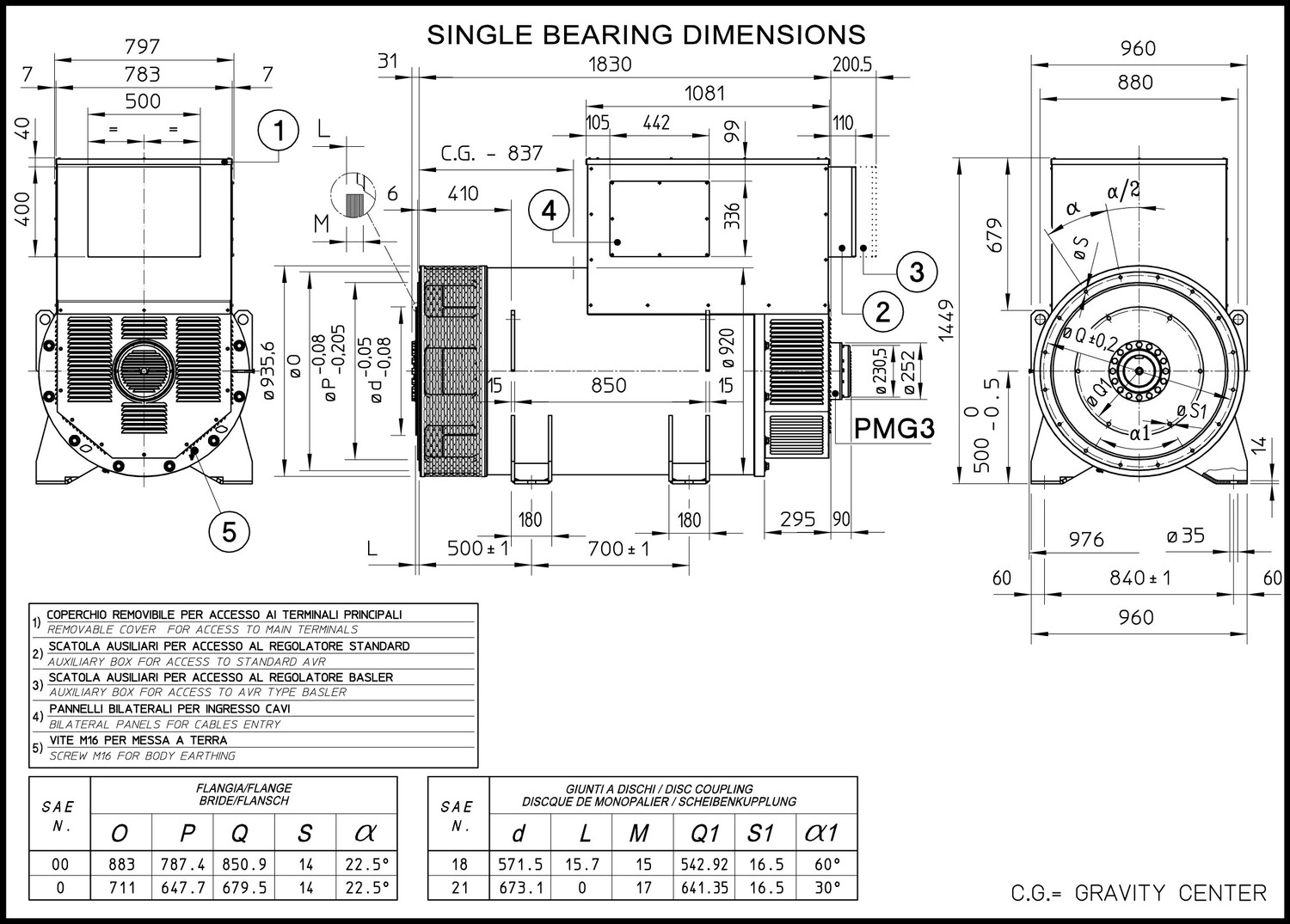

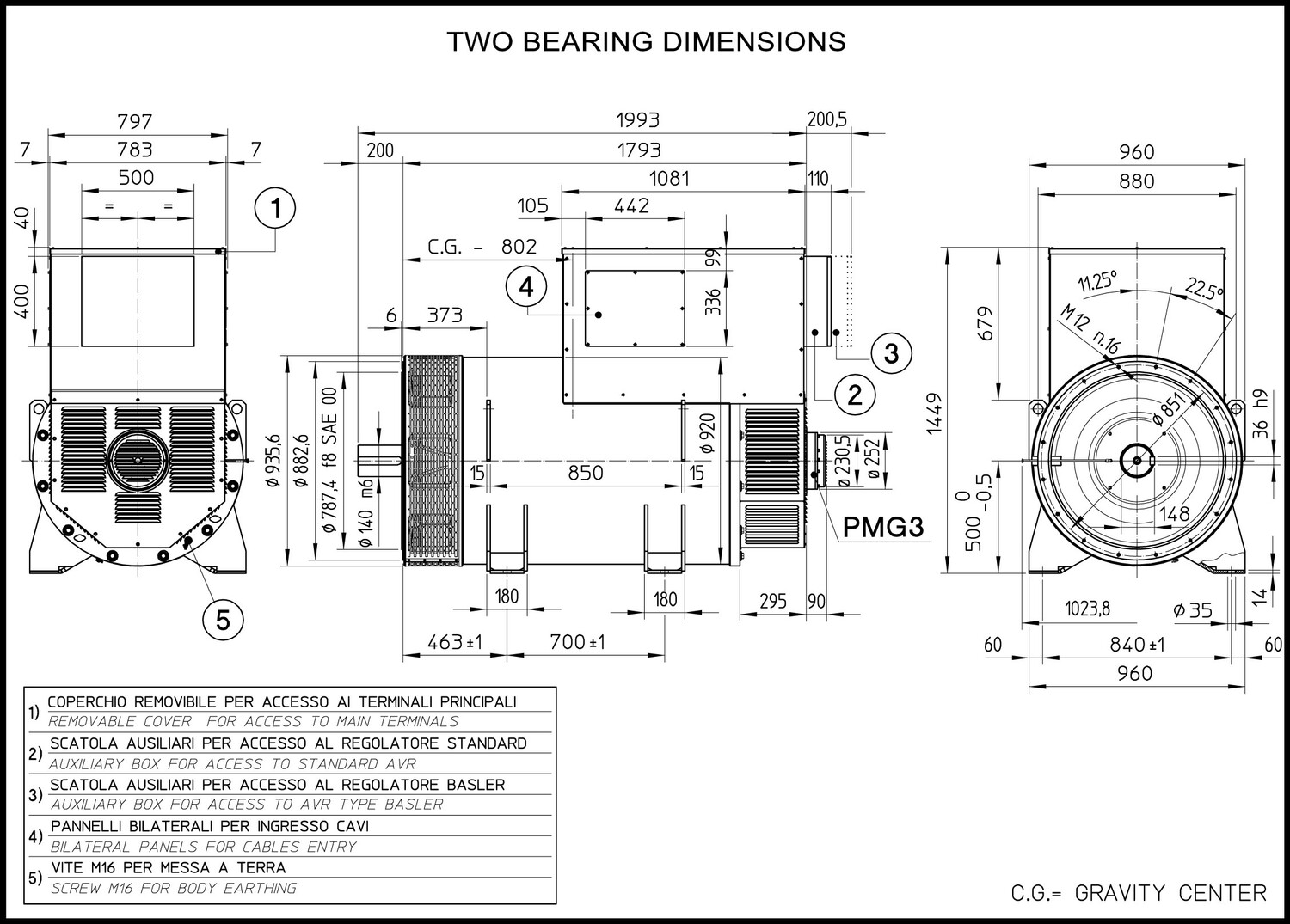

Overall Dimensions Drawings

ECO46MV 1L4 A

ECO46MV 2L4 A

ECO46MV 3L4 A

ECO46MV 1VL4 A

ECO46MV 2VL4 A

ECO46MV 3VL4 A
