ECO47HV 4 pole generator
General Characteristics
| ECO47HV 4 A 11.5-13.8kV pitch 2/3 | |
|---|---|
| Power range (kVA) | 2750 - 4236 |
| Winding code | T61H6S3 |
| Pole | 4 |
| Regulator | DER-2/A |
| Overspeed (RPM) | 2250 |
| Protection class | IP23 |
| Altitude (m) | 0-1000 |
| Models | Power range (kVA) |
|---|---|
| 3 phase | |
| ECO47HV 1M4 A | 2750 - 3300 |
| ECO47HV 2M4 A | 3100 - 3720 |
| ECO47HV 1L4 A | 3530 - 4236 |
Technical documents
DDS - Dynamic Data Support
Create your own and personalized technical datasheet according to your specifications.

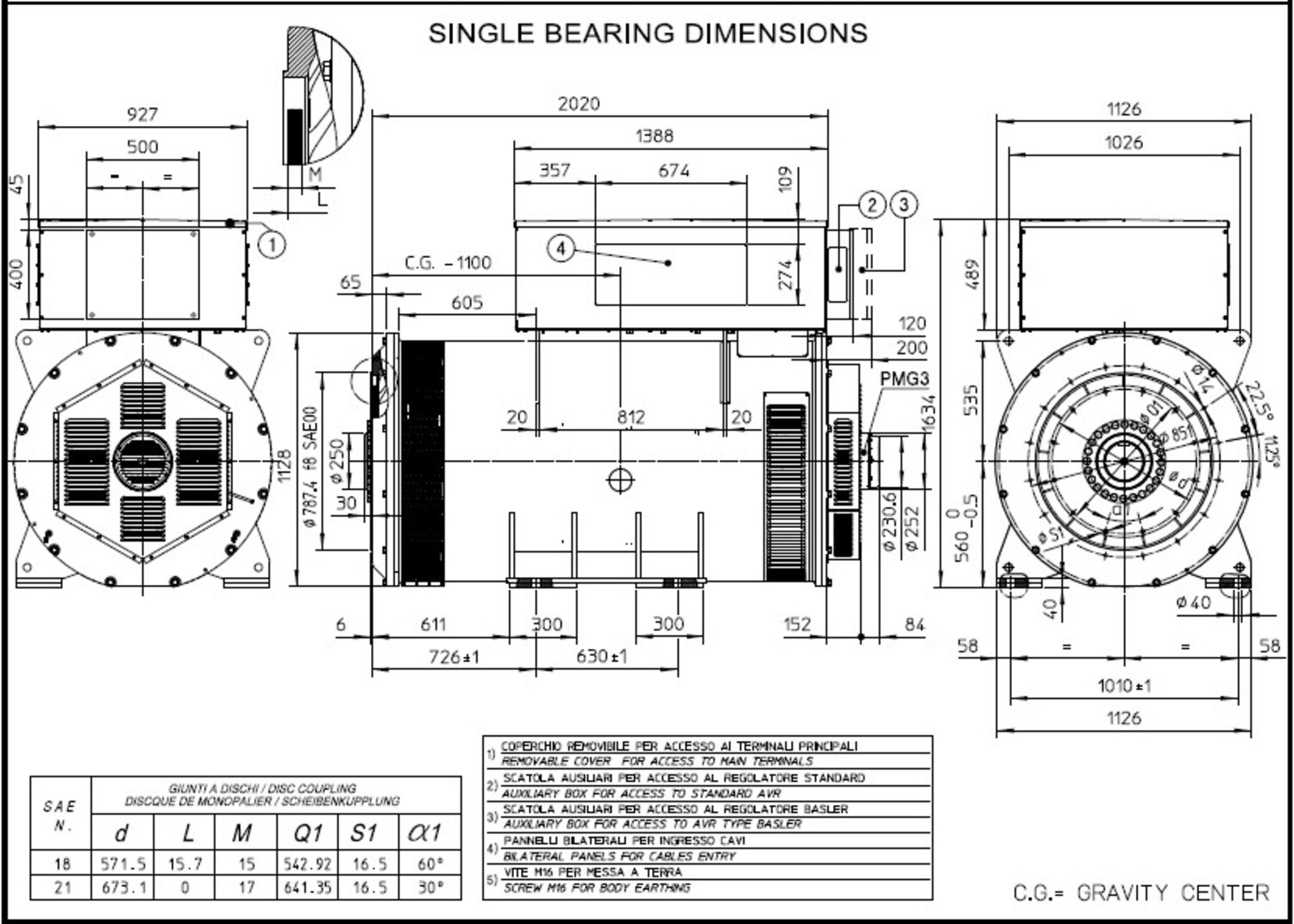

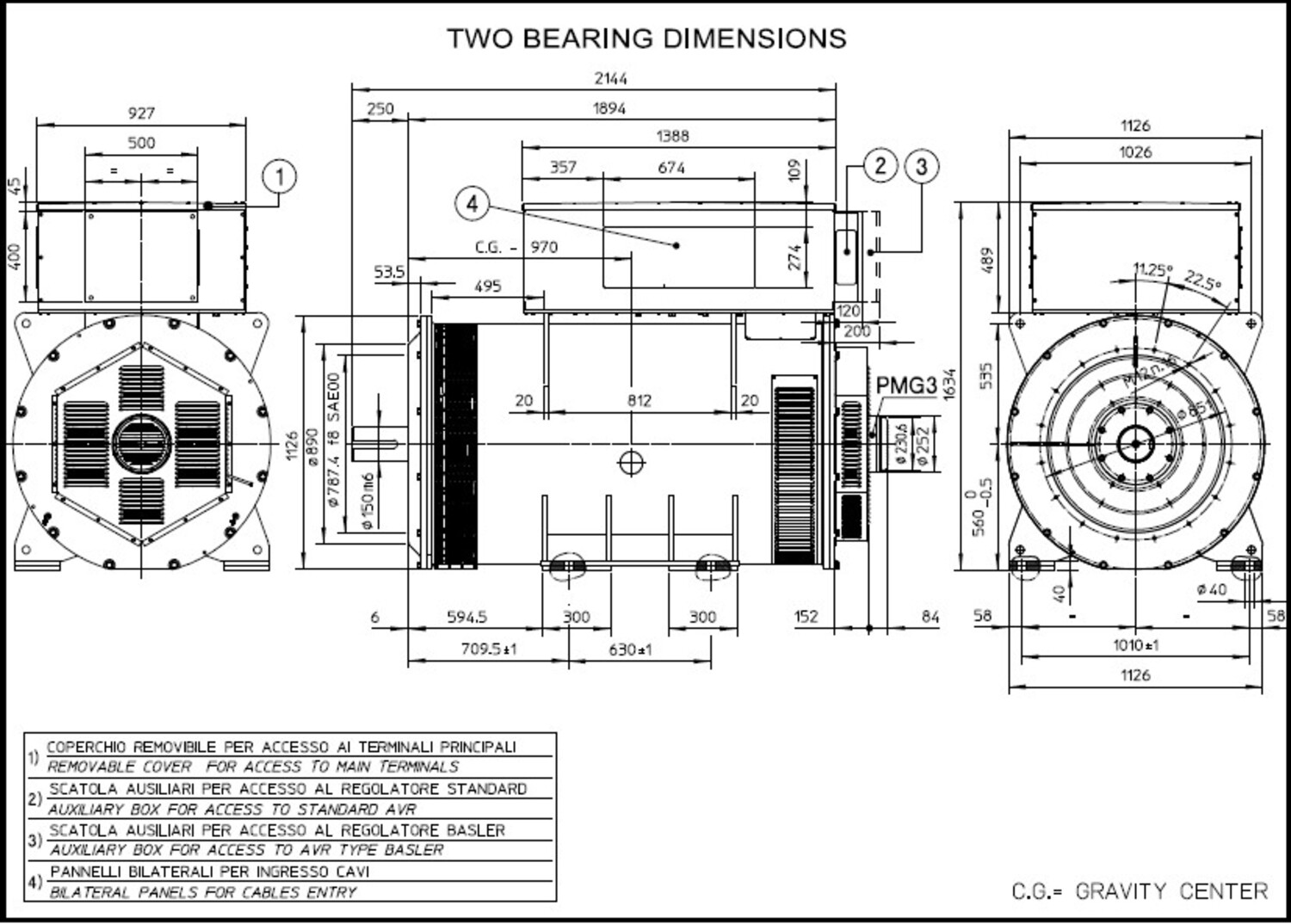

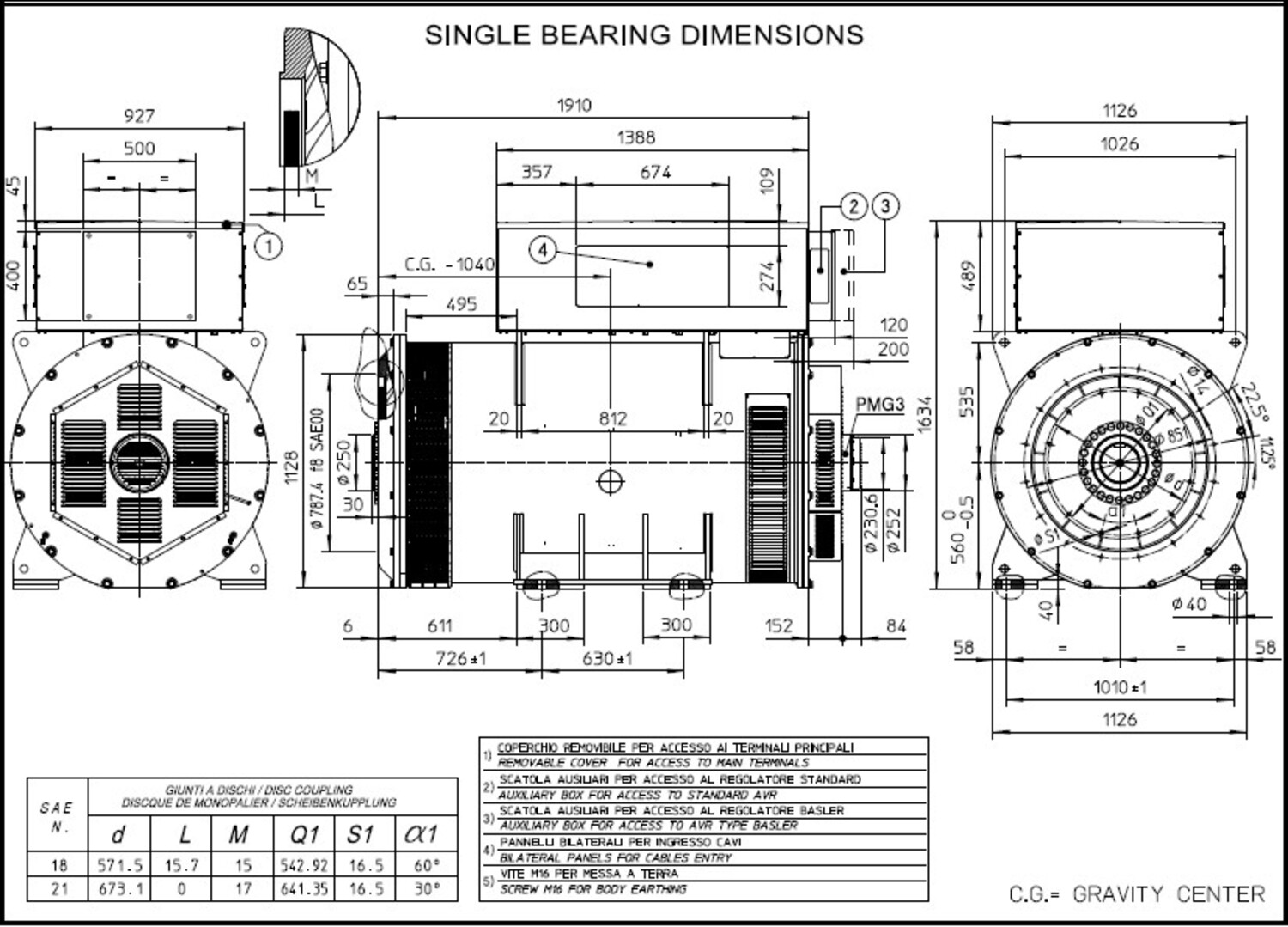

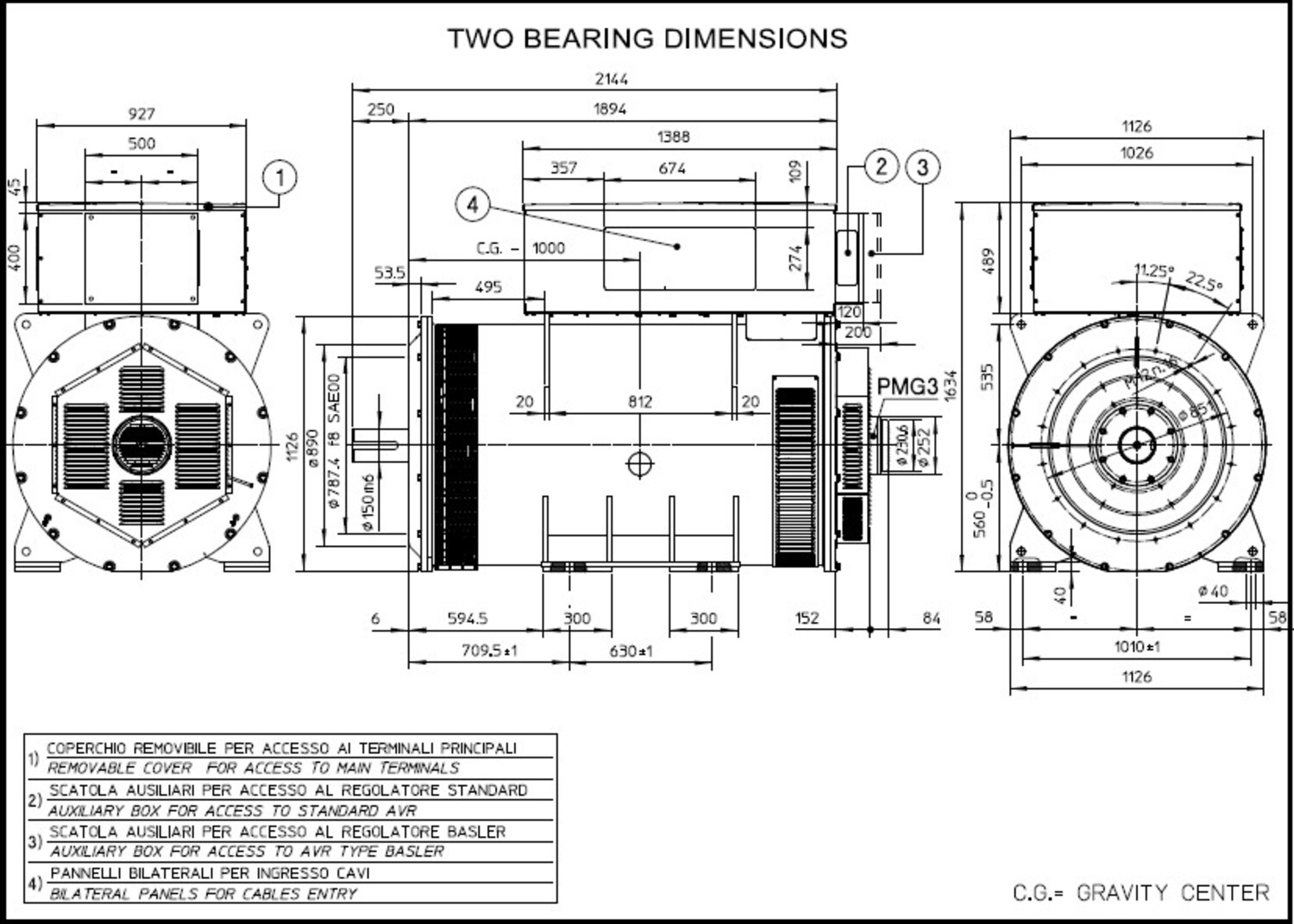

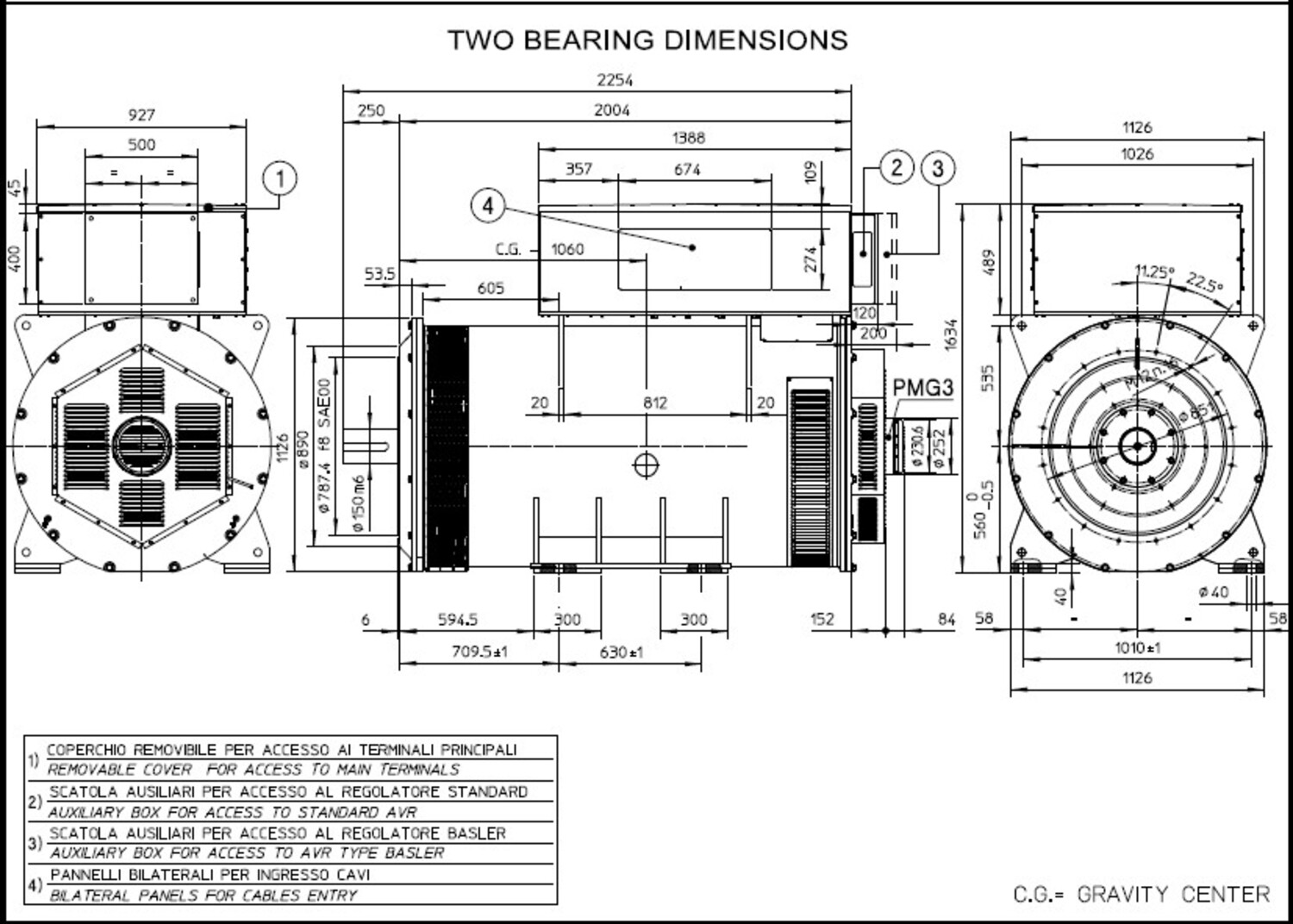

Overall Dimensions Drawings
ECO47HV 1M4 A
ECO47HV 2M4 A
ECO47HV 1L4 A
