ECO47HV 4 pole generator
General Characteristics
| ECO47MV 4 A 10.0-13.2kV pitch 5/6 | |
|---|---|
| Power range (kVA) | 3160 - 4800 |
| Winding code | T60H6S6 |
| Pole | 4 |
| Regulator | DER-2/A |
| Overspeed (RPM) | 2250 |
| Protection class | IP23 |
| Altitude (m) | 0-1000 |
| Models | Power range (kVA) |
|---|---|
| 3 phase | |
| ECO47HV 1M4 A | 3160 - 3792 |
| ECO47HV 2M4 A | 3600 - 4320 |
| ECO47HV 1L4 A | 4000 - 4800 |
Technical documents
DDS - Dynamic Data Support
Create your own and personalized technical datasheet according to your specifications.

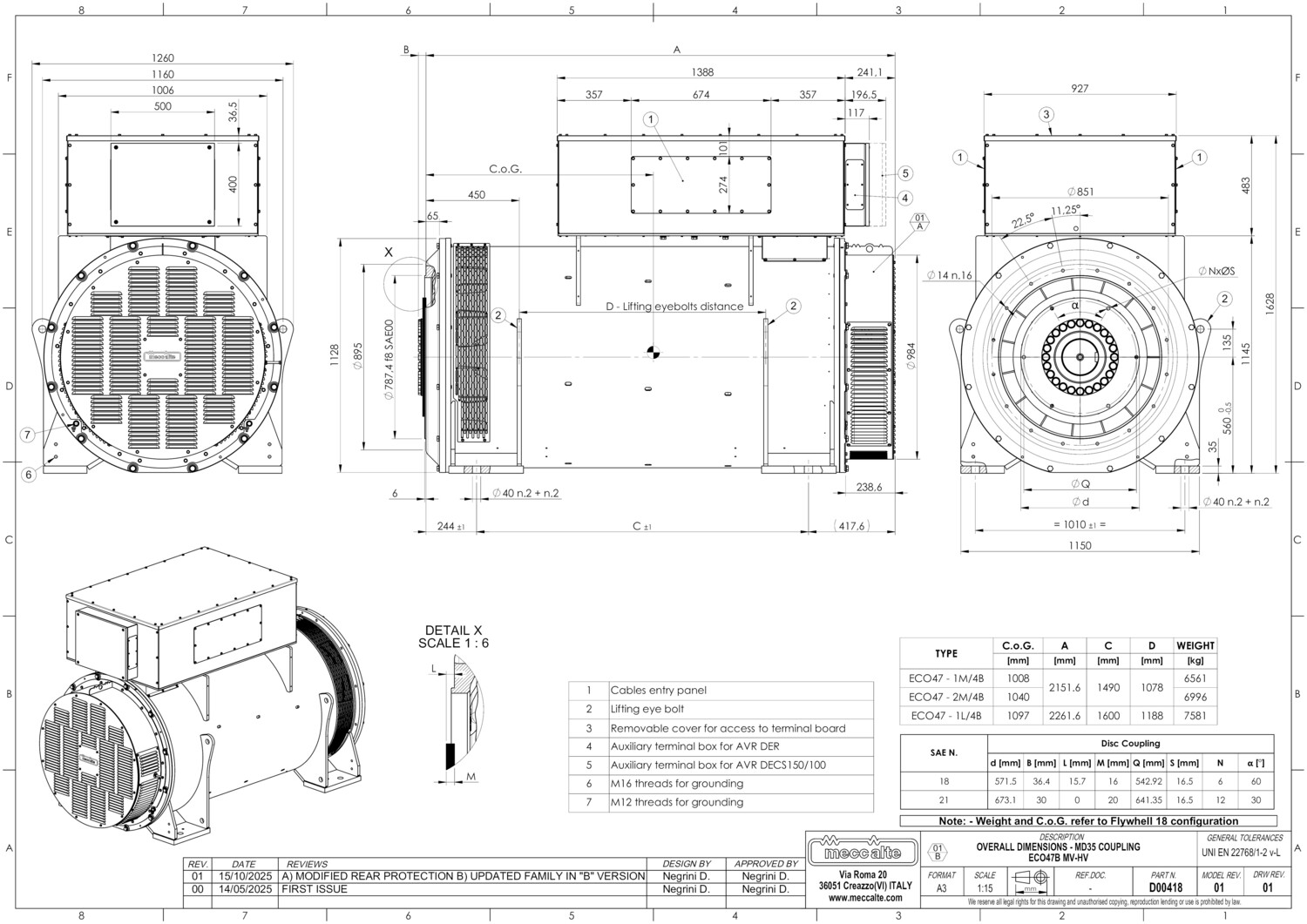

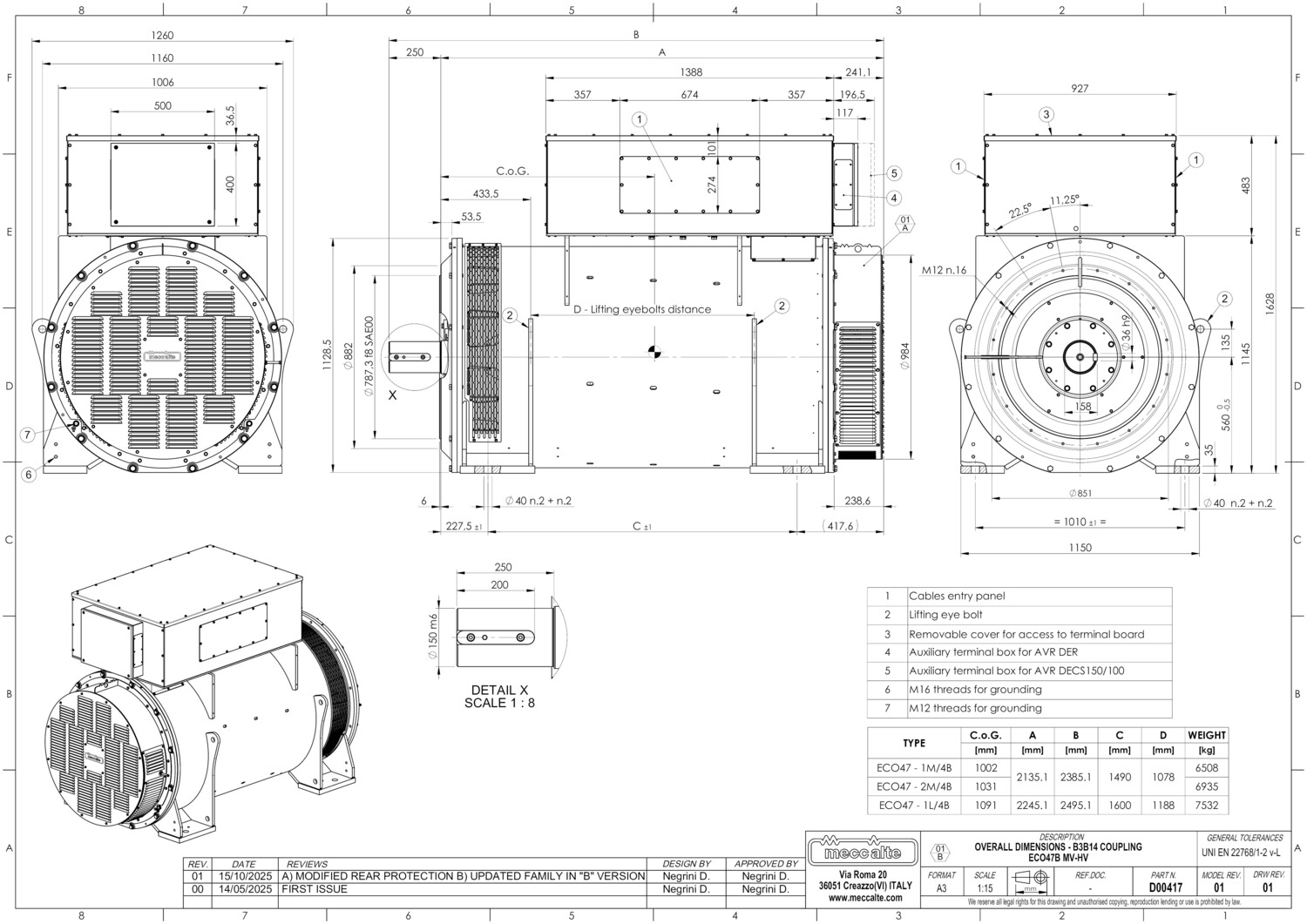

Overall Dimensions Drawings
ECO47HV 1M4 A
ECO47HV 2M4 A
ECO47HV 1L4 A
