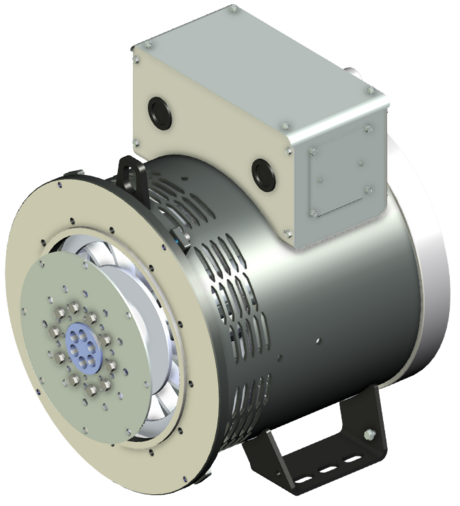

NPE34
4 pole generator
The NPE34 range has many product features designed into the alternator.
Self-regulation is obtained through a digital electronic regulator that is fed by an auxiliary winding.
We guarantee an almost constant supply from the generator – under any possible operating condition.
A rotating inductor is fitted with a damper cage.
The windings have a 2/3 pitch in order to reduce the harmonic content of voltage.
The entire series is manufactured according to, and complies with, the most common specifications such as CEI 2-3, IEC 34-1, EN 60034-1, VDE 0530, BS 4999-5000, CAN/ CSA-C22.2 No14-95- No100-95.
General Characteristics
| NPE34 4 pole | |
|---|---|
| Power range (kVA) | 43 - 105 |
| Winding code | T0405S3 |
| Pole | 4 |
| Regulator | DSR |
| Overspeed (RPM) | 2250 |
| Protection class | IP23 |
| Altitude (m) | 0-1000 |
| Models | Power range (kVA) |
|---|---|
| 3 phase | |
| NPE34 2S4 C | 50 - 60 |
| NPE34 1S4 C | 43 - 52 |
| NPE34 1M4 C | 60 - 72 |
| NPE34 2M4 C | 70 - 84 |
| NPE34 1L4 C | 90 - 105 |
