NPE Space Saver / NPE31 2 pole (1phase Dedicated)

NPE31

2 pole generator
1 phase dedicated

The NPE31 range has many product features designed into the alternator.
Self-regulation is obtained through a digital electronic regulator that is fed by an auxiliary winding.
We guarantee an almost constant supply from the generator – under any possible operating condition.
A rotating inductor is fitted with a damper cage.
The windings have a 2/3 pitch in order to reduce the harmonic content of voltage.
The entire series is manufactured according to, and complies with, the most common specifications such as CEI 2-3, IEC 34-1, EN 60034-1, VDE 0530, BS 4999-5000, CAN/ CSA-C22.2 No14-95- No100-95.



General Characteristics

NPE31 2 pole (1phase Dedicated)
Power range (kVA) 5.6 - 30
Winding code T4246B3
Pole 2
Regulator DSR
Overspeed (RPM) 4500
Protection class IP21
Altitude (m) 0-1000
Models Power range (kVA)
1 phase
NPE31-A/2 5.6 - 6.7
NPE31-B/2 8 - 9.2
NPE31-C/2 12 - 14.4
NPE31-D/2 15 - 18
NPE31-E/2 21 - 25.2
NPE31-F/2 25 - 30


Technical documents

DDS - Dynamic Data Support

Create your own and personalized technical datasheet according to your specifications.

Get it here

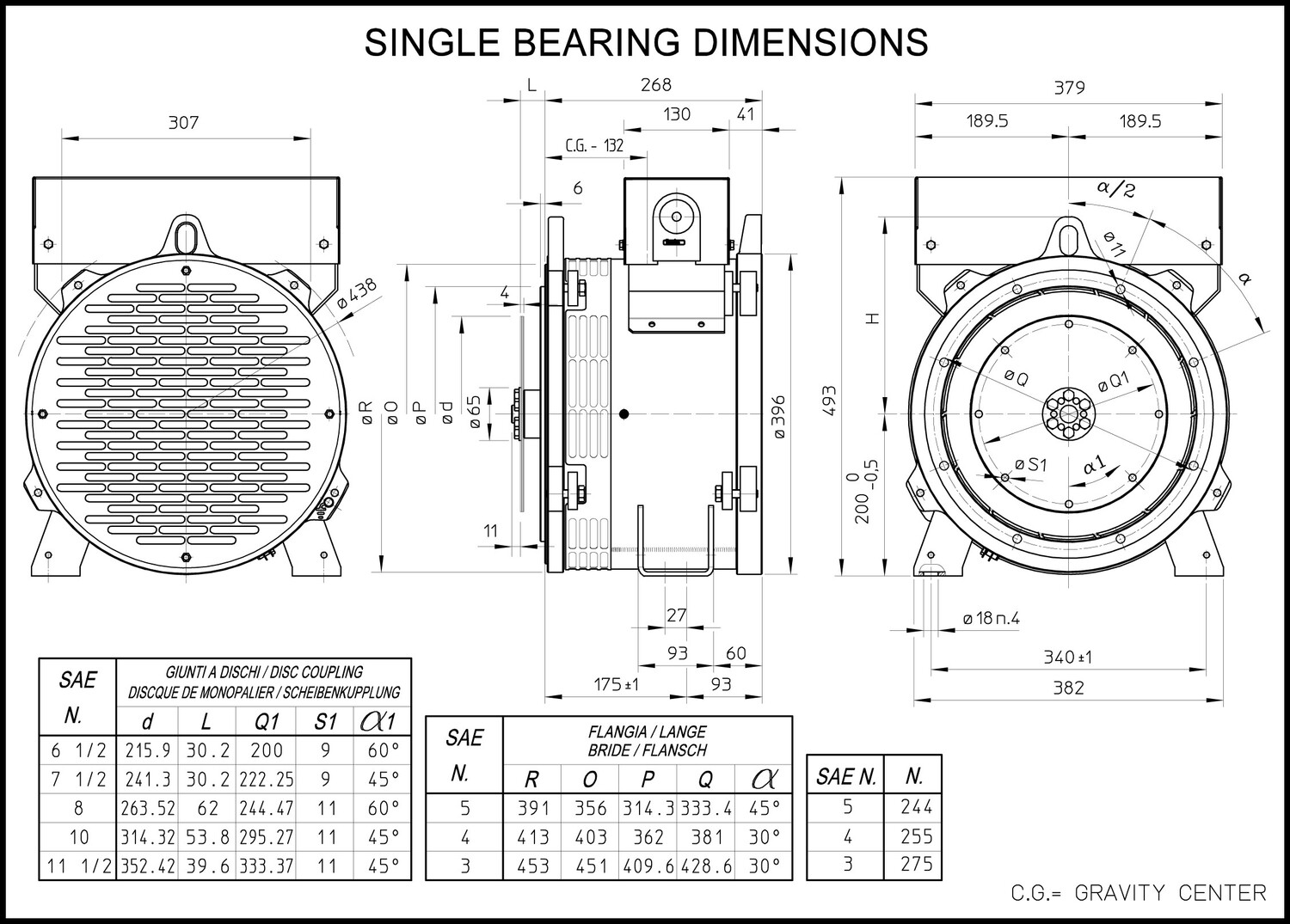

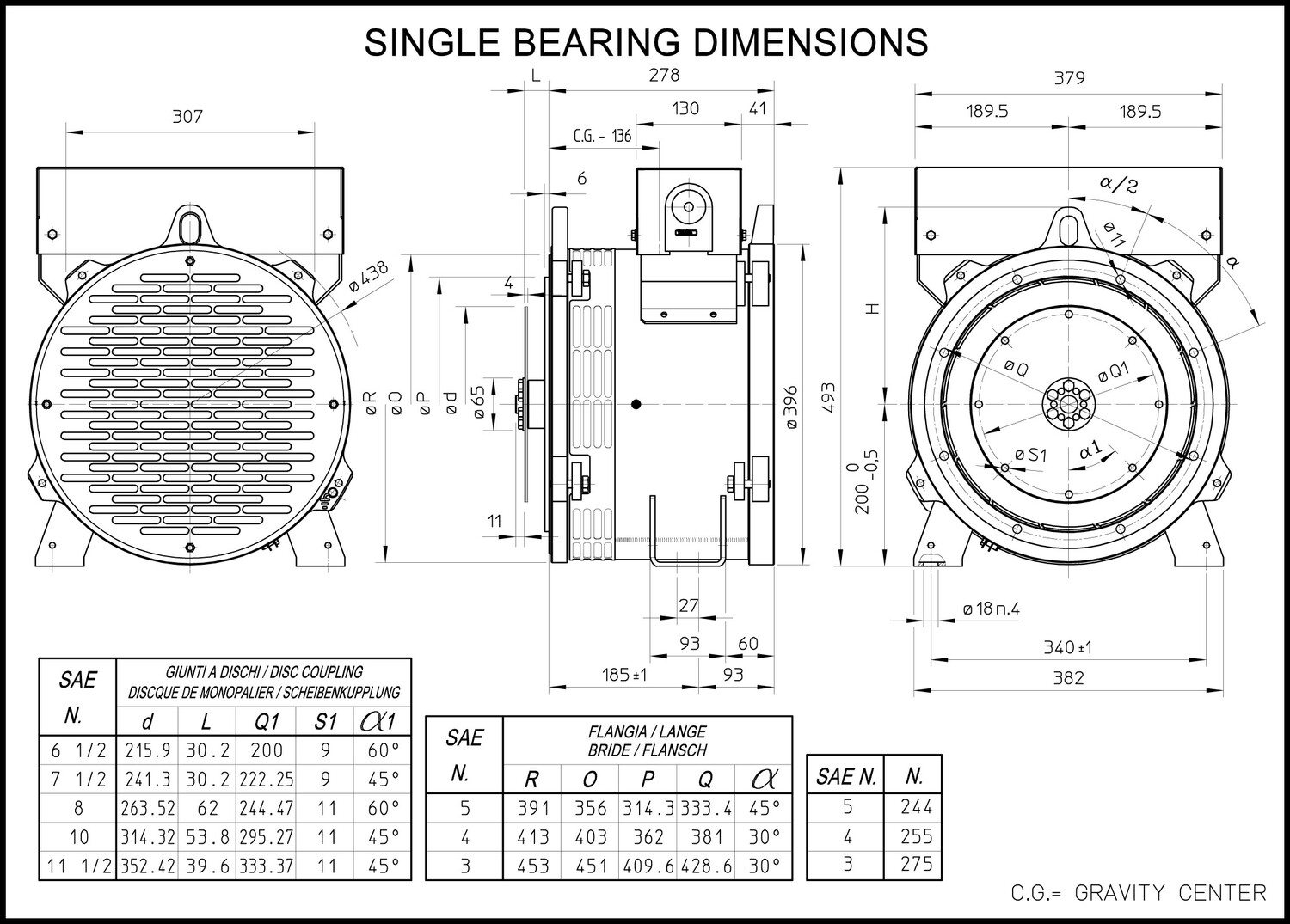

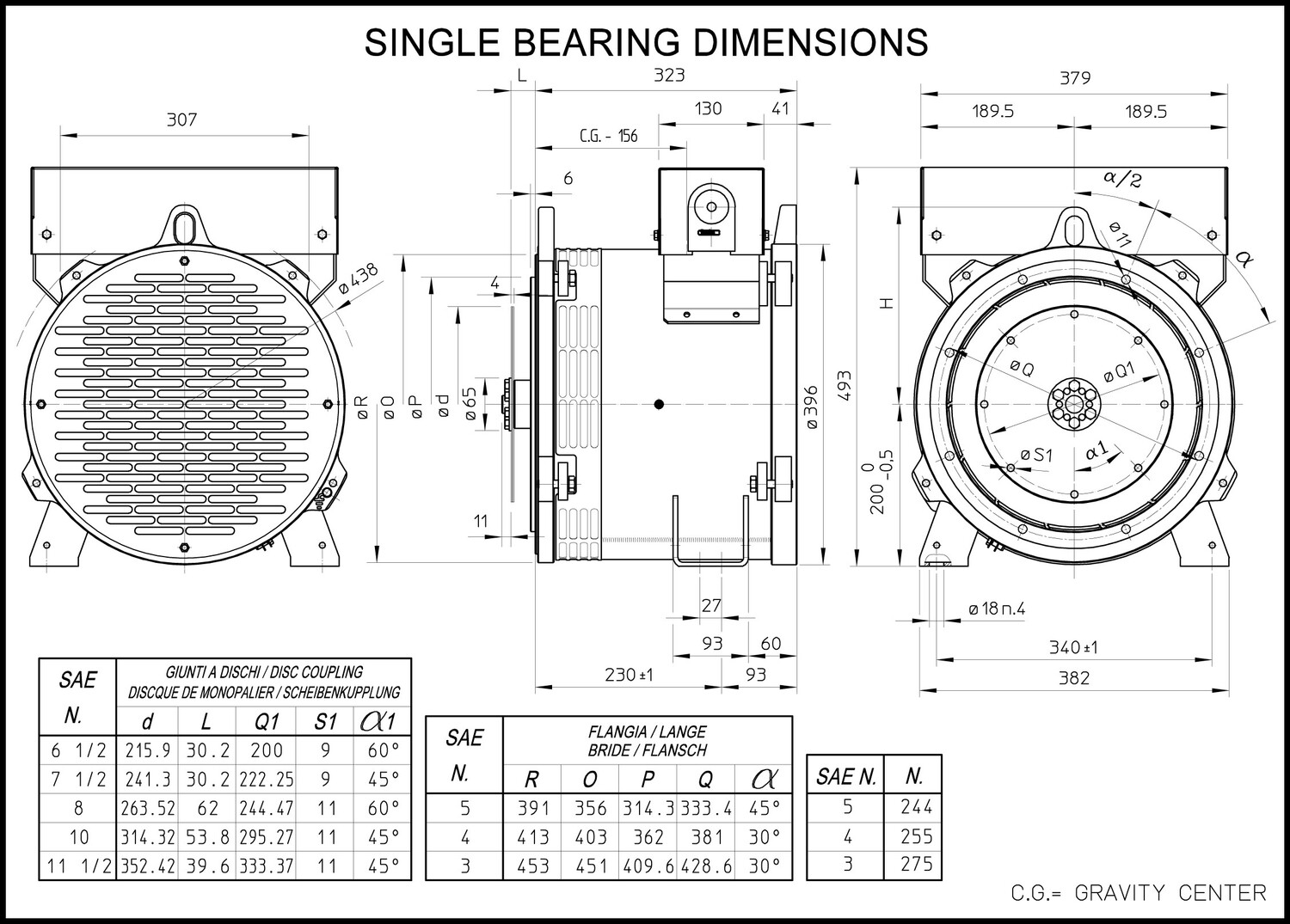

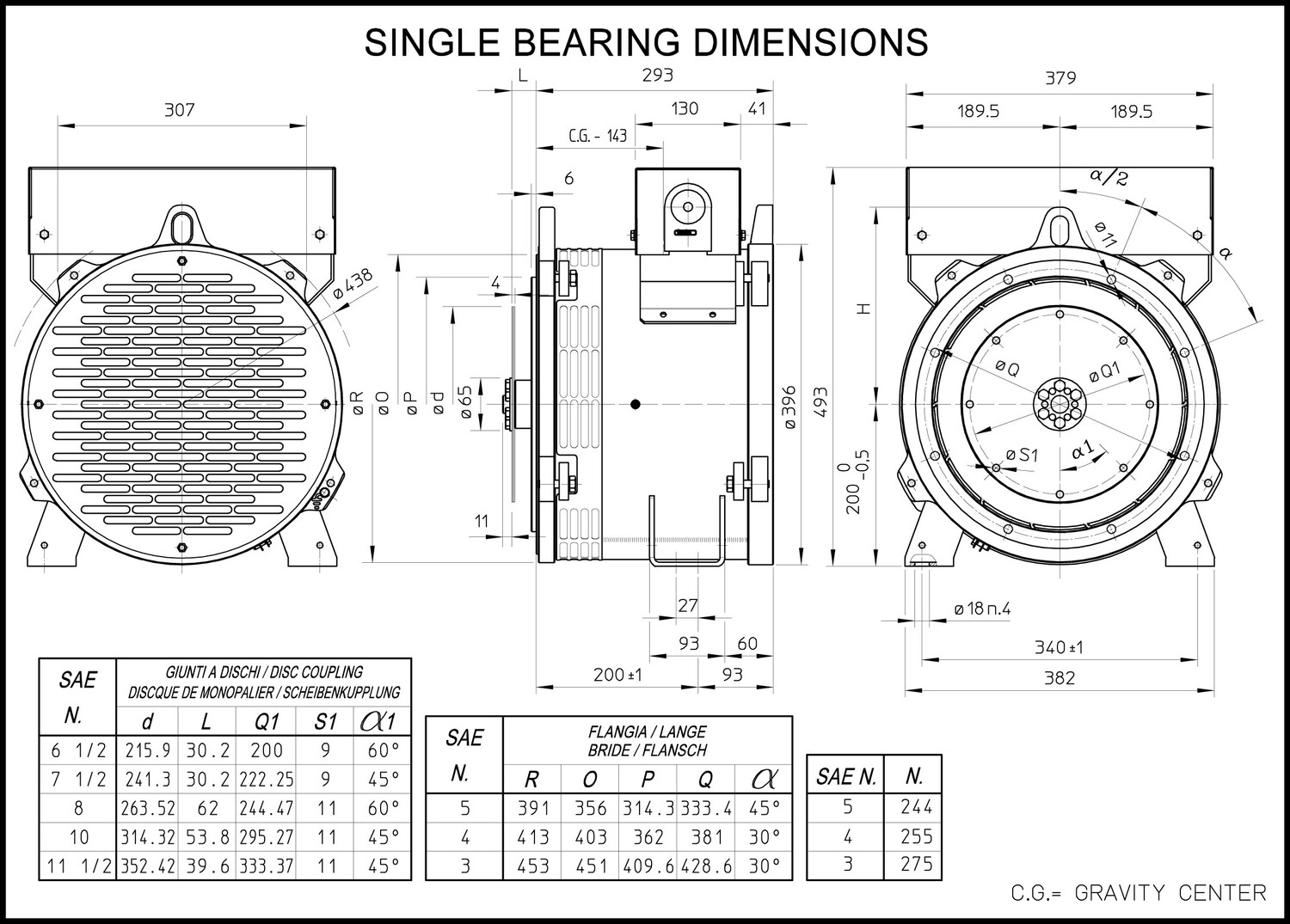

Overall Dimensions Drawings

NPE31-A/2

NPE31-B/2

NPE31-C/2

NPE31-D/2

NPE31-E/2

NPE31-F/2
