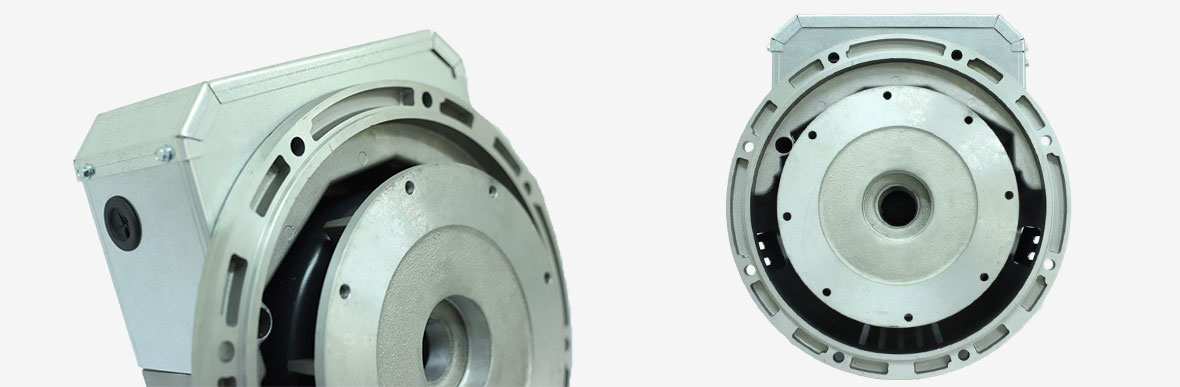

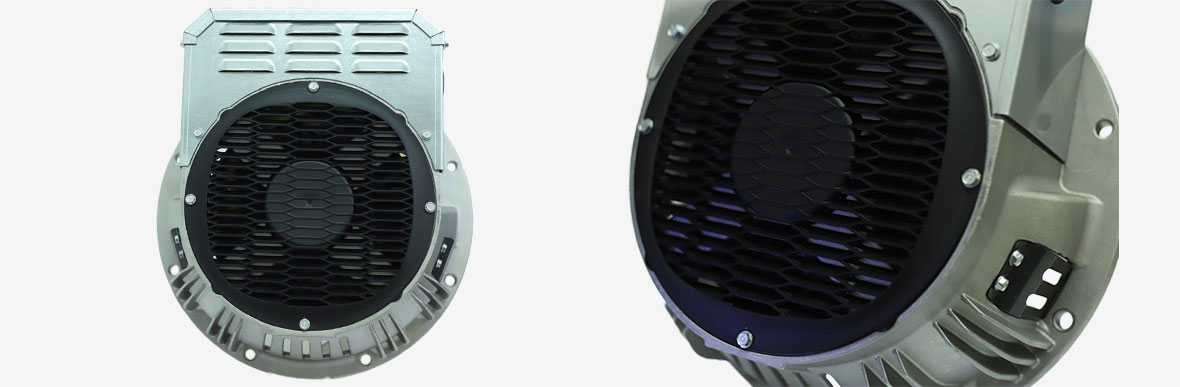

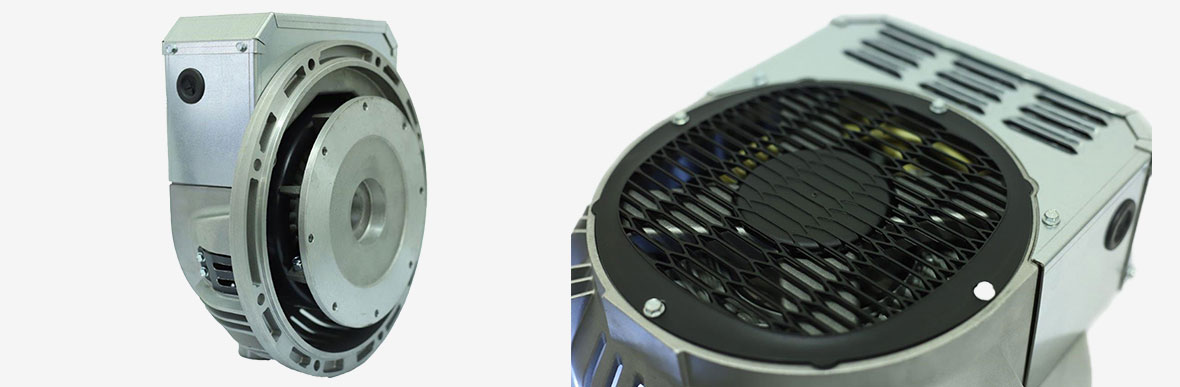

OUR PERMANENT MAGNET GENERATORS (PMG) RANGE

A permanent magnet generator (PMG) allows significant benefits instead of a traditional alternator systems. The physical advantages are the reduction of weight and length while the electronic advantages consist in the use of advanced technology designed to maximize the efficiency of the entire energy system.
ModelsAC VERSIONDC VERSION 14-28 VDCDC VERSION 48-56 VDC
Power [kW]Speed RangePower [kW]Speed RangePower [kW]Speed Range
P.F.1 @ max rpm[rpm]P.F.1 @ max rpm[rpm]P.F.1 @ max rpm[rpm]
 PM3G - Lento31500-250021500-250031500-2500
 PM3G - Medio5.52500-36002500-36004.52500-3600
 PM5G - 42 Lento61500-2500 1500-2500 3.51500-2500
 PM5G - 42 Medio82500-360052500-360062500-3600
 PM5G - 60 Lento81500-250051500-250061500-2500
 PM5G - 60 Medio102500-360072500-3600102500-3600
 PM5G - 80 Lento101500-250071500-2500101500-2500
 PM5G - 80 Medio152500-3600102500-3600152500-3600
 PM5G - 100 Lento151500-2500101500-2500151500-2500
 PM5G - 100 Medio202500-3600152500-3600202500-3600
 PM7G - 40 Lento101900-250081900-2500101900-2500
 PM7G - 40 Medio152500-3600102500-3600152500-3600
 PM7G - 60 Lento151900-2500101900-2500151900-2500
 PM7G - 60 Medio202500-3600152500-3600202500-3600
 PM7G - 80 Lento251900-2500151900-2500201900-2500
 PM7G - 80 Medio352500-3600252500-3600302500-3600



Coupling Form
  J609B SAE5 SAE4 SAE3
PM3G OPTIONAL -  -
PM5G OPTIONAL  OPTIONAL OPTIONAL
PM7G - -

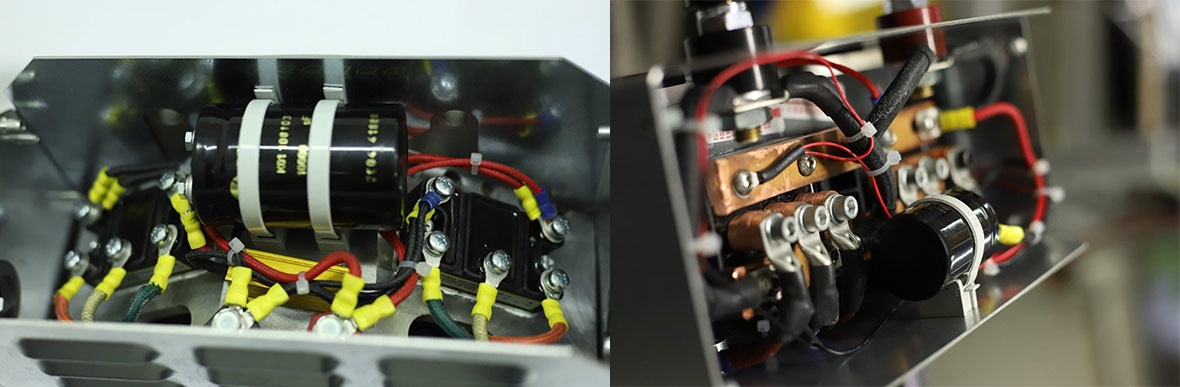

DC PERMANENT MAGNET GENERATORS - FIXED SPEED

The DC Fixed Permanent Magnet Generator is designed for lamps used on headlights, such as high efficiency LEDs and has an integrated rectifier bridge.

The determinable fixed speed is selected according to the application and the DC voltage levels can be adapted according to different operating requirements. The parameters of the alternator are then adapted to the customer's needs.

The PMG system offers several advantages over more traditional AC systems:

  • Smaller size
  • Greater efficiency
  • Speeds other than synchronous ones can be selected to optimize engine power, fuel consumption and voltage output
  • High power density that reduces weight (for both the alternator and the engine)
  • Greater reliability of the traditional excitation winding removal system


DC PERMANENT MAGNET GENERATORS - VARIABLE SPEED

Our permanent magnet generator when used with variable speed causes both voltage and power to be a function of motor speed

Using a speed load controller, the voltage can be kept in the load range.

Advantages:

  • The output voltage of the PMG is stable in the load range
  • The full kW rated power of PMG is available for use
  • The rated motor power can be optimized
  • Greater efficiency is achieved
  • The risk of high no-load voltage is reduced


AC PERMANENT MAGNET GENERATORS

Our permanent magnet generator has an EMC filter built into a single phase inverter system. Harmonic distortion is very low (<2%) and creates an excellent waveform, ensuring the safe operation of sensitive modern electronic equipment. Power density is increased using reverse technology, where traditional winding systems and the central stator are replaced by an external rotor. This maximizes the potential of the magnets used. The inverter produces a pure sinusoidal wave suitable for the sensitivity of the electronics and is supplied with an optional remote display panel. The inverter has several built-in protections, such as short circuit protection, overload protection, overheating protection and has an integrated service port and an auxiliary connector with CAN support.

  • The inverters are available in "open version" (without housing) and "box version".
  • The open versions are suitable to be inserted directly into a generator box with engine and alternator.
  • The box versions are suitable where it is not possible or useful to have a complete generator inside a box. They are equipped with forced ventilation in order to guarantee a cooling of the board.
  • It is possible to connect the output of two inverters in parallel (via an external synchronism cable) to obtain double power
 ResinatedWith ventilated box Parallel VersionSplitphase
4 kVA-
6 kVA-
10 kVA-
15 kVA
20 kVA



DC/AC Converter (input 28 volt – output 230 volt)  2 kVA

Optional:
USB TO CAN ADAPTER (Inverter programming)
Inverter display panel
Motor Control Board







VARIABLE SPEED GENERATOR CONTROLLER

The Speed Load Control Mecc Alte Engine Controller (MEC) 12-75 VDC quickly and accurately adjusts engine speed, controlling the generators electrical load by controlling generator voltage, not actual speed.

This variable speed operation results in decreased noise, significantly reduces fuel consumption and increases engine life.

The MEC 12-75 VDC, when connected to a proportional actuator and supplied with voltage signal from a DC generator, uses DC voltage to control speed instead of actual engine speed.

It supports a wide variety of small engines.

The MEC 12-75 VDC governor is easily paired with GAC ALN-, ALR-, or 120-Series actuators and supports both 12 and 24 V DC.
