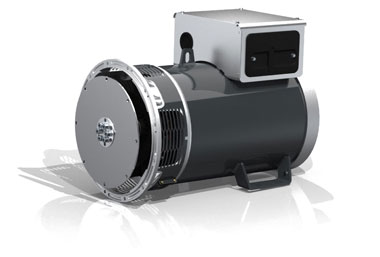

工业 / ECP32C 4 极(单相专用)

ECP32

4 极发电机
1 单相专用

The ECP32 C-Type range has many product features designed into the alternator.
C-Type alternators make the most of energy conversion to produce the maximum power to size ratio.
C-Type is now one of the simplest alternators to assemble, integrate, configure and maintain with OEM equipment.
Our aim was to deliver maximum power from the smallest, lightest and strongest alternators and our designers have lavished the C-Type with much more flexibility.
The entire series is manufactured according to, and complies with, the most common specifications such as CEI 2-3, IEC 34-1, EN 60034-1, VDE 0530, BS 4999-5000, CAN/ CSA-C22.2 No14-95- No100-95.

Find out more   Accessories

般特征

ECP32C 4 极(单相专用)
功率范围 (kVA) 28 - 58
线圈代码 S4246B3
电极 4
调节器 DSR
超速 (RPM) 2250
防护等级 IP23
高度 (m) 0-1000
型号 功率范围 (kVA)
单相
ECP32 1S4 C 28 - 36
ECP32 2S4 C 32 - 41
ECP32 1M4 C 36 - 44
ECP32 2M4 C 40 - 48
ECP32 1L4 C 46 - 55
ECP32 2L4 C 48 - 58


技术资料

DDS - 动态数据支持

根据您的规格要求,创建自己的个性化技术数据表。

从此处获取



外形尺寸图纸

ECP32 1S4 C

ECP32 2S4 C

ECP32 1M4 C

ECP32 2M4 C

ECP32 1L4 C

ECP32 2L4 C
