ECO46MV 4 极发电机
般特征
| ECO46MV 4 A 6.0kV pitch 2/3 | |
|---|---|
| 功率范围 (kVA) | 1500 - 3000 |
| 线圈代码 | T66M5S3 |
| 电极 | 4 |
| 调节器 | M3Ks-HD |
| 超速 (RPM) | 2250 |
| 防护等级 | IP23 |
| 高度 (m) | 0-1000 |
| 型号 | 功率范围 (kVA) |
|---|---|
| 三相 | |
| ECO46MV 1L4 A | 1500 - 1800 |
| ECO46MV 2L4 A | 1650 - 1980 |
| ECO46MV 3L4 A | 1800 - 2160 |
| ECO46MV 1VL4 A | 2100 - 2520 |
| ECO46MV 2VL4 A | 2300 - 2760 |
| ECO46MV 3VL4 A | 2500 - 3000 |
技术资料
DDS - Dynamic Data Support
Create your own and personalized technical datasheet according to your specifications.

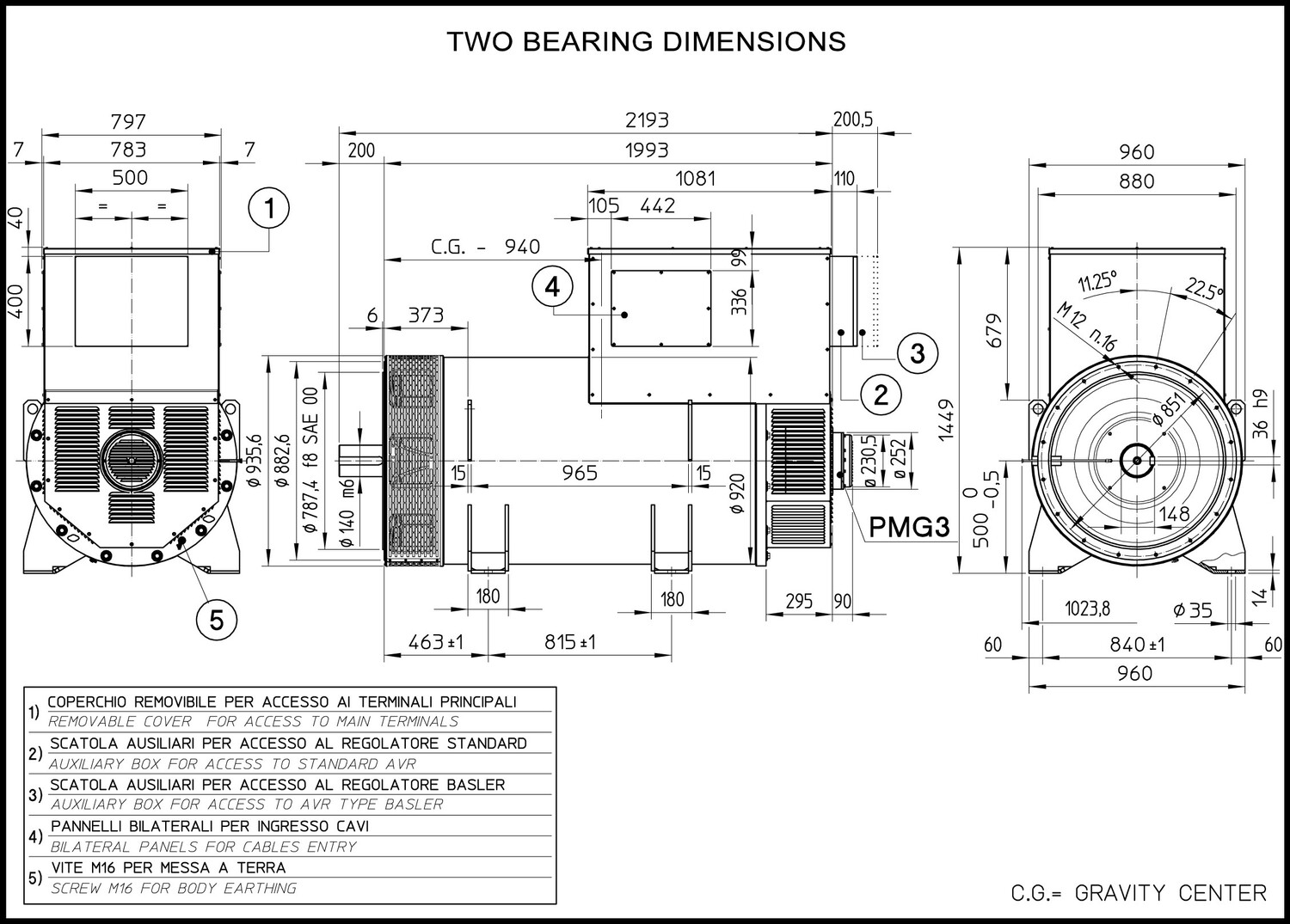

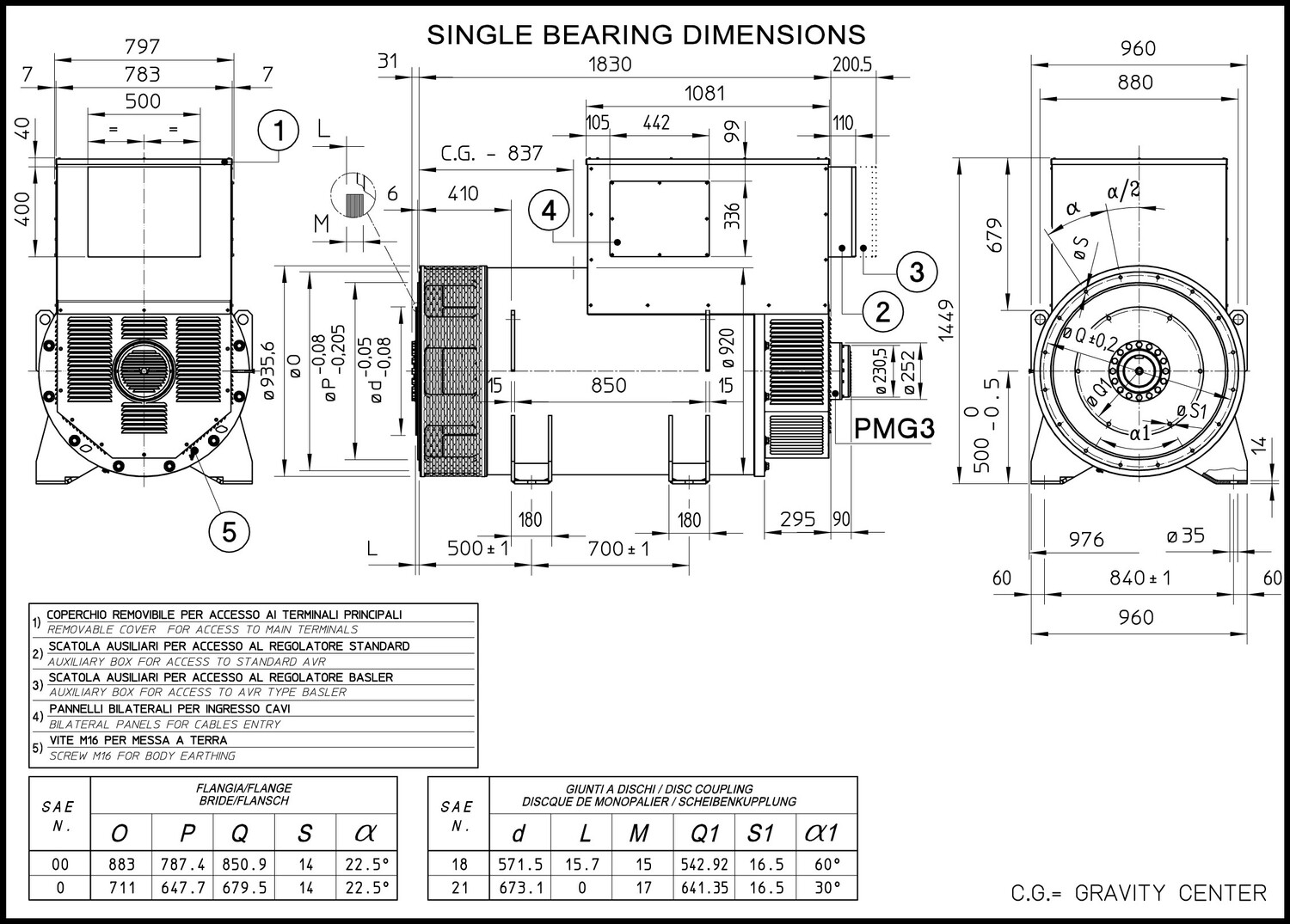

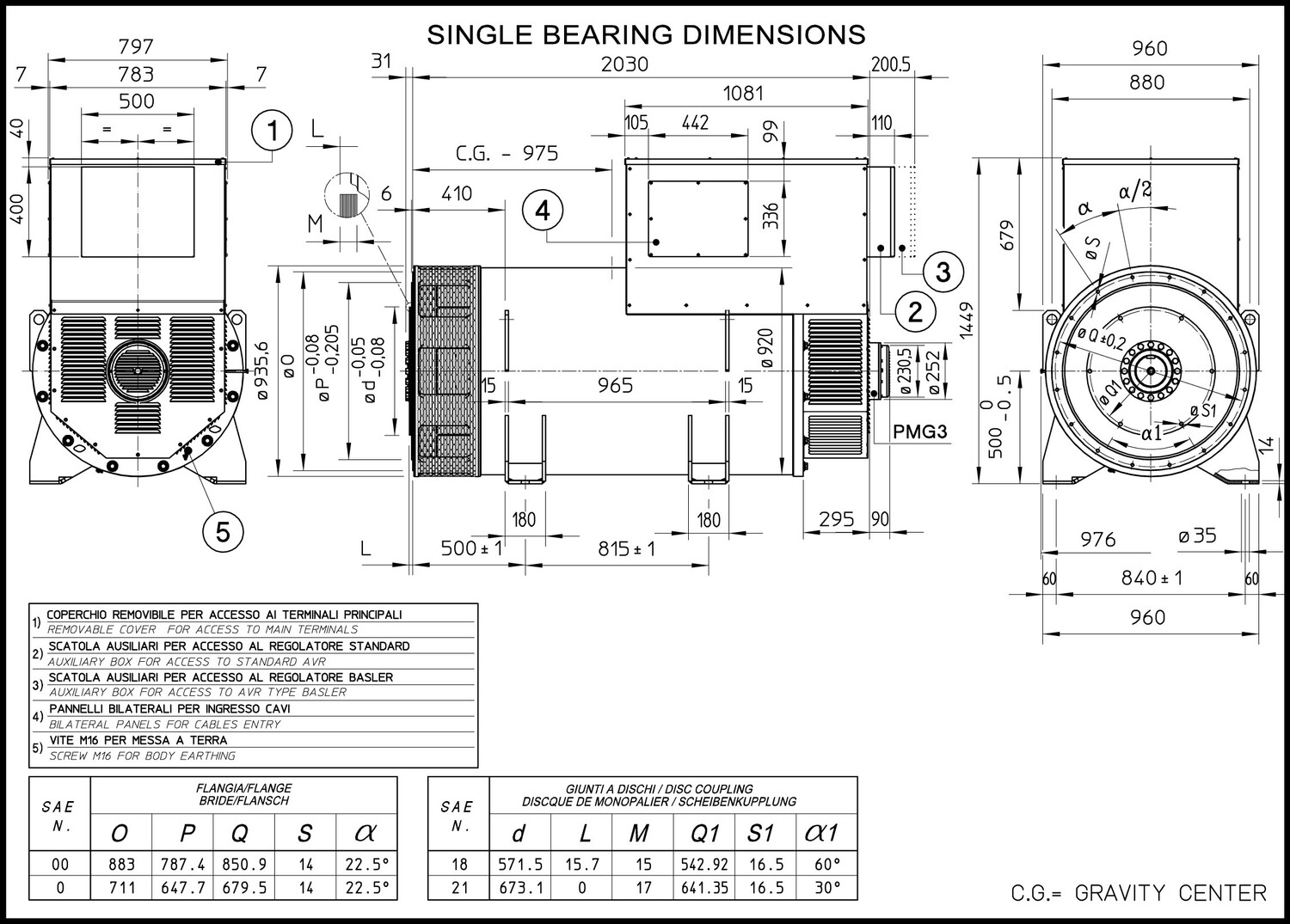

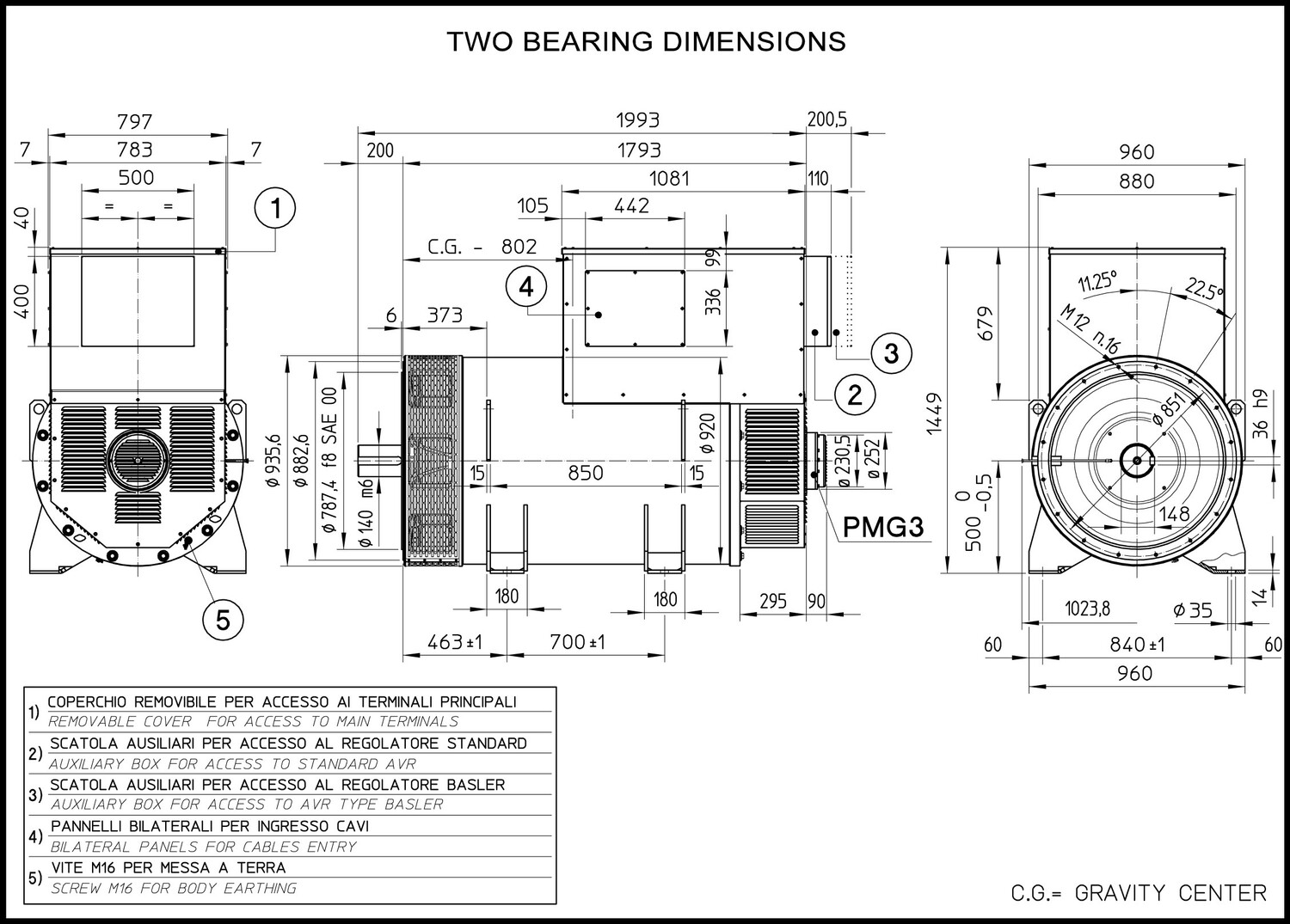

外形尺寸图纸
ECO46MV 1L4 A
ECO46MV 2L4 A
ECO46MV 3L4 A
ECO46MV 1VL4 A
ECO46MV 2VL4 A
ECO46MV 3VL4 A
