工业 / ECP3C 4 极

ECP3

4 极发电机

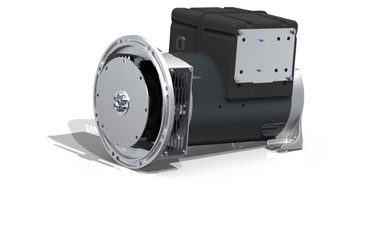

The ECP3 C-Type range has many product features designed into the alternator.
C-Type alternators make the most of energy conversion to produce the maximum power to size ratio.
C-Type is now one of the simplest alternators to assemble, integrate, configure and maintain with OEM equipment.
Our aim was to deliver maximum power from the smallest, lightest and strongest alternators
and our designers have lavished the C-Type with much more flexibility.
The entire series is manufactured according to, and complies with, the most common specifications such as CEI 2-3, IEC 34-1, EN 60034-1, VDE 0530, BS 4999-5000, CAN/ CSA-C22.2 No14-95- No100-95.

Find out more

般特征

ECP3C 4 极
功率范围 (kVA)6.5 - 18
线圈代码T0405S3
电极4
调节器DSR
超速 (RPM)2250
防护等级IP23
高度 (m)0-1000
型号功率范围 (kVA)
三相
ECP3 1S4 C6.5 - 7.8
ECP3 2S4 C8 - 9.6
ECP3 1L4 C11 - 13.2
ECP3 2L4 C13.5 - 16.2
ECP3 3L4 C15 - 18


技术资料

DDS - 动态数据支持

根据您的规格要求,创建自己的个性化技术数据表。

从此处获取



外形尺寸图纸

ECP3 1S4 C

ECP3 2S4 C

ECP3 1L4 C

ECP3 2L4 C

ECP3 3L4 C
